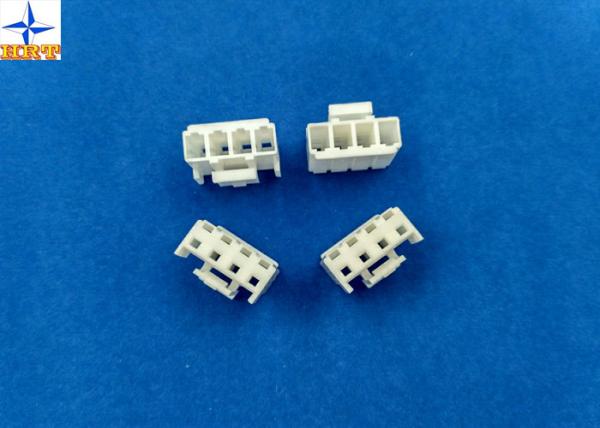

SVH-21T Terminals Compact Battery Connectors Single Row VH Crimp Housing
SVH-21T Terminals Compact Battery Connectors Single Row VH Crimp Housing
SVH-21T Terminals Compact Battery Connectors Single Row VH Crimp Housing
SVH-21T Terminals Compact Battery Connectors Single Row VH Crimp Housing
SVH-21T Terminals Compact Battery Connectors Single Row VH Crimp Housing
SVH-21T Terminals Compact Battery Connectors Single Row VH Crimp Housing
Specifications
Brand Name :
HRT
Model Number :
A3961HA-NP
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
USD0.005 to 0.008 per pcs
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
28 million pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Bag with outside paper carton
Circuits :
2 pins to 15 pins
Mating lock :
With
Terminal material :
Brass or phosphor bronze
Wire Insulation Diameter :
AWG18# to 22#
Finish terminal :
tin-plated
Suitable terminals :
3.00mm Max
Description

3.96mm pitch wire to board also battery terminal connectors A type precise alternatives

1, The product specification

Through the next datasheet, you will have a good understanding for our product. Besides, the interrelated

product of this part like terminals, wafer(right angle or vertical) can be offered by us too.

Basic size information
Color White
Material Nylon66
Row Single
Pitch 3.96mm
Flammability UL94V-0
Wire range A3961T series
Terminal processing method E-stamping before tin-plated
Part No. A3961HA-NP
Electrical properties
Current Rating 7A AC, DC
Voltage Rating 250V AC, DC
Contact Resistance 10mΩ Max
Insulation Resistance 1000mΩ min
Withstanding Voltage 1500V AC/minute
Mechanical properties
Temperature range -25℃ to 85 ℃
Other information please kindly check the following picture.

2, Related drawing and report

You can get more characteristics from below picture, through this, you can know our product very clearly.

SVH-21T Terminals Compact Battery Connectors Single Row VH Crimp Housing

SVH-21T Terminals Compact Battery Connectors Single Row VH Crimp Housing

Mechanical Performance

Test Description Procedure Requirement
5-1 Actuator Insertion & Withdrawal Force Insert and withdraw actuator at the speed rate of 25±3mm / minute. Refer to paragraph 7
5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#18 9.0 kgf (Min.)
AWG#20 6.0 kgf (Min.)
AWG#22 4.0 kgf (Min.)
5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.50 kgf (Max.)
5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 3.00 kgf (Min.)
5-5 Pin Retention Force Apply axial pull out force at the speed rate of 25±3mm / minute. 3.00 kgf (Min.)
5-6 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 20mΩ (Max.)
5-7 Vibration

Amplitude: 1.5mm P-P

Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

(Based upon MIL-STD-202 Method 201A)

Appearance No Damage.

Contact Resistance 20mΩ (Max.)

Discontinuity 1 μsec.(Max.)
5-8 Physical Shock 490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)


3, Product's featurs

This small, field-proven connector for printed circuit boards is reliable and has a large current carrying capacity. It can be used with a wide variety of signal, power supply, and output circuits that appear in
consumer electronic products.

· Proven box contact


· Compact connector with a large capacity


· Secure contact and mounting

4, Our strength

  1. Well and high quality control
  2. Prompt delivery
  3. Small order acceptable
  4. Perfect craft procedure
  5. Customer's designs are welcome
