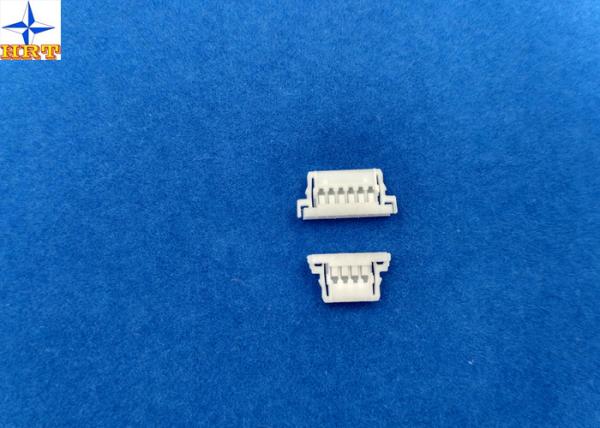

1.25mm Pitch Usb Circuit Board Wire Connectors With Lock Structure PA66 / LCP
1.25mm Pitch Usb Circuit Board Wire Connectors With Lock Structure PA66 / LCP
1.25mm Pitch Usb Circuit Board Wire Connectors With Lock Structure PA66 / LCP
1.25mm Pitch Usb Circuit Board Wire Connectors With Lock Structure PA66 / LCP
1.25mm Pitch Usb Circuit Board Wire Connectors With Lock Structure PA66 / LCP
1.25mm Pitch Usb Circuit Board Wire Connectors With Lock Structure PA66 / LCP
Specifications
Brand Name :
HRT
Model Number :
A1254HA-NP
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
Negotiated
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
28 million pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Bag with outside carton
Category :
Crimp Housings
Application :
Power, Wire-to-Board
Material :
PA66/LCP
Flammability :
UL94V-0
Wire range :
AWG28# to 32#
Gender :
Female
Description

1.25mm Pitch Circuit Board Wire Connectors With Lock Structure PA66 / LCP Material

1, The specification of the product including basic size information, electrical and mechanical properties.

Basic size information
Suitable terminals A1007T series
Suitable wafer A1254WRA series
Pitch 1.25mm
Color white or cream
Row single
Lock to mating part with
Circuits 4pin or 6pin
Wire insulation diameter 0.90mm Max.
Terminal materials phosphor bronze, gold-flash
Electrical properties
Current Rating 1A AC, DC
Voltage Rating 125V AC, DC
Contact Resistance 20mΩ Max
Insulation Resistance 100mΩ min
Withstanding Voltage 500V AC/minute
Mechanical properties
Temperature range -25℃ to 85 ℃
Other information please kindly check the following picture.

2, Related drawing and report

Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.

1.25mm Pitch Usb Circuit Board Wire Connectors With Lock Structure PA66 / LCP1.25mm Pitch Usb Circuit Board Wire Connectors With Lock Structure PA66 / LCP1.25mm Pitch Usb Circuit Board Wire Connectors With Lock Structure PA66 / LCP1.25mm Pitch Usb Circuit Board Wire Connectors With Lock Structure PA66 / LCP1.25mm Pitch Usb Circuit Board Wire Connectors With Lock Structure PA66 / LCP


3, HRT main product show

You can get more series parts from the below picture, it's our main product picture from our different type.

1.25mm Pitch Usb Circuit Board Wire Connectors With Lock Structure PA66 / LCP
