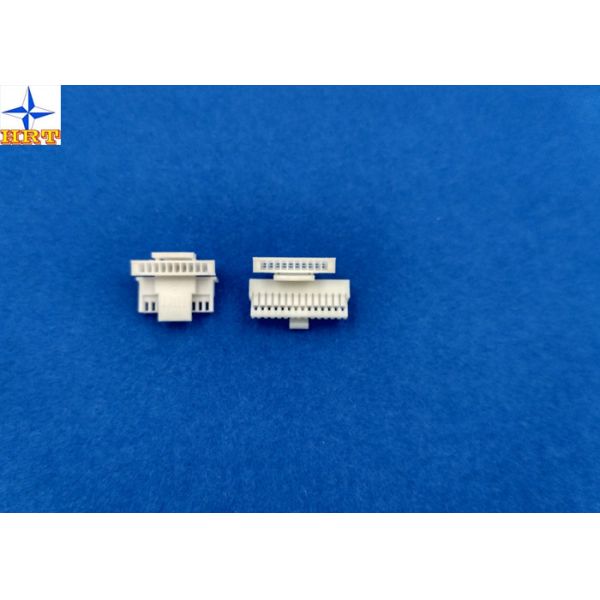

CI14 Wire To Board Connectors Pitch 1.00mm 180 degree Single Row With Lock
CI14 Wire To Board Connectors Pitch 1.00mm 180 degree Single Row With Lock
CI14 Wire To Board Connectors Pitch 1.00mm 180 degree Single Row With Lock
CI14 Wire To Board Connectors Pitch 1.00mm 180 degree Single Row With Lock
CI14 Wire To Board Connectors Pitch 1.00mm 180 degree Single Row With Lock
CI14 Wire To Board Connectors Pitch 1.00mm 180 degree Single Row With Lock
Specifications
Brand Name :
HRT
Model Number :
A1017HA-NP
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
China
MOQ :
5000 PCS
Price :
Negotiated
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
1000 pcs per day
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Carton / Paper pots
Product Name :
A1017HA with lock wafer
Pitch :
1.00mm
Mates with :
A1017W series single row housing
Material :
wafer : PA9T Pin:Brass/Tin-plated
Circuits :
02 Pin to 20 Pin
Fire-protection rating :
UL 94V-0
Connector Type :
Wafer connnector
color :
white
Description

Wire to board connectors pitch 1.00mm 180°single row wafer with lock wafer connector

Description:

1.A1017series wafer have A1017WVA-NP A1017WRA-NP (single rowwafer mates with A1017series housing ) ,

2,Wafer materials: PA9T Pin : brass /Tin-plated Tab :brass/plated, Fire-protection rating are both UL 94-V-0 Minimum packing quantity is 500pcs/bag.

3.Wafer we have 2Pin to 20Pin,The daily production capacity is 20 to 30 KPCS.

Quality:

The world's xinpei Plastic& metal electronic Co.,Ltd.to provide customers with high efficiency service responsibility, forge ahead, the endess pursuit

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
step are doing by ourself. So we can control the quality.

1. Manufactured under strict controls.

2. ISO 9001:2008

3. UL Certification

4. Reach Cetitifaction

5. RoHS compliance

6. OEM for PULSE

7. Active Environmental policy

8. Every module tested 3times (not just batch tested)

Test Description Procedure Requirement

Contact Resistance

 Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 20mΩ (Max.)
Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 1000MΩ (Min.)
Dielectric Withstanding Voltage Mate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301)) No Breakdown.
Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. 5mΩ (Max.)

Electrical:

Current rated
1A AC/DC maximum
Voltage rated 120V AC/DC
Withstand voltage 500V AC/minute
Insulation resistance 100MΩ min
Contact resistance 20MΩ max
Operating temperature -25 - 85°C

Drawing:

CI14 Wire To Board Connectors Pitch 1.00mm 180 degree Single Row With Lock

CI14 Wire To Board Connectors Pitch 1.00mm 180 degree Single Row With Lock

CI14 Wire To Board Connectors Pitch 1.00mm 180 degree Single Row With Lock

Production&Testing

HRT have more than 30 units automation equipments to product as possible
HRT Every Magnetic RJ45 tested 3times (not just batch tested)
HRT Every SMT part used Automation testing and packing.

CI14 Wire To Board Connectors Pitch 1.00mm 180 degree Single Row With Lock

Punching

Service:

Our company for the purpose of "arduous pioneering, pure devotees of" "scientific management ,quality first ,service ,reputation first" ,and continuously improve product quality and perfect service , high-efficiency business management ,to provide customer with quality products and satisfactory service .

HRT Offer good pre-sales & after-sales service &Strong technical support

1. New Project: Strong technical and ideal support your new design

2. Existing projects: Try to help customer to save the cost to offer the good quality product and save

3. time.

4. Free Samples:3-5 PCS of each part number

5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

6. Customer complaint:24-48 hours reply 8D report

7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,,or repair

8. kits if customers are not satisfied)
