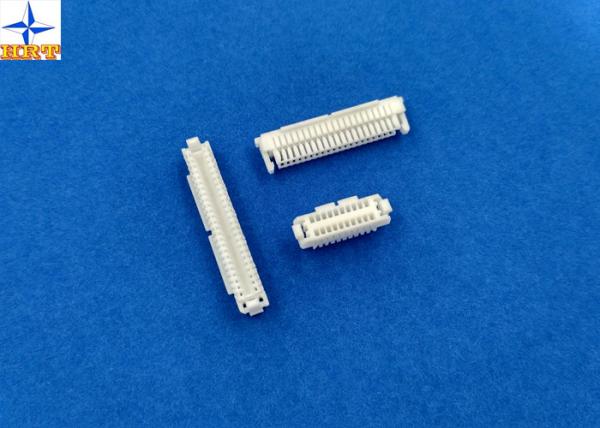

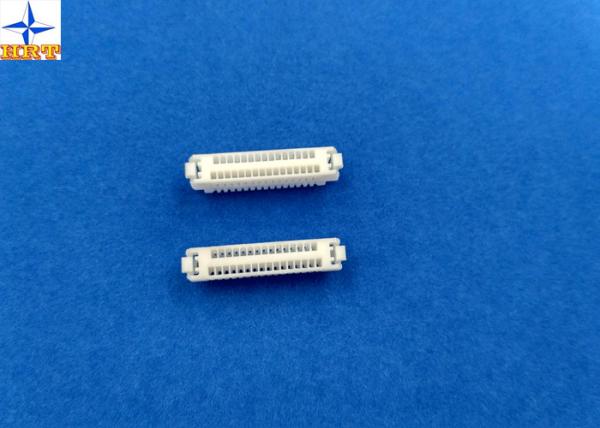

White 1.00mm Pitch Wire To Board Connectors Nylon66 Female Gender SHLD
White 1.00mm Pitch Wire To Board Connectors Nylon66 Female Gender SHLD
White 1.00mm Pitch Wire To Board Connectors Nylon66 Female Gender SHLD
White 1.00mm Pitch Wire To Board Connectors Nylon66 Female Gender SHLD
White 1.00mm Pitch Wire To Board Connectors Nylon66 Female Gender SHLD
White 1.00mm Pitch Wire To Board Connectors Nylon66 Female Gender SHLD
Specifications
Brand Name :
HRT
Model Number :
A1002HA-2XNP
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
negotiated
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
28 million pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Reel, Tube(Pipe), Tape, Bag or as required.
Category :
Wire housing
Suitable terminal :
A1002T
Material :
Nylon66 UL94V-0
Wire range :
AWG26# to 28#
Gender :
Female
Positions :
21 or 31 circuits
Description

1, Product's specification details

Basic size information
Color White
Pitch 1.0mm
Housing Material Nylon66 UL94V-0
Application signal, wire to board
Wire Insulation Diameter 0.80mm max.
Terminal processing method E-stamping before tin-plated or gold-flash
Electrical properties
Current Rating 1A AC, DC
Voltage Rating 50V AC, DC
Contact Resistance 30mΩ Max
Insulation Resistance 100mΩ min
Withstanding Voltage 500V AC/minute
Mechanical properties
Temperature range -25℃ to 85 ℃
Terminal Insertion Force 0.50kgf (Max.)
Terminal/Housing Retention Force 0.50kgf (Min.)
Pin Retention Force 0.50kgf (Min.)
Other information please kindly check the following picture.


2, Introduction for this series products

Please kindly notice that the A1002 series product, if you can buy this product as a set, the price will be very reasonale and favorable.
1, Terminals:A1002T(tin-plated flash or gold-flash)

2, Housing: A1002H-NP & A1002HA-2XNP & A1002HA-2XNP new version


3, Relevant engineering drawing and test report
The next attachment is detailed product file for your reference, it will be helpful to you.

Dimension drawing

White 1.00mm Pitch Wire To Board Connectors Nylon66 Female Gender SHLD
White 1.00mm Pitch Wire To Board Connectors Nylon66 Female Gender SHLD




4, Application fied of our parts
This product are widely used in household appliance, computer, communication device. Because our defective rate is very low, so our parts are accepted by some famouse company which is with prestigious like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free. And you can have a direct cognition from below pictures.
White 1.00mm Pitch Wire To Board Connectors Nylon66 Female Gender SHLD

5, Payment terms and delivery way
Multipe and flexible payment terms and delivery way can be available by us, you can know this clearly through below pictures.
