11kw Kitchen Towel Toilet Paper Rewinding Machine 2400mm
11kw Kitchen Towel Toilet Paper Rewinding Machine 2400mm
11kw Kitchen Towel Toilet Paper Rewinding Machine 2400mm
11kw Kitchen Towel Toilet Paper Rewinding Machine 2400mm
11kw Kitchen Towel Toilet Paper Rewinding Machine 2400mm
11kw Kitchen Towel Toilet Paper Rewinding Machine 2400mm
Specifications
Place of Origin :
Fujian, China
Brand Name :
EAST
Certification :
ISO9001
Packaging Details :
wooden case
MOQ :
1 SET
Price :
$37000/set
Payment Terms :
L/C, T/T
Supply Ability :
20sets per month
Delivery Time :
35-40days
Model Number :
2400mm
Raw paper width :
2400mm(other size canbe specified
Marketing Type :
New Product 2022
warrantly :
1 year
Power :
11kw
Dimension(L*W*H) :
L10000*W3000*H2000MM
Weight :
12000KG
Jumbo roll layers :
1-3 plys ,14-30gsm toilet or kitchen towel
Jumbo roll inner Diameter :
3inches(76.2mm)
Perforation pitch :
4 anvil blades (115mm,230mm)
Port :
XIAMEN
Description

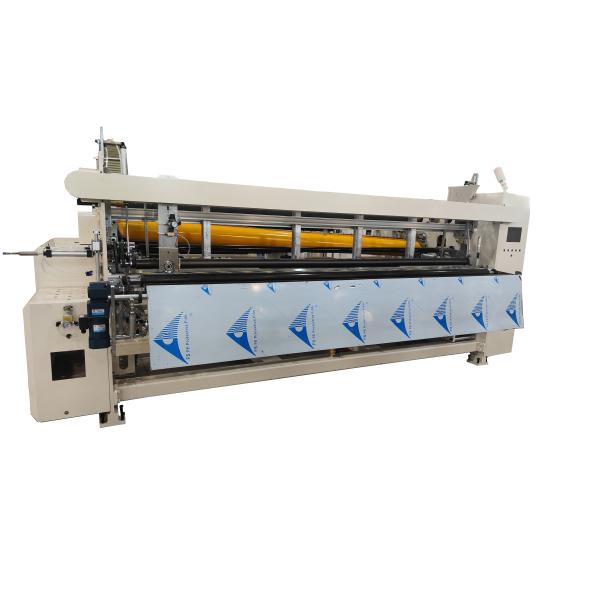

Fully Automatic Toilet Paper Roller And Kitchen Towel Paper Production Line


Machine Features

This production line consists of Fully Automatic Rewinding Machine /Color Glue Lamination.Log saw machineand Automatic Single Rolls Packing Machine ,It converts jumbo roll into the the finished rolls .The whole line work smoothly and run stable,saving the labor cost and reducing the labor strength ,it's best choice for the producing hygienic paper products.

1,This machine is used for making toilet.Adopt two set steel to rubber embossment rollers.
2,Distance is adjustable,meeting different requirements.
3,Automatic core feeding system ,automatic pushing the log after rewinding then rewinding the new log again .
4,Automatic edge -trimming .core feeding ,glue spraying and sealing synchronously in one time .Leaving 10-19mm tail,so reducing shortcut waste and save the cost.

Machine Technical Parameter


11kw Kitchen Towel Toilet Paper Rewinding Machine 2400mm


Machine Model


Full automatic toilet paper machine


Raw Material Width


2400mm


Finished Roll Diameter


φ90~φ280mm


Finished Roll Core Diameter


φ32~φ50mm


Raw Material Diameter


1100mm≤(Other size to be specified)


Raw Material Core Diameter


φ76mm(Other size to be specified)


Perforation pitch


4 Pieces of Anvil blades (115mm)Other size to be specified

Double Channel Log Saw Technical Parameter
11kw Kitchen Towel Toilet Paper Rewinding Machine 2400mm11kw Kitchen Towel Toilet Paper Rewinding Machine 2400mm

Modle Automatic Band Saw
Jumbo Roll Max Width 1750mm
Jumbo Roll Diameter105-115mm
Design Speed150cuts/min
Stable Speed100cuts
Grinding System Pneumatic Sherpen ,grinding time can ba set
Driving System Delta Servo Motor
Power 11KW
Dimension 6500*2500*2000mm
Blade Diameter610*4.7mm
Voltage 380v 50HZ
Weight 4500KG


Semi Automatic Multiple Rolls Packing Machine

11kw Kitchen Towel Toilet Paper Rewinding Machine 2400mm11kw Kitchen Towel Toilet Paper Rewinding Machine 2400mm

Speed

3-5pack/min

Power

2KW 220V 50Hz

Air supply

0.6 MPA(supplied by client)

Roll size

Customizable

Dimension

7000*1300*1400 mm

FAQ


Q: Can you provide the installation videos?
A: Yes, we will provide.
Q: What's the production time?
A: Generally it is 40-60 working days, it depends on your customized requirements.

Q: How long is your warranty?
A: One year of the machine, wearing parts not included.
Q: Can your company do customized machine?
A: Yes we can. We have 3 experienced engineers to support customized designs.
Q: How about your after-sales services?
A: We offer online instructions or onsite if needed.
