380V 50Hz 3Phases Toilet Paper Roll Machine 2150mm Kitchen Tissue Paper Machine
380V 50Hz 3Phases Toilet Paper Roll Machine 2150mm Kitchen Tissue Paper Machine
380V 50Hz 3Phases Toilet Paper Roll Machine 2150mm Kitchen Tissue Paper Machine
380V 50Hz 3Phases Toilet Paper Roll Machine 2150mm Kitchen Tissue Paper Machine
380V 50Hz 3Phases Toilet Paper Roll Machine 2150mm Kitchen Tissue Paper Machine
380V 50Hz 3Phases Toilet Paper Roll Machine 2150mm Kitchen Tissue Paper Machine
Specifications
Place of Origin :
Fujian, China
Brand Name :
EAST
Certification :
ISO9001
Packaging Details :
wooden case
MOQ :
1 set
Price :
$29000/set
Payment Terms :
L/C, T/T
Supply Ability :
20sets per month
Delivery Time :
35-40days
Model Number :
2150mm
Product Type :
Kitchen Paper
Processing Type :
Paper Slitting and Rewinding Machine
Production Capacity :
500~1000 sheet/min/Line, 180-200m/min
Voltage :
380V 50Hz 3Phases
max.rewinding diameter :
2150mm (width)
Power :
14-45kw
Applicable roll quantity :
12~16GSM(2ply/3 ply)tissue paper
Dimension(L*W*H) :
6.2*2.6*1.8m
Weight :
6-15T
Video outgoing-inspection :
Provided
Marketing Type :
New Product 2022
Core Components :
PLC, Pump
Warranty of core macine :
1 year
Port :
XIAMEN
Description

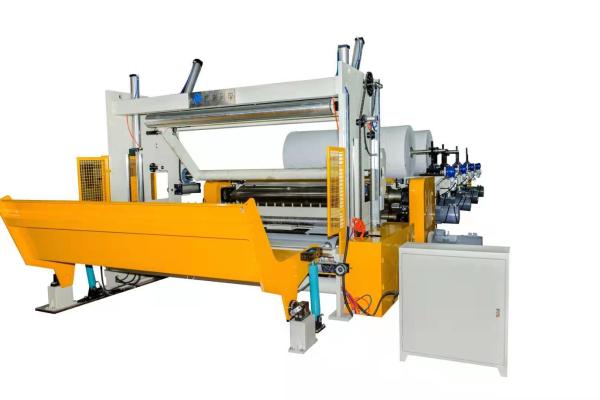

Automatic Toliet Roll Kitchen Tissue Paper Machine

Machine Features

1. Adopts PLC control the Asynchronous-Servo-Motor,the slave motors follow the main motor running,the web tension is stable while rewinding ,it avoids the wrinkle of tissue,perforating tolerance and tightness is different while use the chain and chain wheel transmission.

2. Easy to setting the web tension for each device on touche screen.

3. Adopts international advanced PLC programmable controlling technique,man-machine interface operation,data set and parametric fault shows on touch screen.

4. Automatic core loading and replacing.The logs are automatically pushed out after finishing winding and then start winding again.The cores can be adjusted to any size of cores within one minute.

5. This machine is for making toilet paper rolls,the whole structure is wall-type,which make machine running stable at high speed,and noiseless

Machine Technical Parameter

Machine model 1092 1575 2200 2400 2600 2800 3000
width of jumbo roll(mm) 1350 1750 2150 2350 2550 2650 2950

Performation distance

4anvil Blades (90-150mm)

Finished product diameter

90-280mm
Finished product core diameter 38-76mm
Production speed 200-230m/minute
Unwind stands 1 or 3stands (need to specified)
main power 14-45kw 380v 50hz 3phases
Dimension according to customers' requirement
weight 6-15T
edge embossing steel to steel embossing rollers
full embossing steel to rubber embossing rolers
option coreless rewinding
Vacuum control 1 set roots vacuum pump of 22KW(Taiwan)
Pneumatic system

Air pressure:> 4kg/cm2 (provided by buyer)

380V 50Hz 3Phases Toilet Paper Roll Machine 2150mm Kitchen Tissue Paper Machine

380V 50Hz 3Phases Toilet Paper Roll Machine 2150mm Kitchen Tissue Paper Machine

380V 50Hz 3Phases Toilet Paper Roll Machine 2150mm Kitchen Tissue Paper Machine

FAQ

Q: Can you provide the installation videos?

A: Yes, we will provide.


Q: What's the production time?

A: Generally it is 40-60 working days, it depends on your customized requirements.

Q: How long is your warranty?

A: One year of the machine, wearing parts not included.


Q: Can your company do customized machine?

A: Yes we can. We have 3 experienced engineers to support customized designs.


Q: How about your after-sales services?

A: We offer online instructions or onsite if needed.
