Russian Military ОНЦ-БС-1-4/10-Р12-1-В Female Straight Plug With Tail
Russian Military ОНЦ-БС-1-4/10-Р12-1-В Female Straight Plug With Tail
Russian Military ОНЦ-БС-1-4/10-Р12-1-В Female Straight Plug With Tail
Russian Military ОНЦ-БС-1-4/10-Р12-1-В Female Straight Plug With Tail
Specifications
Brand Name :
RAYMO
Model Number :
ОНЦ-БС-1-4/10-Р12-1-В, OHS-BC-1-4/10-P2-1-В
Certification :
RoHS, Reach, SGS, ISO:9001-2015
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1 Piece/Pieces
Price :
4.99-12.99USD/piece
Payment Terms :
Western Union, T/T , MoneyGram, D/P, D/A, MoneyGram, L/C
Supply Ability :
5000Pieces/ Week
Delivery Time :
7days
Packaging Details :
PE Bag & Carton
Prct name :
Russian ОНЦ-БС-1 series connector
Substitute to :
Amphenol ONTS-BS-1 series
Substitutes to :
China OHS-BC-1 series
Connector Type :
Female plug
Contact number :
4
Shell size :
10
Description

Russian military ОНЦ-БС-1-4/10-Р12-1-В female straight plug with tail Description

OHS series bayonet ultra-small connectors mainly adopt Russian connector technology.

The coupling mode of the connector is bayonet type. The socket has no tail attachment and the plug has a straight plastic tail attachment. At the same time, it can be matched and interchanged with the original parts of the Russian ОНЦ-БС-1(2) series and Amphenol ONTS-BS series.

Russian military ОНЦ-БС-1-4/10-Р12-1-В female straight plug with tail main features:

  • Compact Size: Ideal for applications where space is limited.

  • High Performance: Capable of handling high data rates and power levels despite its small size, making it suitable for a wide range of applications.

  • Durable Construction: Constructed of high-quality materials to ensure long service life, even in harsh environments.

  • Easy Installation: Enables quick and easy installation and disassembly, saving time and effort during assembly and maintenance.

Russian military ОНЦ-БС-1-4/10-Р12-1-В female straight plug with tail Parameter

Category

Military Circular Connectors

Part number

OHS-BC-1-7/12-B1-1-B

Connector Type

Receptacle

Orientation

Hermetic Square flange

Contact Type

Male Pin

Number of Positions

7

Fastening Type

Threaded

Mounting Type

Panel Mount

Contact Termination

Crimp

Protection Rating

IP67

Russian part number and Raymo part number reference for Russian military ОНЦ-БС-1-4/10-Р12-1-В female straight plug with tail

1- without tail model part number

Russia P/N China P/N Amphenol P/N
ОНЦ-БС-1-4/10-В1-1-В OHS-BC-1-4/10-B1-1-В ONTS-BS-1-4/10-V1-1-V
ОНЦ-БС-1-7/12-В1-1-В OHS-BC-1-7/12-B1-1-В ONTS-BS-1-7/12-V1-1-V
ОНЦ-БС-1-10/14-В1-1-В OHS-BC-1-10/14-B1-1-В ONTS-BS-1-10/14-V1-1-V
ОНЦ-БС-1-19/18-В1-1-В OHS-BC-1-19/18-B1-1-В ONTS-BS-1-19/18-V1-1-V
ОНЦ-БС-1-32/22-В1-1-В OHS-BC-1-32/22-B1-1-В ONTS-BS-1-32/22-V1-1-V
ОНЦ-БС-1-50/27-В1-1-В OHS-BC-1-50/27-B1-1-В ONTS-BS-1-50/27-V1-1-V

2- with unsheild sraight tail model part number

Russia P/N China P/N Amphenol P/N
ОНЦ-БС-1-4/10-Р12-1-В OHS-BC-1-4/10-P2-1-В ONTS-BS-1-4/10-R12-1-V
ОНЦ-БС-1-7/12-Р12-1-В OHS-BC-1-7/12-P2-1-В ONTS-BS-1-7/12-R12-1-V
ОНЦ-БС-1-10/14-Р12-1-В OHS-BC-1-10/14-P2-1-В ONTS-BS-1-10/14-R12-1-V
ОНЦ-БС-1-19/18-Р12-1-В OHS-BC-1-19/18-P2-1-В ONTS-BS-1-19/18-R12-1-V
ОНЦ-БС-1-32/22-Р12-1-В OHS-BC-1-32/22-P2-1-В ONTS-BS-1-32/22-R12-1-V
ОНЦ-БС-1-50/27-Р12-1-В OHS-BC-1-50/27-P2-1-В ONTS-BS-1-50/27-R12-1-V

Russian military ОНЦ-БС-1-4/10-Р12-1-В female straight plug with tail tecnical performance

Contact resistance

≤5mΩ

Insulation resistance

≥1000MΩ(in normal situation)

Ambient temperature

’-60℃~85℃

Vibration

1-5000HZ 20g

Shocking

once 1000g, repeatedly 100g

Contact diameter

ø1.0mm

Mechanical life

250times

Working time

5000hours

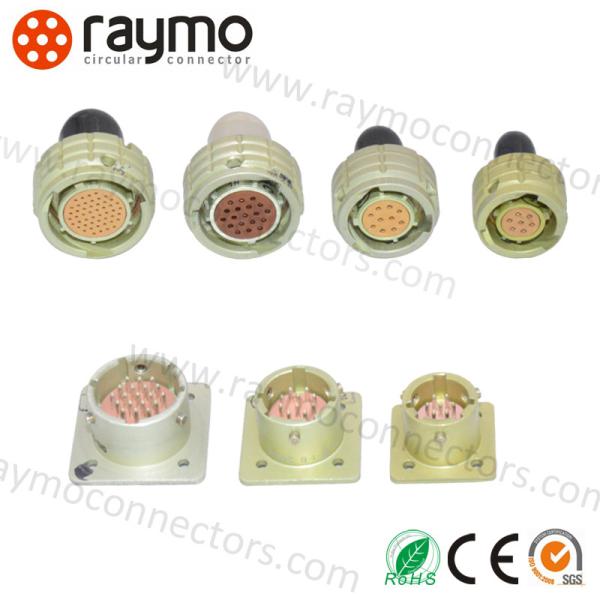

Russian military ОНЦ-БС-1-4/10-Р12-1-В female straight plug with tail pictures

Russian Military ОНЦ-БС-1-4/10-Р12-1-В Female Straight Plug With TailRussian Military ОНЦ-БС-1-4/10-Р12-1-В Female Straight Plug With Tail

Russian military ОНЦ-БС-1-4/10-Р12-1-В female straight plug with tail Application

This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military

Russian Military ОНЦ-БС-1-4/10-Р12-1-В Female Straight Plug With Tail
