PCB Push Pull Electrical Connectors Right Angle Male And Elbow Contacts Female
PCB Push Pull Electrical Connectors Right Angle Male And Elbow Contacts Female
PCB Push Pull Electrical Connectors Right Angle Male And Elbow Contacts Female
PCB Push Pull Electrical Connectors Right Angle Male And Elbow Contacts Female
Specifications
Brand Name :
MOCO
Model Number :
FHG ECG
Certification :
UL/CE/RoHs/ISO9001
Place of Origin :
Shezhen, China
MOQ :
10pcs
Payment Terms :
T/T, Paypal, , Western Union
Supply Ability :
200000pcs/month
Delivery Time :
7-10 working days after simple confirmation
Packaging Details :
Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)
Product name :
right angle male and elbow contacts female for PCB push pull circular connectors
number of pin :
8 pin
gender :
male & female
Salt Spray Corrosion :
>144 hr
IP Rating :
50
Material :
Chrome Plated Brass
Description

right angle male and elbow contacts female for PCB push pull circular connectors

Description

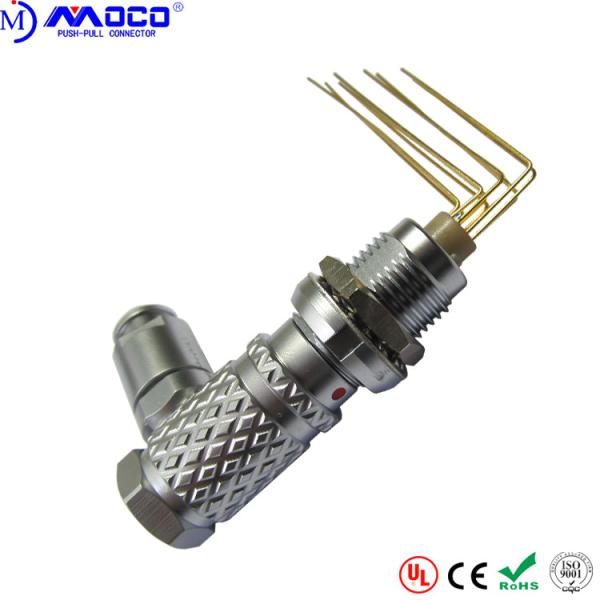

T3 plug is elbow(90°) plug and also a classical male circular connector. You can pick the right size you want according to your panel cut-outs and other parameters. Z2 is fixed socket with two nuts, elbow (90°) contact for PCB.

Main features:

-Security of the push-pull self-latching system;

-Solder or print contacts(straight or elbow);

-Keying system for connector alignment;

-360°screening for full EMC shielding;

Dimensions and Parameters

PCB Push Pull Electrical Connectors Right Angle Male And Elbow Contacts Female

PCB Push Pull Electrical Connectors Right Angle Male And Elbow Contacts Female

MOCO P / N FHG ECG
Insert 8 low voltage
Endurance (Shell) 5000 mating cycles
Temp (min) -40 deg
Temp (max) 200 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
Vibration 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [ 6 ms]
Salt Spray Corrosion >144 hr
IP Rating 50
Shielding (min) 75 dB (10 MHz)
P op (max) 60 bar (870 psi)

We also provide cable assembly service!

If you have any interests, please feel free to contact us!

Contact us today, we are looking forward to serving you!
