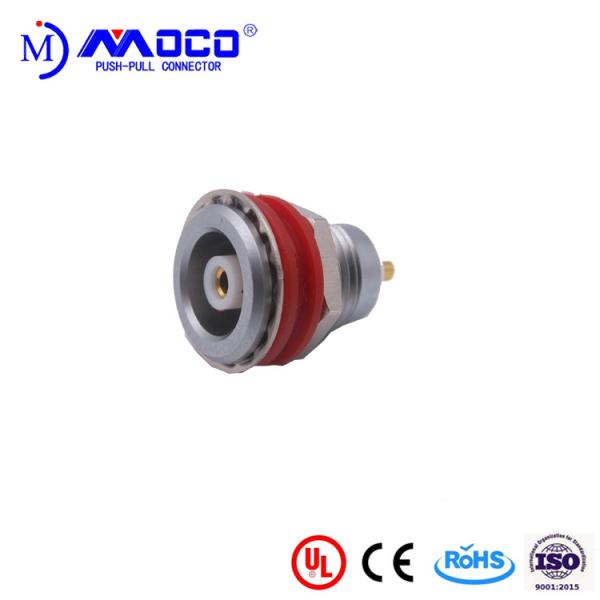

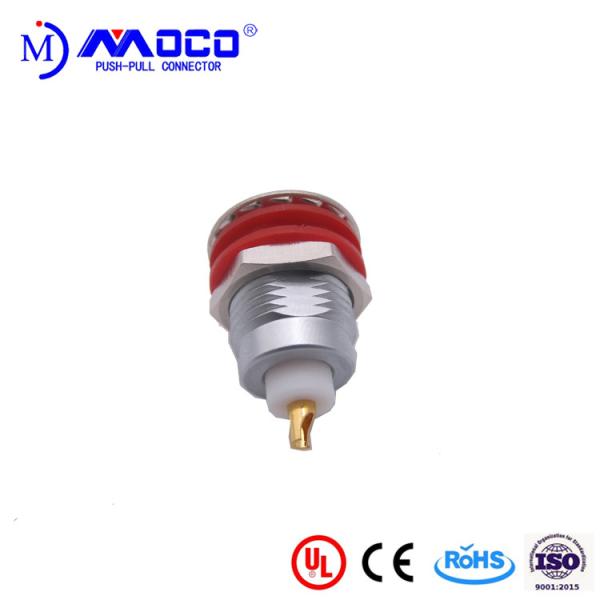

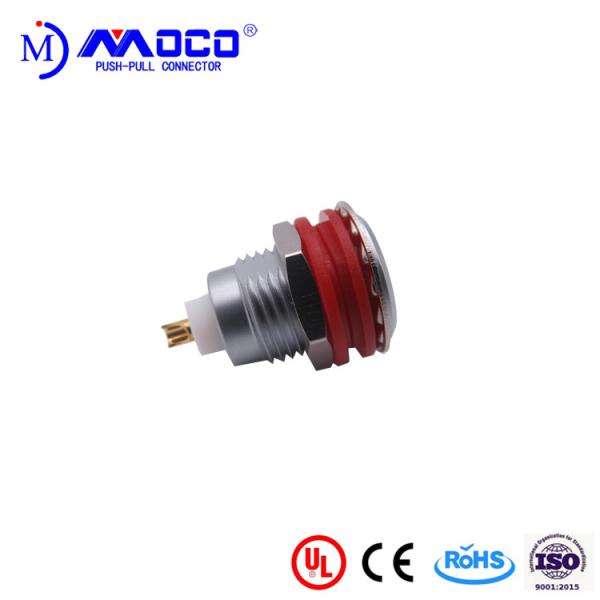

1S 120 Push Pull Electrical Connectors Receptacle With Red Crash Pad
1S 120 Push Pull Electrical Connectors Receptacle With Red Crash Pad
1S 120 Push Pull Electrical Connectors Receptacle With Red Crash Pad
1S 120 Push Pull Electrical Connectors Receptacle With Red Crash Pad
1S 120 Push Pull Electrical Connectors Receptacle With Red Crash Pad
1S 120 Push Pull Electrical Connectors Receptacle With Red Crash Pad
Specifications
Brand Name :
MOCO
Model Number :
ERA 1S 120
Certification :
UL/CE/RoHs/ISO9001
Place of Origin :
Shezhen, China
MOQ :
10pcs
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
200000pcs/month
Delivery Time :
7-10 working days after simple confirmation
Packaging Details :
Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)
Product Name :
compatible 1S 120 receptacle push pull electrical connectors with red crash pad
pin :
unipole
gender :
female
insulator material :
PPS
Shock Resistance :
100 g [ 6 ms]
Salt Spray Corrosion :
>144 hr
Description

compatible 1S 120 receptacle push pull electrical connectors with red crash pad

Main features:

- Security of the push-pull self-latching system;

- Solder or print contacts(straight or elbow);

- High packing density for space saving;

- Polarisation by stepped insert(half-moon) fitted with male and female contacts;

- 360°screening for full EMC shielding.

Z1 is a fixed socket, nut fixing , and is used in audio/video applications, Machine industry, medical applications, research instrumentation as well as test and measurement environments. The self-latching connectors are with stepped inserts for alignment (of multipole version).

Z1 with crash pad for quakeproof and moistureproof.

1S 120 Push Pull Electrical Connectors Receptacle With Red Crash Pad

MOCO P / N ERA 1S 120
Insert unipole low voltage
Configuration Brass (gold plated)
Insulator PPS
Endurance (Shell) 5000 mating cycles
Temp (min) -40 deg
Temp (max) 200 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
Vibration 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [ 6 ms]
Salt Spray Corrosion >144 hr
IP Rating 50
Shielding (min) 75 dB (10 MHz)
P op (max) 60 bar (870 psi)

We also provide cable assemblies services!

If you have any interests, please feel free to contact us!

Contact us today, we are looking forward to serving you!
