Specifications
Brand Name :
MOCO
Model Number :
FFA ECP
Certification :
UL/CE/RoHs/ISO9001
Place of Origin :
Shezhen, China
MOQ :
10pcs
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
200000pcs/month
Delivery Time :
7-10 working days after simple confirmation
Packaging Details :
Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)
Product Name :
S series male and female back panel mount quick release circular connectors
pin :
2- 6 pin
Endurance (Shell) :
5000 mating cycles
Vibration :
15 g [10 Hz - 2000 Hz]
Shock Resistance :
100 g [ 6 ms]
IP Rating :
50
Description

S series male and female back panel mount quick release circular connectors

Main features:

- Security of the push-pull self-latching system;

- Solder or print contacts(straight or elbow);

- High packing density for space saving;

- Polarisation by stepped insert(half-moon) fitted with male and female contacts;

- 360 ° screening for full EMC shielding.

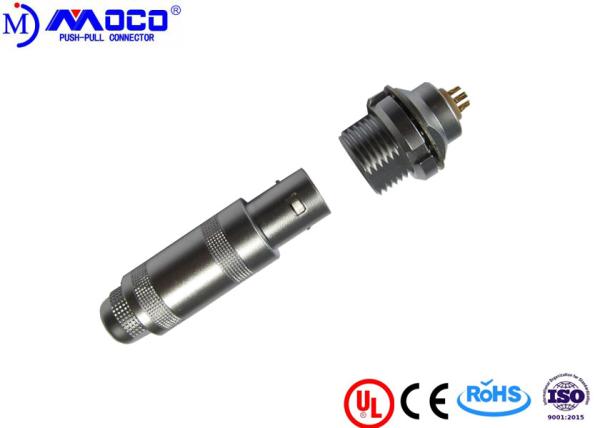

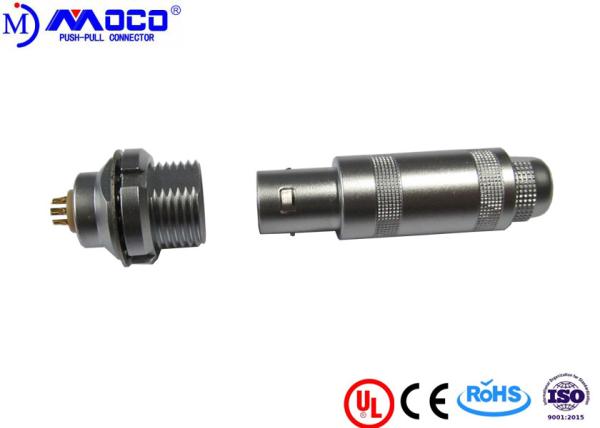

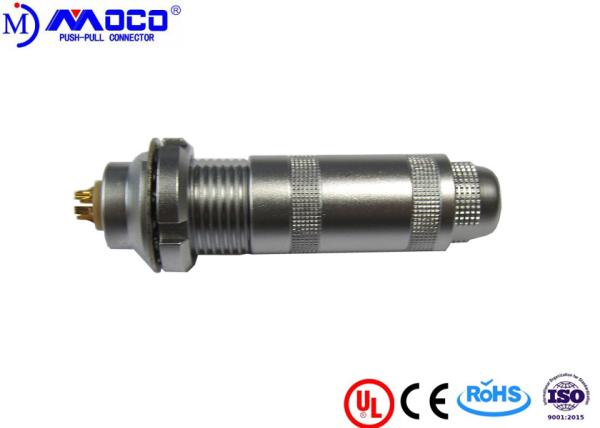

T1 is straight plug and Z3 is fixed socket, nut fixing , back panel mount, used in audio/video applications, Machine industry, medical applications, research instrumentation as well as test and measurement environments. The self-latching connectors are with stepped inserts for alignment (of multipole version).

Dimensions:

Male / Female Back Panel Mount Wire Connector , Electrical Quick Release Connectors

Male / Female Back Panel Mount Wire Connector , Electrical Quick Release Connectors

MOCO P / N T1 Z3
Insert 2-6 low voltage
Configuration Brass (gold plated)
Insulator PPS
contact dia.(mm) 0.9mm
Temp (min) -40 deg
Temp (max) 200 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
Vibration 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [ 6 ms]
Rated current 10A
IP Rating 50
Shielding (min) 75 dB (10 MHz)
P op (max) 60 bar (870 psi)

If you have any interests, please feel free to contact us!

Contact us today, we are looking forward to serving you!
