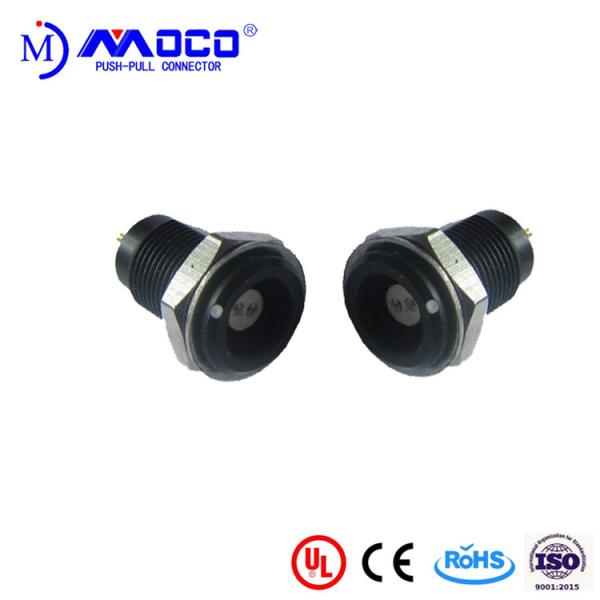

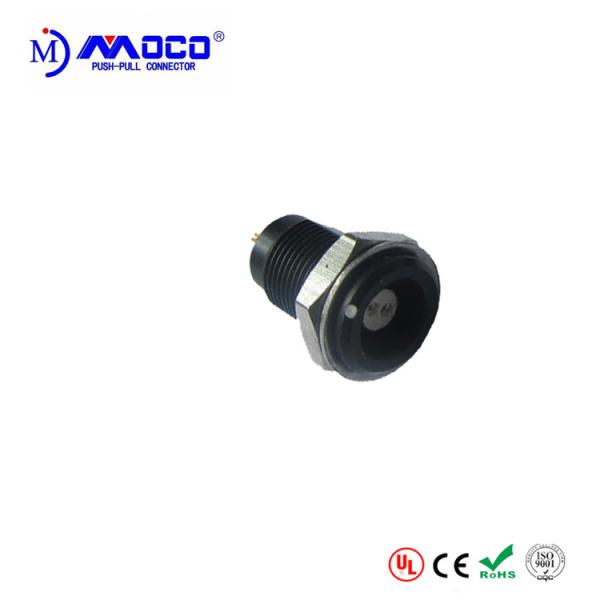

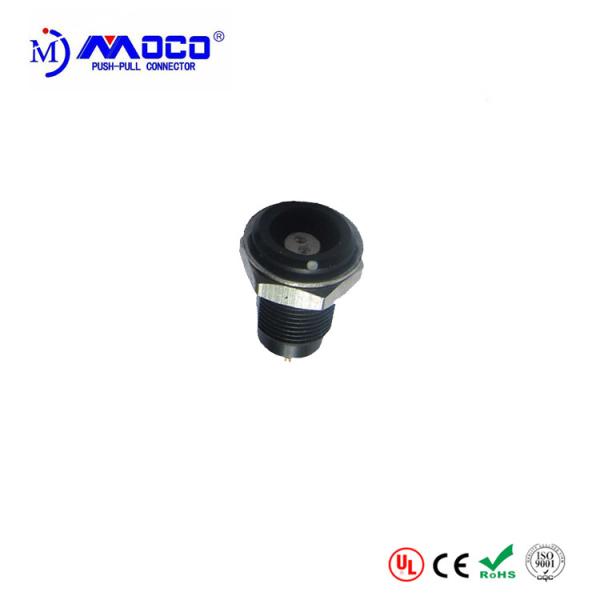

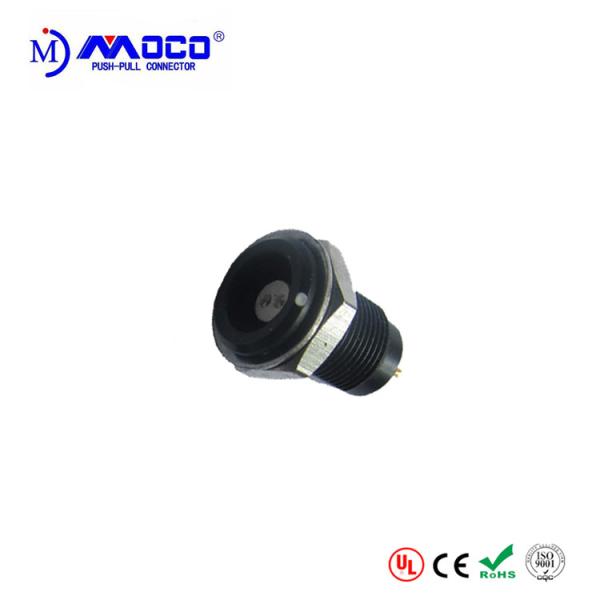

Push Pull Female Miniature Circular Connectors M7 2 Pin 5000 Mating Cycles
Push Pull Female Miniature Circular Connectors M7 2 Pin 5000 Mating Cycles
Push Pull Female Miniature Circular Connectors M7 2 Pin 5000 Mating Cycles
Push Pull Female Miniature Circular Connectors M7 2 Pin 5000 Mating Cycles
Push Pull Female Miniature Circular Connectors M7 2 Pin 5000 Mating Cycles
Push Pull Female Miniature Circular Connectors M7 2 Pin 5000 Mating Cycles
Push Pull Female Miniature Circular Connectors M7 2 Pin 5000 Mating Cycles
Push Pull Female Miniature Circular Connectors M7 2 Pin 5000 Mating Cycles
Specifications
Brand Name :
MOCO
Model Number :
EGG.00.302
Certification :
UL/CE/RoHs/ISO9001
Place of Origin :
Shezhen, China
MOQ :
10pcs
Payment Terms :
T/T, Paypal , Western Union
Supply Ability :
200000pcs/month
Delivery Time :
7-10 working days after simple confirmation
Packaging Details :
Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)
product name :
M7 2 pin female miniture circular connectors with black chrome plated
gender :
female
insulator material :
PPS
Endurance (Shell) :
5000 mating cycles
Vibration :
15 g [10 Hz - 2000 Hz]
Shock Resistance :
100 g [ 6 ms]
Salt Spray Corrosion :
>144 hr
IP Rating :
50
Material :
Black Chrome Plated Brass
number of contacts :
2 pin
Description

M7 2 pin female miniture circular connectors with black chrome plated

Main features:

- Security of the push-pull self-latching system;

- Solder or print contacts(straight or elbow);

- High packing density for space saving;

- Keying system for connector alignment;

- 360° screening for full EMC shielding.

Descriptions:

00 series is designed for less space, usually used in audio-video area.

Dimensions and Parameters

Push Pull Female Miniature Circular Connectors M7 2 Pin 5000 Mating Cycles

MOCO P / N 00BZ1G02CLL
Configuration Brass (gold plated)
Insulator PPS
Endurance (Shell) 5000 mating cycles
Temp (min) -40 deg
Temp (max) 200 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
Vibration 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [ 6 ms]
Salt Spray Corrosion >144 hr
IP Rating 50
Shielding (min) 75 dB (10 MHz)
P op (max) 60 bar (870 psi)

Hot Sale:

Push Pull Female Miniature Circular Connectors M7 2 Pin 5000 Mating Cycles

We also provide cable assembly service.

If you have any interests, please feel free to contact us!

Contact us today, we are looking forward to serving you!
