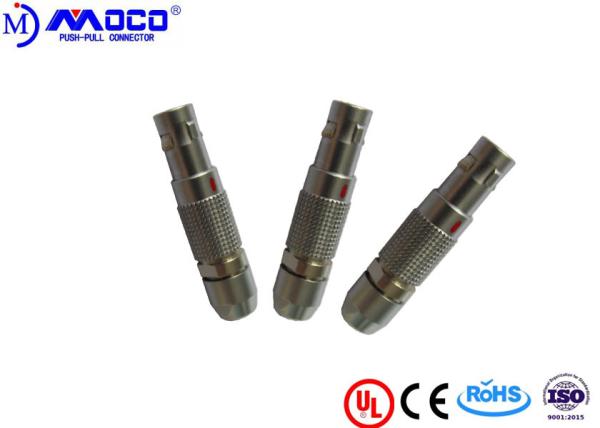

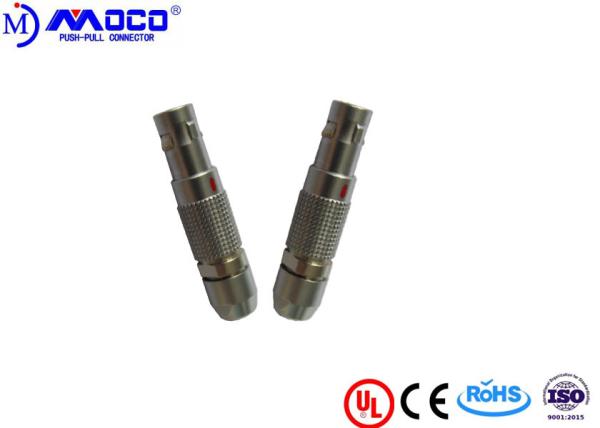

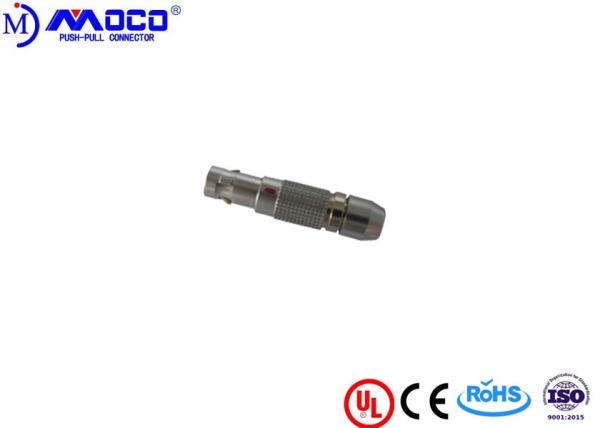

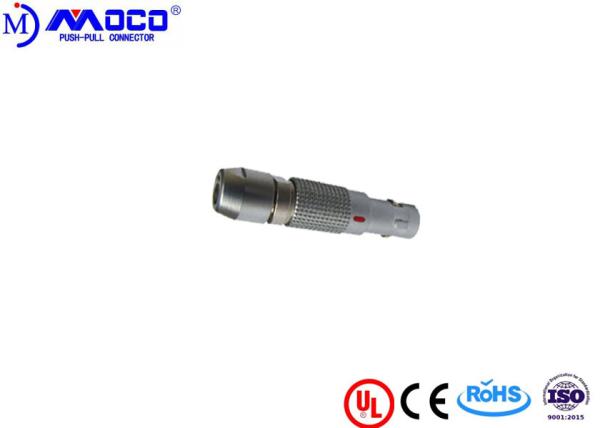

00B Series M7 Miniature 4 Pin Connector , Quick Release Cylindrical Connectors
00B Series M7 Miniature 4 Pin Connector , Quick Release Cylindrical Connectors
00B Series M7 Miniature 4 Pin Connector , Quick Release Cylindrical Connectors
00B Series M7 Miniature 4 Pin Connector , Quick Release Cylindrical Connectors
00B Series M7 Miniature 4 Pin Connector , Quick Release Cylindrical Connectors
00B Series M7 Miniature 4 Pin Connector , Quick Release Cylindrical Connectors
00B Series M7 Miniature 4 Pin Connector , Quick Release Cylindrical Connectors
00B Series M7 Miniature 4 Pin Connector , Quick Release Cylindrical Connectors
Specifications
Brand Name :
MOCO
Model Number :
00BT1
Certification :
UL/CE/RoHs/ISO9001
Place of Origin :
Shezhen, China
MOQ :
10pcs
Payment Terms :
T/T, Paypal , Western Union
Delivery Time :
7-10 working days after simple confirmation
Packaging Details :
Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)
Supply Ability :
200000pcs/month
product name :
00B series M7 2-4 pin quick release cylindrical male miniature connector
gender :
male
insulator material :
PPS
Endurance (Shell) :
5000 mating cycles
Vibration :
15 g [10 Hz - 2000 Hz]
Shock Resistance :
100 g [ 6 ms]
Salt Spray Corrosion :
>144 hr
IP Rating :
50
Material :
Chrome Plated Brass
Description

00B series M7 2-4 pin quick release cylindrical male miniature circular connector

Main features:

- Security of the push-pull self-latching system;

- Solder or print contacts(straight or elbow);

- Multiple key options to avoid cross mating of similar connectors;

- Keying system for connector alignment;

- 360°screening for full EMC shielding;

Descriptions:

00B series is designed for less space , 2 - 4 pin are avaliable right now .

Dimensions and Parameters

00B Series M7 Miniature 4 Pin Connector , Quick Release Cylindrical Connectors

MOCO P / N 00BT1CLA
Configuration Brass (gold plated)
Insulator PPS
Endurance (Shell) 5000 mating cycles
Temp (min) -40 deg
Temp (max) 200 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
Vibration 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [ 6 ms]
Salt Spray Corrosion >144 hr
IP Rating 50
Shielding (min) 75 dB (10 MHz)
P op (max) 60 bar (870 psi)

We also provide cable assembly service.

If you have any interests, please feel free to contact us!

Contact us today, we are looking forward to serving you!
