Brass Plated Male Plug M12 6 Pin Connector , Circular Cable Connectors For Audio
Brass Plated Male Plug M12 6 Pin Connector , Circular Cable Connectors For Audio
Brass Plated Male Plug M12 6 Pin Connector , Circular Cable Connectors For Audio
Brass Plated Male Plug M12 6 Pin Connector , Circular Cable Connectors For Audio
Specifications
Brand Name :
MOCO
Model Number :
FGG
Certification :
UL/CE/RoHs/ISO9001
Place of Origin :
Shezhen, China
MOQ :
10pcs
Payment Terms :
T/T, Paypal, , Western Union
Supply Ability :
200000pcs/month
Delivery Time :
7-10 working days after simple confirmation
Packaging Details :
Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)
number of pin :
6 pin
gender :
male
insulator material :
PPS
Endurance (Shell) :
5000 mating cycles
Vibration :
15 g [10 Hz - 2000 Hz]
Shock Resistance :
100 g [ 6 ms]
Description

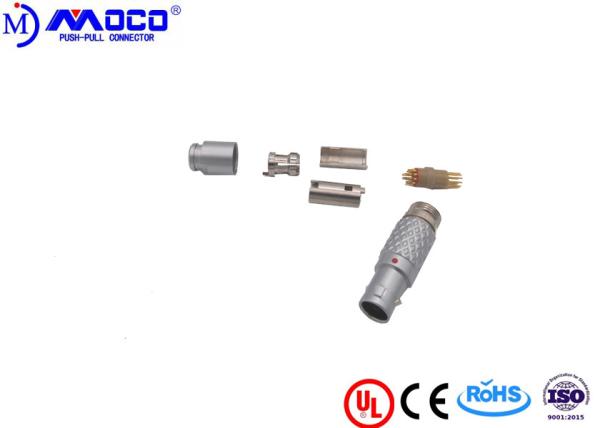

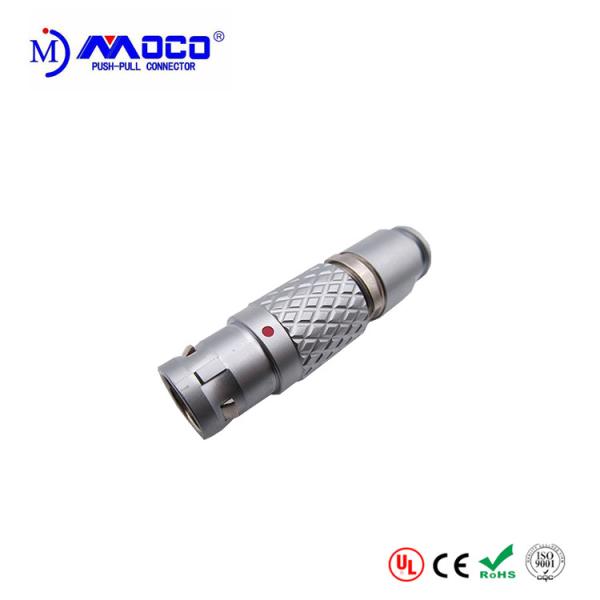

M12 6 pin brass plated male socket push pull circular connector

Description

T1 plug is a standard straight plug and also a classical male circular connector. You can pick the right size you want according to your panel cut-outs and other parameters. T1 plug widely used in many area like medical, audio - video and so on.

Main features:

- Security of the push-pull self-latching system;

- Solder or print contacts(straight or elbow);

- Keying system for connector alignment;

- High packing density for space saving.


Dimensions and Parameters

Brass Plated Male Plug M12 6 Pin Connector , Circular Cable Connectors For Audio

MOCO P / N 1BT1G06CLA
Insert 10 low voltage
Configuration Brass (gold plated)
Insulator PPS
Endurance (Shell) 5000 mating cycles
Temp (min) -40 deg
Temp (max) 200 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
Contact Dia.(mm) 0.7
Rated current(A) 7
Salt Spray Corrosion >144 hr
IP Rating 50
Shielding (min) 75 dB (10 MHz)
P op (max) 60 bar (870 psi)

MOCO's Advantages:

High quality well built products

Absolute competitive prices

Real short lead time

Good after - sale service

UL, CE, RoHs, ISO9001 certified

We also provide cable assembly service!

If you have any interests, please feel free to contact us!

Contact us today, we are looking forward to serving you!
