FGG 1B M12 4 pin male self locking push pull circular connector
FGG 1B M12 4 pin male self locking push pull circular connector
FGG 1B M12 4 pin male self locking push pull circular connector
FGG 1B M12 4 pin male self locking push pull circular connector
FGG 1B M12 4 pin male self locking push pull circular connector
FGG 1B M12 4 pin male self locking push pull circular connector
Specifications
Brand Name :
MOCO
Model Number :
1BT1G04CLA
Certification :
UL/CE/RoHs/ISO9001
Place of Origin :
Shezhen, China
MOQ :
10pcs
Payment Terms :
T/T, Paypal, , Western Union
Supply Ability :
200000pcs/month
Delivery Time :
7-10 working days after simple confirmation
Packaging Details :
Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)
Product name :
FGG 1B M12 4 pin male self locking push pull circular connector
number of pin :
4 pin
gender :
male
insulator material :
PPS
Endurance (Shell) :
5000 mating cycles
Vibration :
15 g [10 Hz - 2000 Hz]
Description

FGG 1B M12 4pin male self locking push pull connector

Main features:

-Security of the push-pull self-latching system;

-Solder or print contacts(straight or elbow);

-Keying system for connector alignment;

-360°screening for full EMC shielding;

Description

T1 plug is a standard straight plug and also a classical male circular connector. You can pick the right size you want according to your panel cut-outs and other parameters. T1 plug widely used in many area like medical, audio - video and so on.

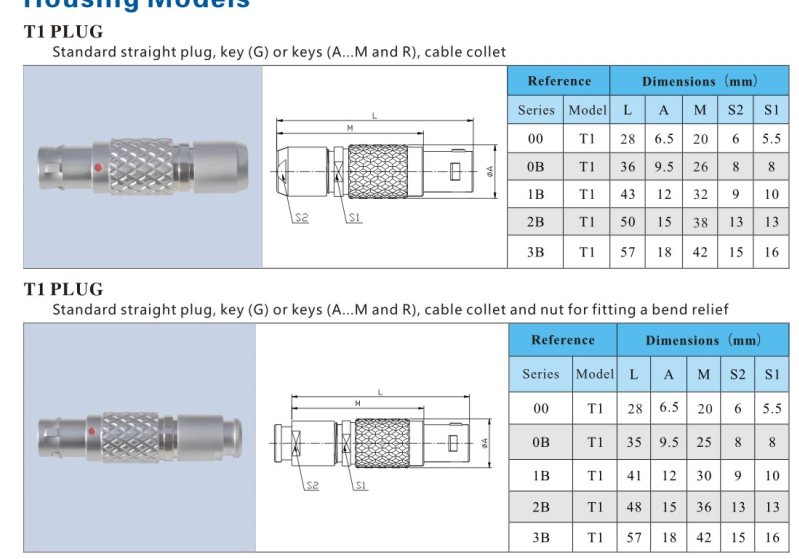

Dimensions and Parameters

FGG 1B M12 4 pin male self locking push pull circular connector

MOCO P / N 1BT1G04CLA
Insert 4 low voltage
Configuration Brass (gold plated)
Insulator PPS
Endurance (Shell) 5000 mating cycles
Temp (min) -40 deg
Temp (max) 200 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
Vibration 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [ 6 ms]
Salt Spray Corrosion >144 hr
IP Rating 50
Shielding (min) 75 dB (10 MHz)
P op (max) 60 bar (870 psi)

We also provide cable assembly service!

If you have any interests, please feel free to contact us!

Contact us today, we are looking forward to serving you!
