K 102 Cable To Cable Push Pull Electrical Connectors , Ip68 Circular Connectors S 102
K 102 Cable To Cable Push Pull Electrical Connectors , Ip68 Circular Connectors S 102
K 102 Cable To Cable Push Pull Electrical Connectors , Ip68 Circular Connectors S 102
K 102 Cable To Cable Push Pull Electrical Connectors , Ip68 Circular Connectors S 102
K 102 Cable To Cable Push Pull Electrical Connectors , Ip68 Circular Connectors S 102
K 102 Cable To Cable Push Pull Electrical Connectors , Ip68 Circular Connectors S 102
K 102 Cable To Cable Push Pull Electrical Connectors , Ip68 Circular Connectors S 102
K 102 Cable To Cable Push Pull Electrical Connectors , Ip68 Circular Connectors S 102
Specifications
Brand Name :
MOCO
Model Number :
S 102 K102
Certification :
UL / CE / RoHs / ISO9001
Place of Origin :
Shenzhen. China
MOQ :
10pcs
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
200000pcs/month
Delivery Time :
7-10 work days after simple confirmation
Packaging Details :
Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)
Product Name :
s 102 straight male with k 102 cable to cable circular connectors
pin :
2 - 9 pin
Endurance (Shell) :
5000 mating cycles
Shock Resistance :
100 g [ 6 ms]
IP Rating :
68
Material :
Chrome Plated Brass
Description

s 102 straight male with k 102 cable to cable circular connectors

Description:

T1 is a straight plug with half - shell key. You can pick the right size you want according to panel out-fits and other parameters. Z4 is free socket , cable mount with half - shell key. Compatible with Fischer S102 and K 102. 0F series 2 - 9 pins are in avaliable.

Main features:

- Multipole type 2 to 9 contacts;

- High packing density for space saving;

- Half-shell key to avoid cross mating;

- Vacuum-tight socket suitable for vacuum equipment.

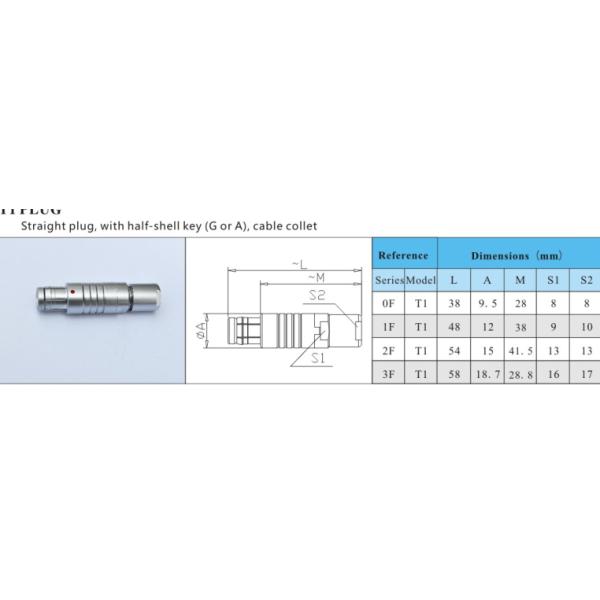

Dimensions and Parameters

K 102 Cable To Cable Push Pull Electrical Connectors , Ip68 Circular Connectors S 102

K 102 Cable To Cable Push Pull Electrical Connectors , Ip68 Circular Connectors S 102

Assembly Instructions:

K 102 Cable To Cable Push Pull Electrical Connectors , Ip68 Circular Connectors S 102

MOCO P / N 0FT1 0FZ4
Configuration Brass (gold plated)
Insulator PPS
Endurance (Shell) 5000 mating cycles
Temp (min) -40 deg
Temp (max) 200 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
Vibration 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [ 6 ms]
Salt Spray Corrosion >144 hr
IP Rating 68
Shielding (min) 75 dB (10 MHz)
P op (max) 60 bar (870 psi)
