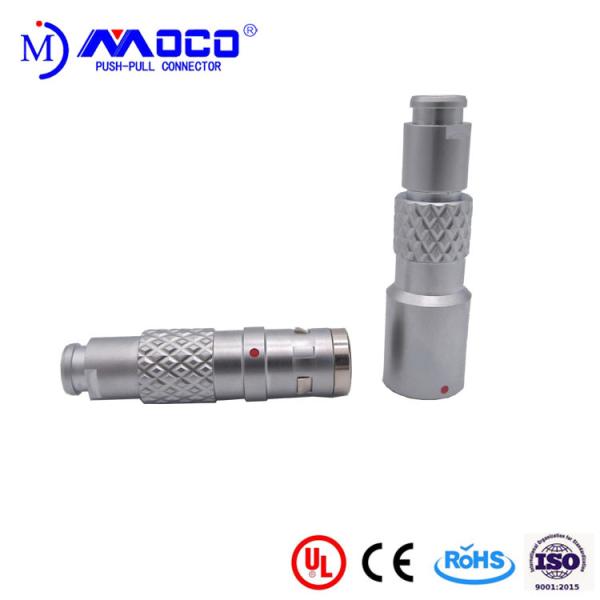

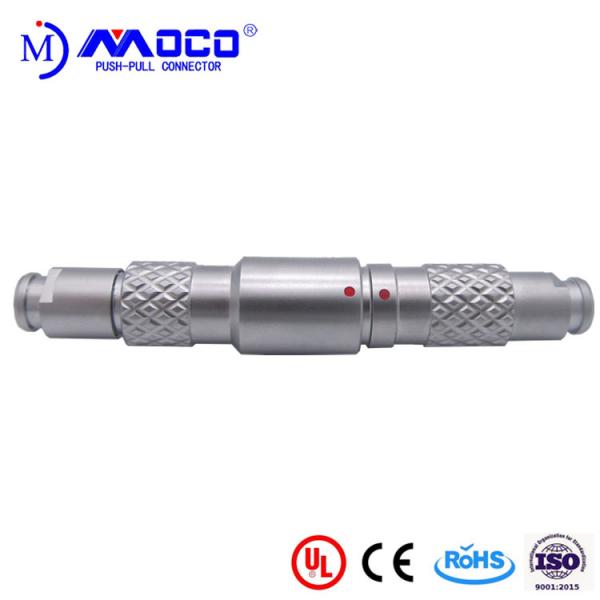

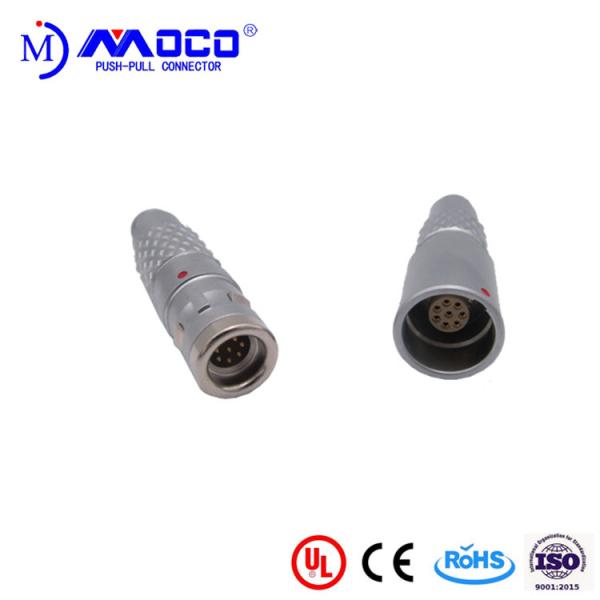

IP 68 Waterproof Electric Cable Connectors FGG PHG 1K 2 4 6 12 Pin Aviation
IP 68 Waterproof Electric Cable Connectors FGG PHG 1K 2 4 6 12 Pin Aviation
IP 68 Waterproof Electric Cable Connectors FGG PHG 1K 2 4 6 12 Pin Aviation
IP 68 Waterproof Electric Cable Connectors FGG PHG 1K 2 4 6 12 Pin Aviation
IP 68 Waterproof Electric Cable Connectors FGG PHG 1K 2 4 6 12 Pin Aviation
IP 68 Waterproof Electric Cable Connectors FGG PHG 1K 2 4 6 12 Pin Aviation
IP 68 Waterproof Electric Cable Connectors FGG PHG 1K 2 4 6 12 Pin Aviation
IP 68 Waterproof Electric Cable Connectors FGG PHG 1K 2 4 6 12 Pin Aviation
Specifications
Brand Name :
MOCO
Model Number :
FGG PHG
Certification :
UL/CE/RoHs/ISO9001
Place of Origin :
Shenzhen, China
MOQ :
10pcs
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
200000pcs/month
Delivery Time :
7-10 work days after sample confirmation
Packaging Details :
Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)
Product Name :
FGG PHG 1K 2 pin 4 pin 6 pin 12 pin aviation waterproof electric cable connectors
pin :
2 - 16 pin
insulator material :
PPS
Endurance (Shell) :
5000 mating cycles
Vibration :
15 g [10 Hz - 2000 Hz]
Shock Resistance :
100 g [ 6 ms]
IP rating :
68
Description

FGG PHG 1K 2 pin 4 pin 6 pin 12 pin aviation waterproof electric cable connectors

Main features:

- Push pull slef locking system;

- Solder or print contacts(straight or elbow);
- Multiple key options to avoid cross mating of similar connectors;
- Keying system for connector alignment;

- Watertight connection(IP66-IP68);

K series connectors are designed for out door applications. All models of this series are watertight when mated to give a protection degree IP68 when correctly assembled to an appropriate cable(at least IP66)..

T1 is straight waterproof plug with cable collect. 2-16 pins of 1K series are avaliable.

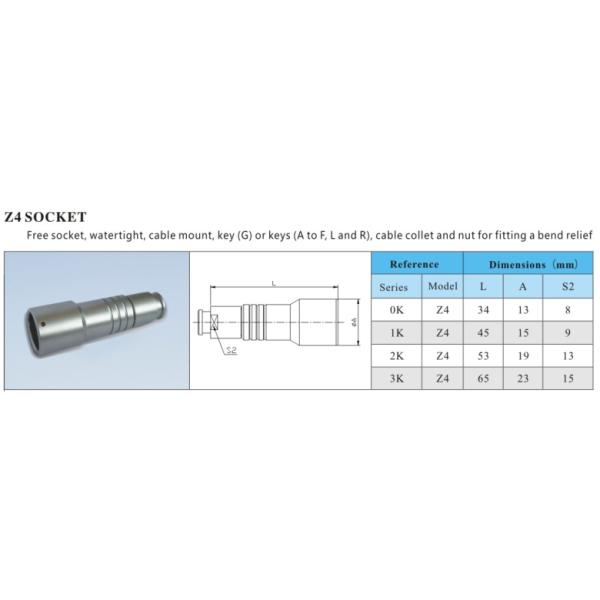

Z4 is free socket, watertight, cable mount.

Black, grey, blue, red, yellow and green bend relief (cable sleeve) for options.

Dimensions and Parameters

IP 68 Waterproof Electric Cable Connectors FGG PHG 1K 2 4 6 12 Pin Aviation

IP 68 Waterproof Electric Cable Connectors FGG PHG 1K 2 4 6 12 Pin Aviation

MOCO P / N 1KT1 1KZ4
Configuration Brass (gold plated)
Insulator PPS
Endurance (Shell) 5000 mating cycles
Temp (min) -40 deg
Temp (max) 200 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
Vibration 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [ 6 ms]
Salt Spray Corrosion >144 hr
IP Rating 68
Shielding (min) 75 dB (10 MHz)
P op (max) 60 bar (870 psi)

Quality Control:

IP 68 Waterproof Electric Cable Connectors FGG PHG 1K 2 4 6 12 Pin Aviation

We also provide cable assembly service!

If you have any interests, please feel free to contact us!

Contact us today, we are looking forward to serving you!

IP 68 Waterproof Electric Cable Connectors FGG PHG 1K 2 4 6 12 Pin Aviation
