32 Inch Vandalproof Infrared Touch Monitor Panel With Tempered Glass 60Hz
32 Inch Vandalproof Infrared Touch Monitor Panel With Tempered Glass 60Hz
32 Inch Vandalproof Infrared Touch Monitor Panel With Tempered Glass 60Hz
32 Inch Vandalproof Infrared Touch Monitor Panel With Tempered Glass 60Hz
32 Inch Vandalproof Infrared Touch Monitor Panel With Tempered Glass 60Hz
32 Inch Vandalproof Infrared Touch Monitor Panel With Tempered Glass 60Hz
32 Inch Vandalproof Infrared Touch Monitor Panel With Tempered Glass 60Hz
32 Inch Vandalproof Infrared Touch Monitor Panel With Tempered Glass 60Hz
Specifications
Brand Name :
CJTOUCH
Model Number :
COT32-IPK03
Certification :
CE FCC
Place of Origin :
Dongguan China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T,
Supply Ability :
5000 PCS per quarter
Delivery Time :
2-3days
Packaging Details :
2 Infrared touch monitors in 1carton
Touch screen :
IR Touch (Support Multi Touch), Infrared Touch Screen
Material :
Metal Case+ Infrared Touch Panel
Screen size :
32"
Resolution :
1920×1080
Brightness :
250cd/m2
interface :
VGA/DVI/USB/HDMI/DC12V
Touch point :
1-10 points option
Application :
Gaming ,retail ,kiosk,care,education
Description

Customized size 32 inch IR touch screen monitor touch panel 3840x2160 4k monitor

This CJTOUCH touch display produced with 32inch TFT LCD panel and 32inch 6 points IR touch screen . Could be optional come with/without OS to applied as monitor or PC base on your detail requirements., cost-effective touch solution which is designed for Kiosks, ATM, Gaming, Casino, Interactive digital, Industrial, Education, Transportation etc..., is easily Connected and integrated by user.

Infrared Touch screen monitor Feature:
· Industrial Desgin With Excellent Durablity
· IR touch Technology Multi Touch 2-10 Touch Points
· 3MM Enhanced Glass With Vandal Proof Resistance
· High Light Transmission Clear Glass
· Easy to Use:Plug and Works on Windows/Linux/(Android)
· Perfect Solutions For Use In Public
· VESA Mounting and Rear Mounting
· OEM/ODM Customized Option: Brightness/Computer Integrated Inside/Etc
· Factory Competitive Price and Fast Delivery

Our advantage
1.Infrared multi touch frame , supports 10,20,32,64 precise touch points ,Driver free
2.USB plug and play, Sizes from 15" to 800" (4:3 ,16:9, 16:10)
3.Custom Sizes Available, Easy to Install
4.Waterproof optional, High Stability / Reliability
5.Extremely Durable / Scratch Resistant
6.Compatible with Win7, Win8, Win10, Android, Linux system
7.Simple calibration

Functionalities:
1. Stable operation
2. Accurate Touch Response
3. Durable
4. Scratch-resistant glass sur face
5. Anti-glare
6. Vandal-Proof (Tempered glass
7.superior Image Clarity resolution

Specification:

Display Specifications
Characteristic Value Comment
LCD Size/Type 32” a-Si TFT-LCD
Aspect Ratio 16:09
Active Area Horizontal 698.4mm
Vertical 392.85mm
Pixel Horizontal 0.36375
Vertical 0.36375
Panel Resolution 1920(RGB)×1080 (FHD)(60Hz) Native
Display Color 16.7 Million 8-bits + Hi-FRC
Contrast Ratio 1100:01:00 Typical
Brightness 400 cd/m² Typical
Response Time 10ms Typical
Viewing Angle Horizontal 178 Typical 89/89/89/89 (Min.)(CR≥10)
Vertical 178
Video Signal Input VGA and DVI and HDMI
Physical Specifications
Dimensions Width 762.8mm
Height 457.3 mm
Depth 73 mm
Electrical Specifications
Power Supply AC220V Power Adapter Included
100-240 VAC, 50-60 Hz Plug Input
Power Consumption Operating 38 W Typical
Sleep 3 W
Off 1 W
Touch Screen Specifications
Touch Technology Infrared (IR) Touch Screen 10 Touch Point
Touch Interface USB (Type A)
OS Supported Plug and Play Windows All (HID) ,Linux (HID) (Android Option)
Driver Driver Offered
Environmental Specifications
Condition Specification
Temperature Operating -10°C ~+ 50°C
Storage -20°C ~ +70°C
Humidity Operating 20% ~ 80%
Storage 10% ~ 90%
MTBF 30000 Hrs at 25°C

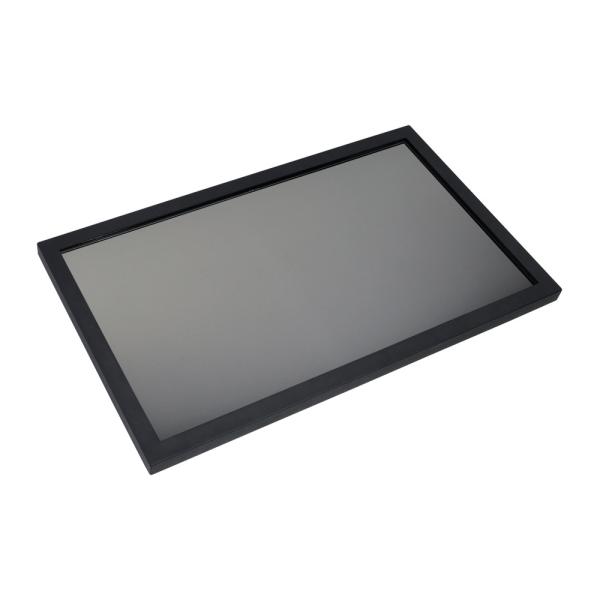

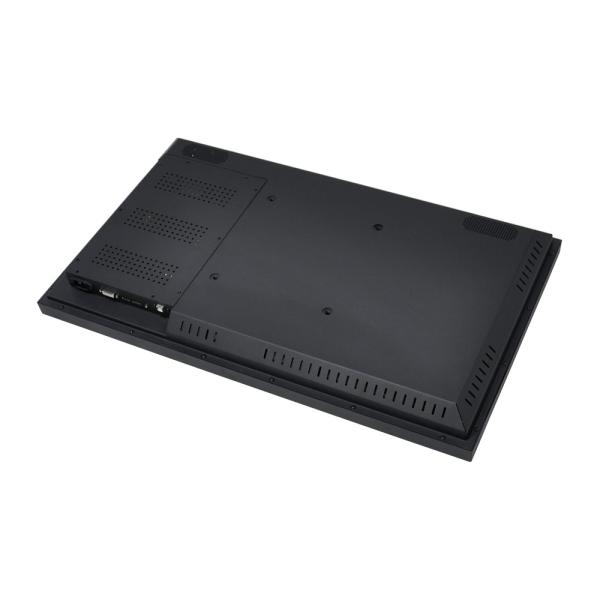

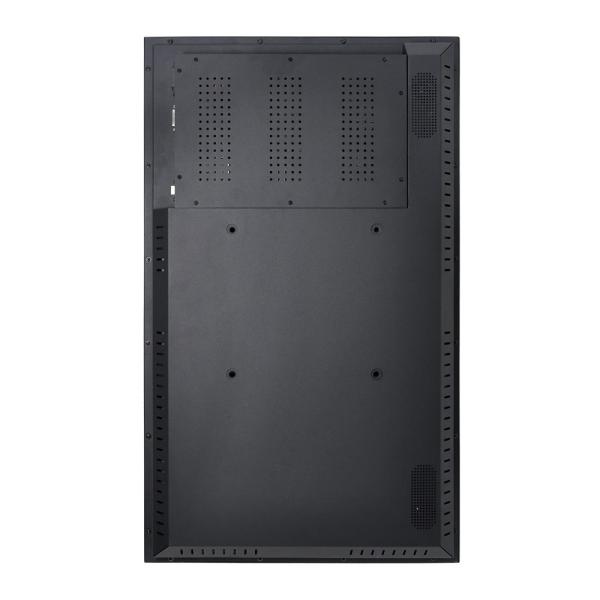

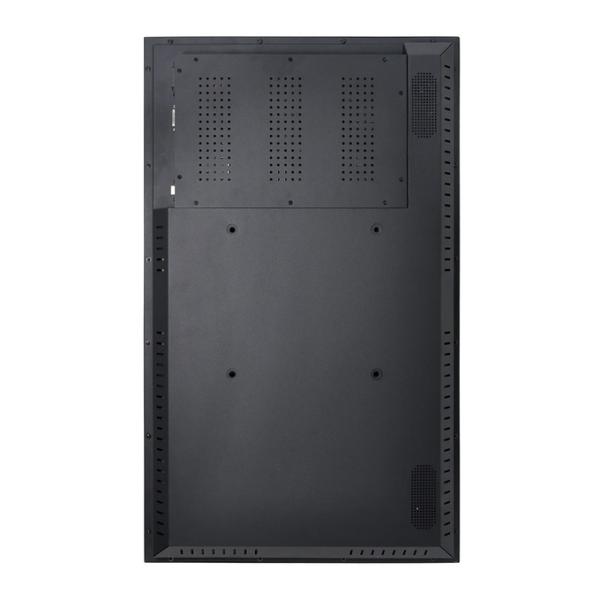

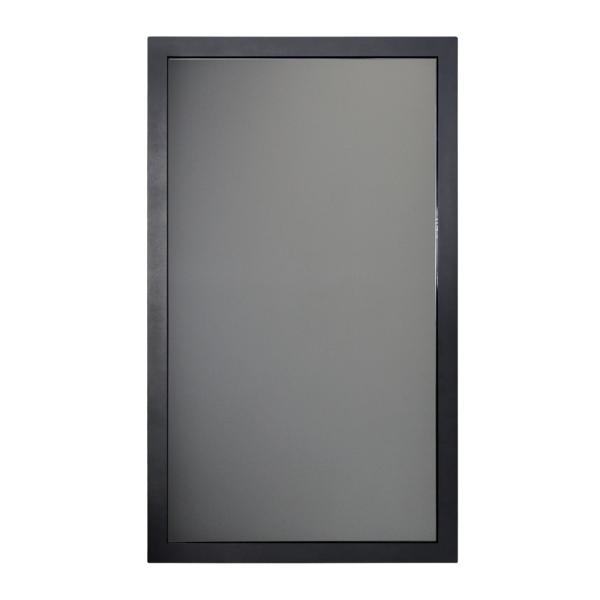

Product Picture

32 Inch Vandalproof Infrared Touch Monitor Panel With Tempered Glass 60Hz32 Inch Vandalproof Infrared Touch Monitor Panel With Tempered Glass 60Hz

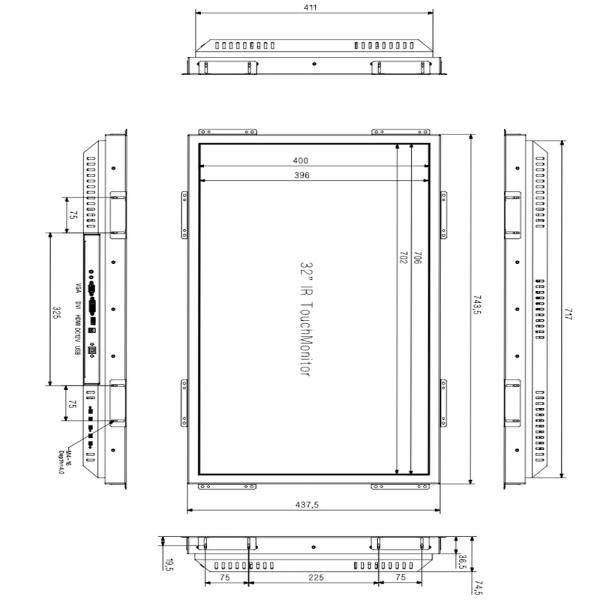

Drawing :

32 Inch Vandalproof Infrared Touch Monitor Panel With Tempered Glass 60Hz
