17 Inch Multi Touch Infrared Touch Screen With 3mm Glass Vandal Proof
17 Inch Multi Touch Infrared Touch Screen With 3mm Glass Vandal Proof
17 Inch Multi Touch Infrared Touch Screen With 3mm Glass Vandal Proof
17 Inch Multi Touch Infrared Touch Screen With 3mm Glass Vandal Proof
Specifications
Brand Name :
CJTOUCH
Model Number :
CIN170AP-3F-NA2
Certification :
CE / FCC
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500pcs/week
Delivery Time :
1-2 working days
Packaging Details :
1pcs or 20pcs in a carton
Touch type :
Infrared sensor touch screen
Touch Points :
2,4,6 touch ponits
Glass :
3mm Tempered Glass
input voltage :
5V
Driver :
Plug and Play
interface :
USB
Description

17 Inch Multi Touch Screen Overlay Kit Infrared Touch Screen 3mm glass with vandalproof

Main feature

  • Aluminum frame or plastic frame - Dust proof or water proof
  • 3/4 mm tempered glass - Vandal proof
  • Sunlight readable
  • Multi touch - 2/4/6/10 touch points
  • USB 2.0, plug and play
  • Aluminum alloy shell with strong stability.
  • Fast response(less than 16 ms), no blind area, breakpoints, jump points, pause and
  • Support windows XP/7/8/10, Android, Linux OS

CJTouch Infrared touch screens operate in extreme temperature, shock, vibration, and lighting conditions. The display is protected by a choice of glass or acrylic overlays optimized for optical clarity, security, or safety.CJTouch’s infrared touch screens provide optical sensor technology for applications in harsh or glass-free environments. Featuring a low profile with nearly pixel-level touch resolution and no parallax.CJTouch touch screens provide stable, drift-free operation while delivering an extremely sensitive, accurate touch response with no touch activation force required.

Specification of Product

MECHANICAL
P/N CIN Slim series
Overlay Thickness 7.9 mm
Overlay Frame Width 18.5 mm
Housing Aluminum frame/ Plastic frame
TOUCH CHARACTERISTICS
Input Method Finger or touch pen
Touch Points NA2= 2 Touch Points,NA4= 4 Touch Points, NA6=6 Touch Points
Touch Activation Force Non Minimum activation force
Position Accuracy 1mm
Resolution 4096(W)×4096(D)
Response Time Touch: 6ms
Drawing : 6ms
Cursor Speed 120 dot/sec
Glass 3mm glass Transparency : 92%
Object Touch Size ≥ Ø5mm
Touch Intensity Over 60 millions single touch
ELECTRICAL
Operating Voltage DC 4.5V ~ DC 5.5V
Power 1.0W (100mA at DC 5V)

Anti -Static Discharge

(Standard :B)

 Touch Discharge,Grade 2:Lab Vol 4KV
Air Discharge,Grade 3:Lab Vol 8KV
ENVIRONMENT
Temperature operating:-10 °C ~ 60 °C
storage:-30°C ~ 70 °C
Humidity operating:20% ~85%
storage:0%~95%
Relative Humidity 40 °C,90% RH
Anti – glare Test

Incandescent lamp (220V,100W) ,

operating distance over 350mm
Altitude 3,000m
Interface USB2.0 full speed
Seal Ability IP64 Anti-Spill (Customizable to IP65 Waterproof)
Working Environment Directly Under sunlight ,indoor and outdoor
Application of Display Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks
Software(Firmware)
Operate system Windows 7,Windows 8,Windows 10, Andriod,Linux
Calibration tool Precalibrated & Software can be download in CJTouch Website
VID 1FF7
PID 0013

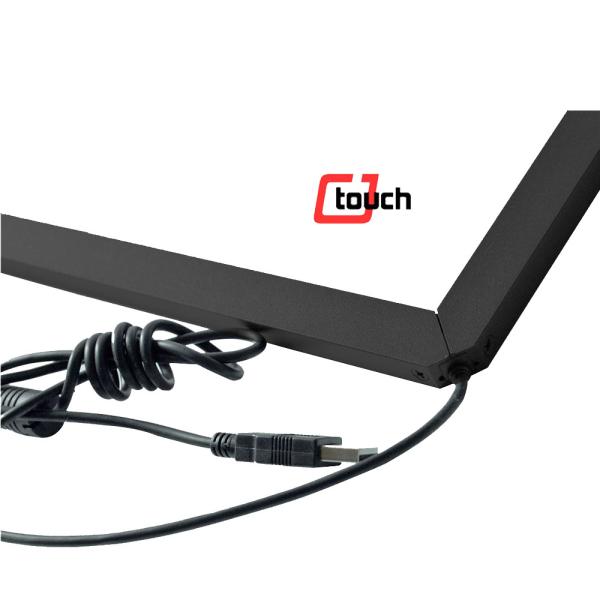

Picture of Product

17 Inch Multi Touch Infrared Touch Screen With 3mm Glass Vandal Proof

17 Inch Multi Touch Infrared Touch Screen With 3mm Glass Vandal Proof

17 Inch Multi Touch Infrared Touch Screen With 3mm Glass Vandal Proof

Technical Drawing

17 Inch Multi Touch Infrared Touch Screen With 3mm Glass Vandal Proof
