Practical 86 Inch Infrared Touch Screen With USB Interface High Sensitivity
Practical 86 Inch Infrared Touch Screen With USB Interface High Sensitivity
Practical 86 Inch Infrared Touch Screen With USB Interface High Sensitivity
Practical 86 Inch Infrared Touch Screen With USB Interface High Sensitivity
Specifications
Brand Name :
CJTOUCH
Model Number :
CIP860AP-4K-DNA10
Certification :
CE / FCC
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500pcs/week
Delivery Time :
1-2 working days
Packaging Details :
1pcs or 20pcs in a carton
Touch type :
Large IR touch frame overlay
Touch Points :
10 touch ponits
Glass :
4mm Tempered Glass
input voltage :
5V
Driver :
Plug and Play
interface :
USB
Description

86 Inch Infrared Multi Touch Screen, IR Touch Frame Smart TV, Flat Touch Screen Panel

Our 86"Infrared multi touch screen suppor 10 touch points touch,USB prot,Play and plug.support Win7/10 Android (Linux support latest version).Infrared(IR) touch screen operate on the mechanism of infrared LEDs arranged in arrays on two adjacent bezel edges of the PCB with photo sensors placed on the two opposite edges functioning as transmitters and receivers. The LEDs emit infrared rays simultaneously to form a grid of rays across the display. When the user wishes to send a signal through touch, he/she can do so by interrupting the light beams with a physical object. Since every infrared LED is independent, the touch screen is able to achieve positioning by analyzing the decrease in light at the corresponding photo sensors. The signal is then processed by the control circuitry and sent to the PC for the coordinates of the touch event to be displayed on screen or to be utilized by other software for relevant signal operation.

Specification of Product

MECHANICAL
P/N CIP Slim series
Overlay Thickness 14.6 mm
Overlay Frame Width 19.1 mm
Housing Aluminum frame/ Plastic frame
TOUCH CHARACTERISTICS
Input Method Finger or touch pen
Touch Points NA2= 2 Touch Points,NA4= 4 Touch Points, NA6=6 Touch Points
Touch Activation Force Non Minimum activation force
Position Accuracy 1mm
Resolution 4096(W)×4096(D)
Response Time Touch: 6ms
Drawing : 6ms
Cursor Speed 120 dot/sec
Glass 4mm glass Transparency : 92%
Object Touch Size ≥ Ø5mm
Touch Intensity Over 60 millions single touch
ELECTRICAL
Operating Voltage DC 4.5V ~ DC 5.5V
Power 1.0W (100mA at DC 5V)
Anti -Static Discharge (Standard :B) Touch Discharge,Grade 2:Lab Vol 4KV
Air Discharge,Grade 3:Lab Vol 8KV
ENVIRONMENT
Temperature operating:-10 °C ~ 60 °C
storage:-30°C ~ 70 °C
Humidity operating:20% ~85%
storage:0%~95%
Relative Humidity 40 °C,90% RH
Anti – glare Test Incandescent lamp (220V,100W) ,
operating distance over 350mm
Altitude 3,000m
Interface USB2.0 full speed
Seal Ability IP64 Anti-Spill (Customizable to IP65 Waterproof)
Working Environment Directly Under sunlight ,indoor and outdoor
Application of Display Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks
Software(Firmware)
Operate system Windows 7,Windows 8,Windows 10, Andriod,Linux
Calibration tool Precalibrated & Software can be download in CJTouch Website
VID 1FF7
PID 0 013

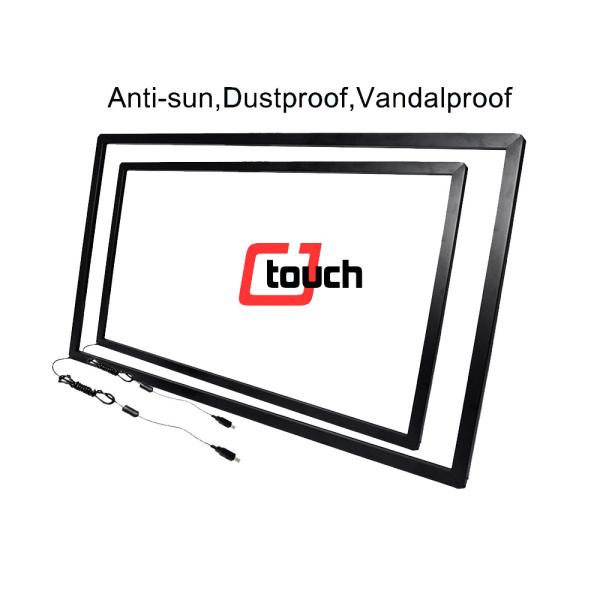

Picture of Product

Practical 86 Inch Infrared Touch Screen With USB Interface High SensitivityPractical 86 Inch Infrared Touch Screen With USB Interface High Sensitivity

Technical Drawing

Practical 86 Inch Infrared Touch Screen With USB Interface High Sensitivity
