Specifications
Brand Name :
CJTOUCH
Model Number :
CIN104AP-3F-NA2
Certification :
CE / FCC
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500pcs/week
Delivery Time :
1-2 working days
Packaging Details :
1pcs or 20pcs in a carton
Touch type :
Infrared touch screen
Interface :
USB
Touch Points :
2,4,6 touch ponits
Glass :
3mm Tempered Glass
input voltage :
5V
Driver :
Plug and Play
Customized :
Support
Sunlight :
Anti-sunlight
Description

10.4 inch Infrared Touch Screen 2/4/6/10 Touch Points IR touch screen

An infrared touchscreen device emits infrared light across the interface, which is picked up by various sensors, typically located on the edges or corners. The infrared light is invisible to the naked eye. This makes it particularly beneficial when used to produce large touchscreen displays.

Infrared touch screen Features:

1.Ultra-thin and ultra-narrow frame, aluminium alloy shell.
2.High touch accuracy and smooth writing.
3.Driver-free support for multiple operating systems.
4.Long service life, maintenance-free.
5.Toughened glass material, with high transmittance, strong stability.
6.Strong anti-jamming ability, anti-static performance of industrial ESD.
7.Response speed (less than 15 milliseconds), sensor discontinuous damage 10%, can still work.
8.No special touch tools are needed, just opaque objects.

Infrared Touch Application Scene:
1.Education
2.Medical industry
3.Finance
4.Exhibition
5.Industrial control
6.Man-machine interaction
7.TV
8.PC

Specification of Product

MECHANICAL
P/N CIN Slim series
Overlay Thickness 7.9 mm
Overlay Frame Width 18.5 mm
Housing Aluminum frame/ Plastic frame
TOUCH CHARACTERISTICS
Input Method Finger or touch pen
Touch Points NA2= 2 Touch Points,NA4= 4 Touch Points, NA6=6 Touch Points
Touch Activation Force Non Minimum activation force
Position Accuracy 1mm
Resolution 4096(W)×4096(D)
Response Time Touch: 6ms
Drawing : 6ms
Cursor Speed 120 dot/sec
Glass 3mm glass Transparency : 92%
Object Touch Size ≥ Ø5mm
Touch Intensity Over 60 millions single touch
ELECTRICAL
Operating Voltage DC 4.5V ~ DC 5.5V
Power 1.0W (100mA at DC 5V)

Anti -Static Discharge

(Standard :B)

 Touch Discharge,Grade 2:Lab Vol 4KV
Air Discharge,Grade 3:Lab Vol 8KV
ENVIRONMENT
Temperature operating:-10 °C ~ 60 °C
storage:-30°C ~ 70 °C
Humidity operating:20% ~85%
storage:0%~95%
Relative Humidity 40 °C,90% RH
Anti – glare Test

Incandescent lamp (220V,100W) ,

operating distance over 350mm
Altitude 3,000m
Interface USB2.0 full speed
Seal Ability IP64 Anti-Spill (Customizable to IP65 Waterproof)
Working Environment Directly Under sunlight ,indoor and outdoor
Application of Display Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks
Software(Firmware)
Operate system Windows 7,Windows 8,Windows 10, Andriod,Linux
Calibration tool Precalibrated & Software can be download in CJTouch Website
VID 1FF7
PID 0013

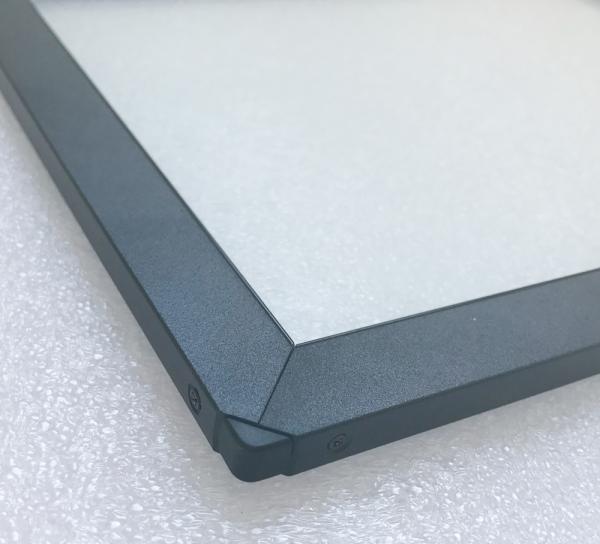

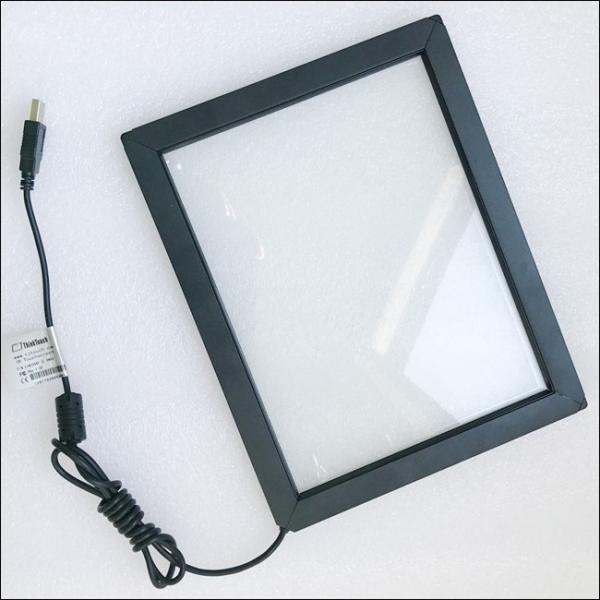

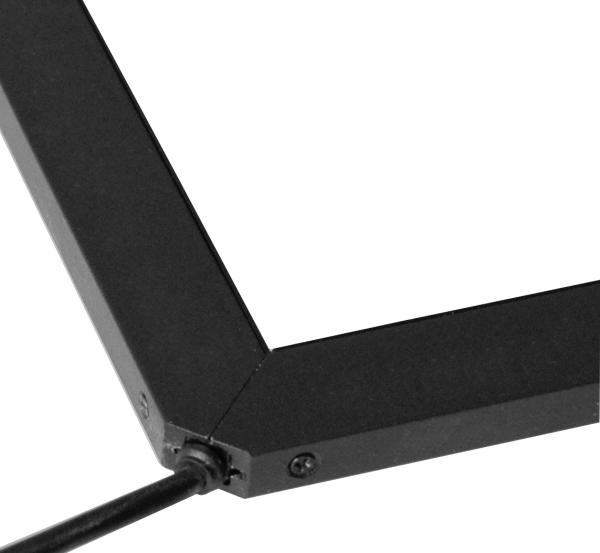

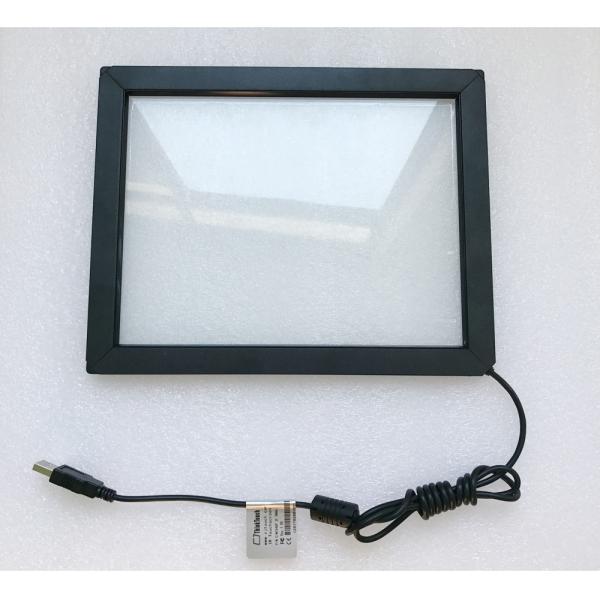

Picture of Product

Waterproof 10.4 Inch Infrared Touch Screen Anti Sunlight 5V Voltage

Waterproof 10.4 Inch Infrared Touch Screen Anti Sunlight 5V Voltage

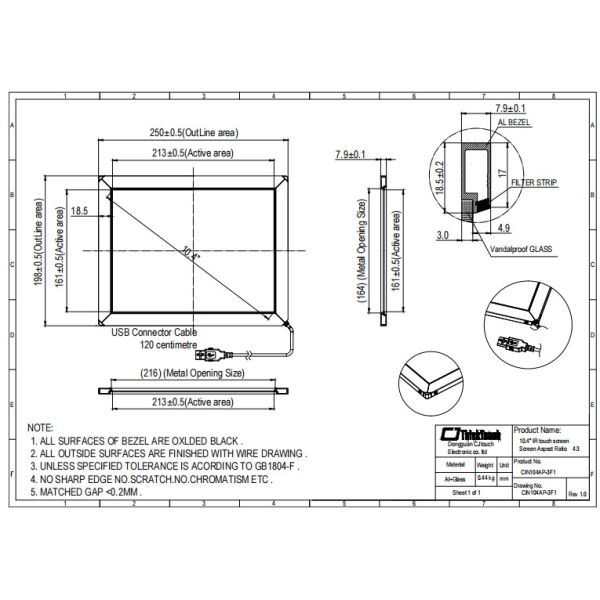

Technical Drawing

Waterproof 10.4 Inch Infrared Touch Screen Anti Sunlight 5V Voltage
