10 Points Nano Touch Foil 43 Inch Nano for Commercial Industrial
10 Points Nano Touch Foil 43 Inch Nano for Commercial Industrial
10 Points Nano Touch Foil 43 Inch Nano for Commercial Industrial
10 Points Nano Touch Foil 43 Inch Nano for Commercial Industrial
Specifications
Brand Name :
CJTOUCH
Model Number :
CJ110P-43-SIDE
Certification :
FCC, CE, RoSH
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000/month
Delivery Time :
5-15 working days
Packaging Details :
1/5 set in 1 paper tube
Touch Type :
PCAP touch foil
Multi Touch :
10 Points Touch
Interface :
USB
Response Time :
2.5ms
Transmittance :
80%
Tail Direction :
Side or Bottom
Warranty :
1 Year
Description

43" Touch Screen Monitor Capacitive Nano Commercial Industrial Touch Foil

Transforms any glass/acrylic panel or store window into an interactive touch screen display. Ideal for integration within POS displays, kiosks and industrial grade applications.

General Information
Interface USB
Transmittance 80%
Tail Direction Side or Bottom
Ci Sis
Series 100p, 150p
Driver Type Free Driver
Calibration Way Sofeware Calibrate
Packing Paper Tube

Specification
Detection method Projected Capacitive Technology (ITO is replace by Metal Mesh Matrix)
Input method Finger and Capacitive pen
Models Channels 80P Channels 110P Channels 160P
Size range 15-24 inch 24-55 inch 55-86 inch
Number of Sensors 1344 2784 5568
Number of touch points 10/ 20 points
Touch accuracy <2mm
Speed of Response <2.5 ms
Arm Rejection Support
Aspect Ratio 4:3/16:9/16:10,customized size available
Thickness of sensor <200um
Light transmission 90%
Adhesive Permanent
Construction Various thicknesses, Anti-glare, Anti-reflective, Clear, Chemical or Thermal Toughened
Thickness of glass 0-12mm
Interface USB2.0
Safe Distance 2mm(distance between LED and sensor film)
Surrounding Requirement Anti-sunlight, Water-proof
Function Multi touch, Zoom in/out, Rotation
Operating System Windows 7/8/8.1/10(32 bit / 64 bit), Linux,Android,IOS
HID HID-USB
Driver and Calibration Auto installed and calibration driver
Power Consumption 0.5W-2W
Power Supply 5V USB
Operating Temperature -20ºC to 70ºC
Humidity 0-96%
Life time expectancy 8 Years
Warranty 1 Year
Certifications UL/CE/ROHS


Systems

Win XP7/8/8.1/10 Home Edition of Windows only supports single touch
Multi touch works on Windows Professional/Enterprise/Ultimate Edition

Android: Open HID-USB, switch off Report Rate Description, input value of Android's VID(Vendor ID) and PID

( Product ID) into IC advanced settings.

Main Features

  • Light weight, suitable to be laminated to glass, acrylic or photographic film.
  • Transparent, no frame, durable and safe.
  • Accurate positioning
  • No mechanical or pressure-sensitive elements, durable and stable
  • Not sensitive to outer light, the change of light would not affect.
  • Detachable, easy for transportation

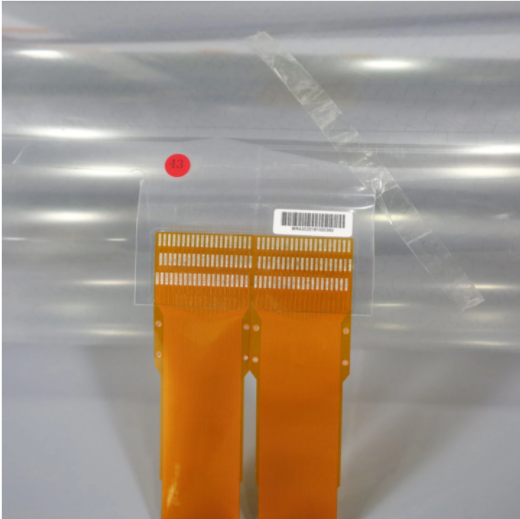

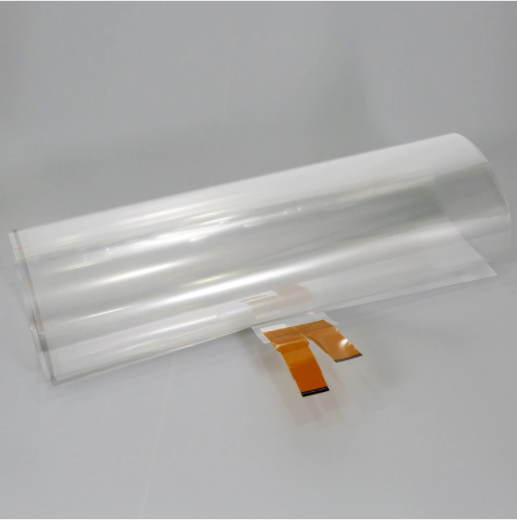

Details

10 Points Nano Touch Foil 43 Inch Nano for Commercial Industrial

10 Points Nano Touch Foil 43 Inch Nano for Commercial Industrial

Application & Contats

Interactive Multimedial Kiosk,
Self Service Terminal,
Information/Queuing/Ticket/Ordering,
Advertising Signage Displayer,
Vending Machine,
Touch All in one Computer PC,
Vending Machine,
ATM,Payment or Bank Device,
Touch Table,Touch TV,
Electronic Education Whiteboard,
AI/Intelligence Robot Equipment etc.

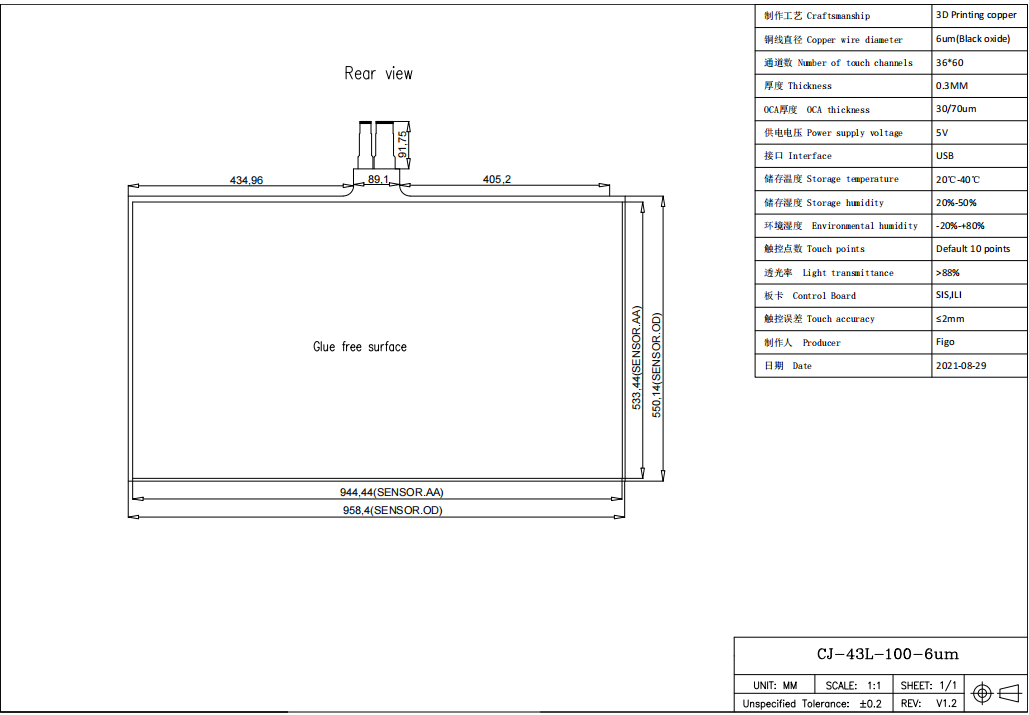

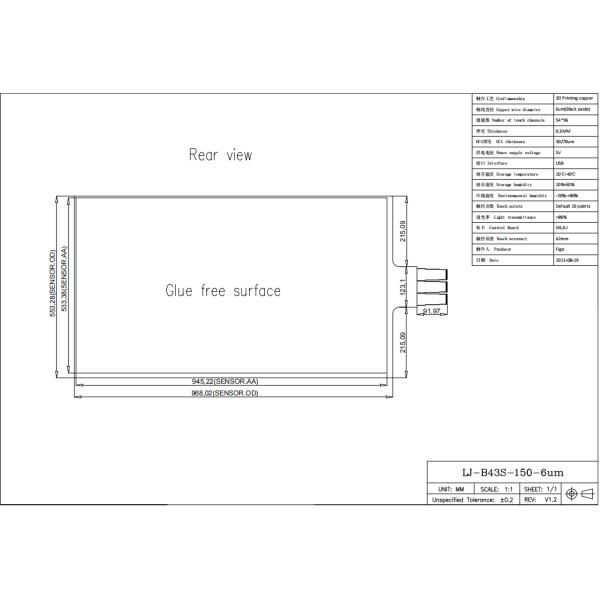

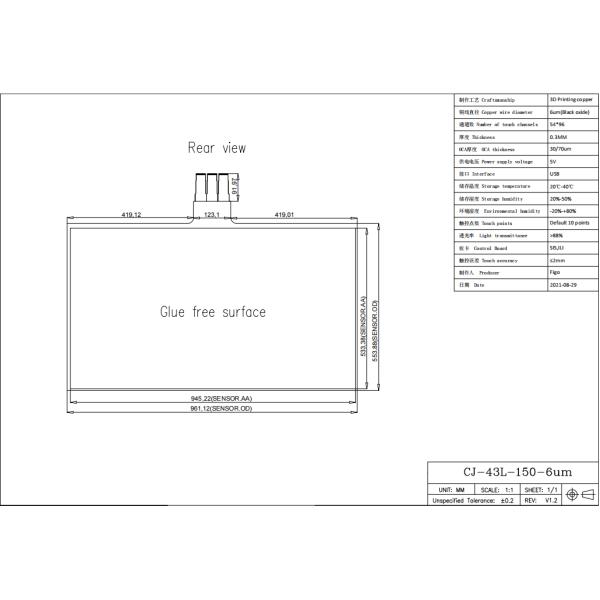

Drawing

10 Points Nano Touch Foil 43 Inch Nano for Commercial Industrial

10 Points Nano Touch Foil 43 Inch Nano for Commercial Industrial
10 Points Nano Touch Foil 43 Inch Nano for Commercial Industrial
