VGA DVI DC12V Infrared Multi Touch Screen 250cd/M2 4 Points Touch
VGA DVI DC12V Infrared Multi Touch Screen 250cd/M2 4 Points Touch
Specifications
Brand Name :
CJTOUCH
Model Number :
COT190E-IRW02
Certification :
CE FCC
Place of Origin :
Dongguan China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T,
Supply Ability :
5000 PCS per quarter
Delivery Time :
2-3days
Packaging Details :
2 Infrared touch monitors in 1carton
Type :
Infrared,touch screen monitor
Size :
19 inch
Touch point :
4 points touch
Brightness :
250cd/m2
interface :
VGA/DVI/USB/HDMI/DC12V
Application :
Indoor,industial,Vending Machine Kiosk
Description

VGA DVI Infrared IR Multi Touch Screen Monitor 250cd/M2 Wall Mount

19 inch high definition Interface infrared touchscreen IR openframe touch screen LCD monitor

Introduction

This CJTOUCH Infrared IR touch monitor is Wall mount touch monitors, Open Frame Touch monitors, Interactive Digital Signage,it is cost-effective touch solution which is designed for different Kiosks, ATM,Interactive digital, Transportation etc, and Public environments: Hotel lobbies, Office buildings, Auto dealerships, Bank, Gaming casinos, Healthcare waiting rooms, Retail stores and train stations, Industrial Control, Education, Artificial Intelligence, etc.

Infrared Touch screen monitor Feature:

  • 19" industrial grade wide temperature LCD panel, 1280x1024 5:4
  • Touch frameTechnology Multi Touch 5 Touch Points or 10 Touch Points
  • High brightness 1000 nits sunlight readable
  • Robust and durable, all-metal enclosure, sealing design, full IP67 waterproof
  • High performance mainboard, 7x24 continuous operation
  • Perfect Solutions For Use In Public
  • VESA Mounting and Rear Mounting
  • 12 Months Warranty
  • OEM/ODM& Customized Option: Brightness/Computer Integrated Inside, etc
  • Factory Competitive Price & Fast Delivery

Specification:

Display Specifications
Characteristic Value Comment
LCD Size/Type 19” SXGA Color TFT-LCD
Aspect Ratio 5:04
Active Area Horizontal 376.32 mm
Vertical 301.06 mm
Pixel Horizontal 0.294
Vertical 0.294
Panel Resolution 1280×1024 (60 Hz) Native
Display Color 16.7 Million 6-bits + Hi-FRC
Contrast Ratio 1000:01:00 Typical
Brightness 250 nits Typical
Response Time 3.6 ms Typical
Viewing Angle Horizontal 170 Typical
Vertical 160
Video Signal Input VGA and DVI and HDMI optional
Physical Specifications
Dimensions Width 417.6 mm
Height 342.5 mm
Depth 42.5 mm
Weight Net Weight 7 kgs Shipping Weight 9 kgs
Box Dimensions Length 500 mm
Width 450 mm
Height 200 mm
Electrical Specifications
Power Supply DC 12V 4A Power Adapter Included
100-240 VAC, 50-60 Hz Plug Input
Power Consumption Operating 38 W Typical
Sleep 3 W
Off 1 W
Touch Screen Specifications
Touch Technology Infrared 4 touch point
Touch Interface USB (Type B)
Controller Model Number HID plug and play
OS Supported Plug and Play Windows All (HID) ,Linux (HID) (Android Option)
Driver Calibration Tool Offered
Environmental Specifications
Condition Specification
Temperature Operating -10°C ~+ 50°C
Storage -20°C ~ +70°C
Humidity Operating 20% ~ 80%
Storage 10% ~ 90%
MTBF 50000 Hrs at 25°C

Feature of PCAP Touch Monitor

Lens features

Shape : Irregular and hole

Color: Silk printing, Logo

Glass Materials: Glass, PMMA

Treatments: AG, AR, AF, Anti-explosion

Thickness: 0. 55mm.0.7mm

1.0mm, 1.1mm, 1.8mm, 2.omm,

3.0mm, 4. 0mm, 5. 0mm, 6.0mm

Sensor features

Materials ; Glass, Film, Film+Film

FPC: Shape design optional

IC: EETI, ILITEK, Goodix,

Focalteck, Cypress

Interface: 12C, USB, RS232

Thickness: 0.005mm, 0.125mm,

0.4mm, 0.55mm, 0.7mm, 1.1mm

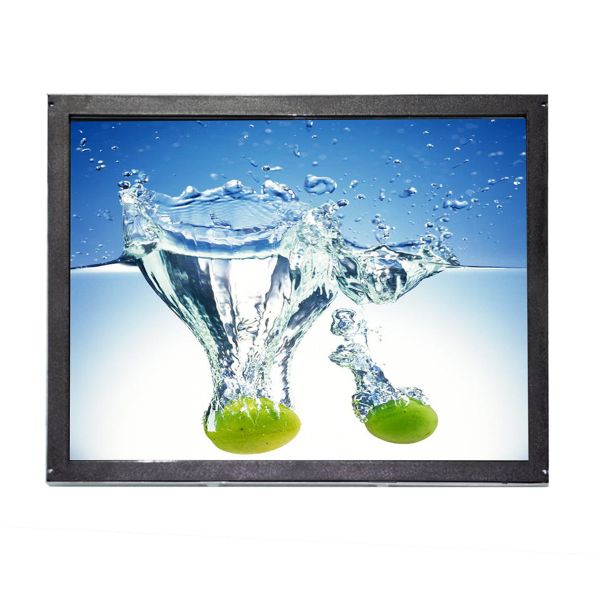

Product Picture

VGA DVI DC12V Infrared Multi Touch Screen 250cd/M2 4 Points TouchVGA DVI DC12V Infrared Multi Touch Screen 250cd/M2 4 Points Touch

Drawing :

VGA DVI DC12V Infrared Multi Touch Screen 250cd/M2 4 Points Touch
