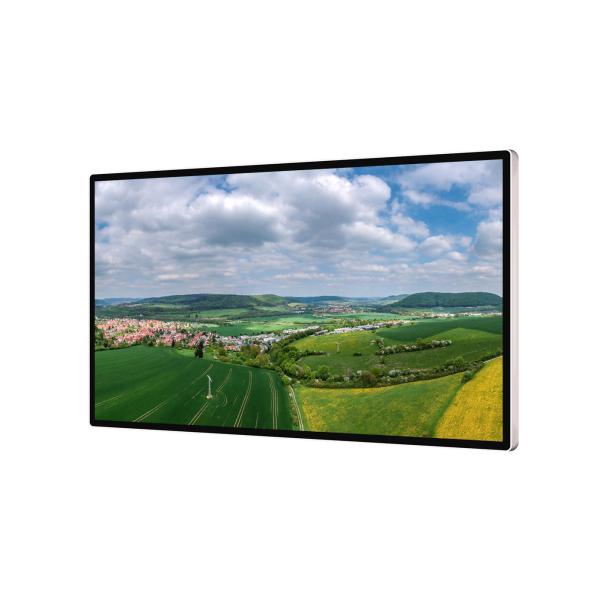

2K / 4K PCAP Interactive Touch Screen Display 43 inch For Education
2K / 4K PCAP Interactive Touch Screen Display 43 inch For Education
2K / 4K PCAP Interactive Touch Screen Display 43 inch For Education
2K / 4K PCAP Interactive Touch Screen Display 43 inch For Education
Specifications
Brand Name :
CJTOUCH
Model Number :
CCT430-CYK
Certification :
CE / FCC / RoHS
Place of Origin :
Dongguan , China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500pcs per week
Delivery Time :
8 work days
Packaging Details :
1 set in 1 crate
type :
PCAP Touch Screen Education Board
CPU :
Optional I3/I5/I7
System :
Android + Windows
Touch Support :
Max. 20 points touch
Brightnes :
350cdm
Resolution :
2K / 4K
Surface hardness :
Mohs 7
Power :
≤120W
Description

43 Inch Lcd Touchscreen Education Display IP65 High Clarity Intelligent PCAP AIO Monitor Waterproof Dustproof Panel

Features Of Touch Screen Teaching Board

Touch Screen Teaching Board is an interactive Andriod machine, it built-in with LCD/LED and touch screen (and PC for optional). We use the most popular technology capacitive touch to achieve interaction between users and the monitor.

  • Connect with built-in or outer PC, it is a large touch PC, fingers to control and operate the PC to present advertisement, conference PPT, classroom courses, play movies and etc
  • Android+Windows system intelligent interconnection. Provide optional computer configuration I3/I5/I7, with high-performance computing and graphics;
  • Use the whiteboard cross system for education and meetings;
  • High-definition LCD high-definition screen, high-definition display,
  • PCAP touch screen Multi-point 20-point touch
  • The use of toughened glass can achieve high durability and destructive resistance, and the waterproof surface structure can reach IP65 standard, which can be effectively waterproof, dustproof and moisture-proof
  • Wall-mounted advertising machine, simple operation, long standby time, suitable for indoor and outdoor, wide range, easy to use, widely used in education/information kiosks, etc.;
  • Optional mobile bracket, more convenient to use in different occasions;

Specifications Of Touch Screen Teaching Board

Android

CPU

Quad-core ARM1.7,1.8GHz

RAM

2G/4G (can optional)

Memory

8GB/16GB/32GB/64G (can optional)

HDMI Interface

HDMI output * 1

TF card Interface

TF card * 1,(Expandable to 64GB)

USB Interface

USB*2 (USB Host*1,SUB OTG*1)

RJ-45 Interface

network interface *1

headphone interface

3.5mm Stereo Headphone Output *1

Windows

CPU

Intel Core I3 I5 I7(can optional)

Memory

standard 4G/8G DDR3(can optional)

Storage

128G/256G/512G SSD MSATA(can optional)

OS

Windows 7/Windows 10(can optional)

Network interface*1

1* RTL8111E Ethernet chips,support remote wake up

VGA interface

1*VGA DB15 interface

HDMI interface

1*HDMI 1.4 interface

USB interface

2*USB3.0 interface 2*USB2.0 interface

Audio interface

1*LIN-OUT 1*MIC-IN

Touch

Touch technology

Capacitive induction technology

Multi touch

Max. Support 20 points touch

Writing style

Use your fingers or other opaque sensing media

Durability

>80 million single touch

Response Time

8ms

Touch deviation

<2mm

Touch screen glass

Fully tempered AG anti-glare glass,Transmittance : >90%

Surface hardness

Mohs 7
Display LCD Panel 43" LCD HD screen
Resolution 1920*1080/2160*3840(2K/4K can optional)
Visual area 938*528 mm
Viewing angle 165/165/150/150(L/R/U/D)
Display mode Black , IPS
Contrast ratio 1000:1
Brightness 350cdm
Screen scale 16:09
Net wort WiFi Support WIFI-2.4G (Expandable to BT-4.0)
Ethernet 10M/100M Network port
Bluetooth Bluetooth 4.0
Media play Video format Support RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4 ect.
Audio format MP3/WMA/AAC etc.
Picture format Support BMP,JPEG,PNG,GIF ect.
Other Loudspeaker 8 ohms 5 watts
OSD language Multilingual OSD operations in English and Chinese
Input voltage Alternating current:100～240v 50/60HZ
Power ≤120W
Use environment Operating stability 0--50℃/relative humidity≤80%/storage humidity -10～+60℃
Authentication CE/FCC/RoHS
Accessories Instruction manual Standard configuration
Power cable National standard Power cable 1.8 metre
Package size Carton size 800x525x140mm

2K / 4K PCAP Interactive Touch Screen Display 43 inch For Education

2K / 4K PCAP Interactive Touch Screen Display 43 inch For Education

2K / 4K PCAP Interactive Touch Screen Display 43 inch For Education

Drawing Of Touch Screen Teaching Board

2K / 4K PCAP Interactive Touch Screen Display 43 inch For Education
