32'' Touch Screen Teaching Board , 350cdm Advertising Display Monitor
32'' Touch Screen Teaching Board , 350cdm Advertising Display Monitor
32'' Touch Screen Teaching Board , 350cdm Advertising Display Monitor
32'' Touch Screen Teaching Board , 350cdm Advertising Display Monitor
Specifications
Brand Name :
CJTOUCH
Model Number :
CCT320-CYK
Certification :
CE / FCC / RoHS
Place of Origin :
Dongguan , China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500pcs per week
Delivery Time :
8 work days
Packaging Details :
1 set in 1 crate
type :
PCAP Touch Screen Education Board
CPU :
Intel Core I3 I5 I7 ( Optional )
System :
Android + Windows
Touch Support :
Max. 20 points touch
Brightnes :
350cdm
Resolution :
2K / 4K
Surface hardness :
Mohs 7
Power :
≤120W
Description

32 Inch Lcd PCAP Touch Screen Education Board Display IP65 Black High Clarity Advertising AIO Monitor Waterproof Panel

Features Of Touch Screen Teaching Board

  • Android + Windows system intelligent interconnection;
  • Use the whiteboard Cross-system for education and meeting;

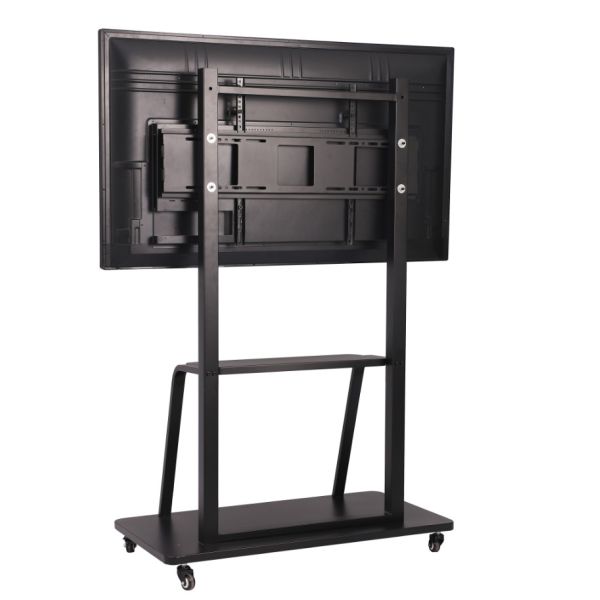

  • Optional mobile stand , more convenient to use on different occasions;
  • Provide optional computer configuration I3/I5/I7,With high-performance computing and graphics
  • LCD HD Screen with high clarity,high definition display, fashionable appearance
  • PCAP Touch screens multi 20points touch
  • With tempered glass can do high durability and vandal resistance,Surface Structure Waterproof can meet IP65 standard
  • Wall-mounted advertising machine, easy to operate.Long time standby, suitable for indoor and outdoor,Widely used and convenient,Widely used in education / kiosks ect;

Specifications Of Touch Screen Teaching Board

Android

CPU

Quad-core ARM1.7,1.8GHz

RAM

2G/4G (can optional)

Memory

8GB/16GB/32GB/64G (can optional)

HDMI Interface

HDMI output * 1

TF card Interface

TF card * 1,(Expandable to 64GB)

USB Interface

USB*2 (USB Host*1,SUB OTG*1)

RJ-45 Interface

network interface *1

headphone interface

3.5mm Stereo Headphone Output *1

Windows

CPU

Intel Core I3 I5 I7(can optional)

Memory

standard 4G/8G DDR3(can optional)

Storage

128G/256G/512G SSD MSATA(can optional)

OS

Windows 7/Windows 10(can optional)

Network interface*1

1* RTL8111E Ethernet chips,support remote wake up

VGA interface

1*VGA DB15 interface

HDMI interface

1*HDMI 1.4 interface

USB interface

2*USB3.0 interface 2*USB2.0 interface

Audio interface

1*LIN-OUT 1*MIC-IN

Touch

Touch technology

Capacitive induction technology

Multi touch

Max. Support 20 points touch

Writing style

Use your fingers or other opaque sensing media

Durability

>80 million single touch

Response Time

8ms

Touch deviation

<2mm

Touch screen glass

Fully tempered AG anti-glare glass,Transmittance : >90%

Surface hardness

Mohs 7

Display

LCD Panel

32"LCD HD screen

Resolution

1920*1080/2160*3840(2K/4K can optional)

Visual area

697.7*392.30 mm

Viewing angle

165/165/150/150(L/R/U/D)

Display mode

Black , IPS

Contrast ratio

1000:1

Brightness

350cdm

Screen scale

16:09

Net wort

WiFi

Support WIFI-2.4G (Expandable to BT-4.0)

Ethernet

10M/100M Network port

Bluetooth

Bluetooth 4.0

Media play

Video format

Support RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4 ect.

Audio format

MP3/WMA/AAC etc.

Picture format

Support BMP,JPEG,PNG,GIF ect.

Other

Loudspeaker

8 ohms 5 watts

OSD language

Multilingual OSD operations in English and Chinese

Input voltage

Alternating current:100～240v 50/60HZ

Power

≤120W

Use environment

Operating stability 0--50℃/relative humidity≤80%/storage humidity -10～+60℃

Authentication

CE/FCC/RoHS

Accessories

Instruction manual

Standard configuration

Power cable

National standard Power cable 1.8 metre

Package size

Carton size

800x525x140mm

32'' Touch Screen Teaching Board , 350cdm Advertising Display Monitor

32'' Touch Screen Teaching Board , 350cdm Advertising Display Monitor

32'' Touch Screen Teaching Board , 350cdm Advertising Display Monitor

Drawing Of Touch Screen Teaching Board

32'' Touch Screen Teaching Board , 350cdm Advertising Display Monitor
