Infrared Touch Screen Teaching Board , 20 Points 86'' All In One Whiteboard
Infrared Touch Screen Teaching Board , 20 Points 86'' All In One Whiteboard
Infrared Touch Screen Teaching Board , 20 Points 86'' All In One Whiteboard
Infrared Touch Screen Teaching Board , 20 Points 86'' All In One Whiteboard
Infrared Touch Screen Teaching Board , 20 Points 86'' All In One Whiteboard
Infrared Touch Screen Teaching Board , 20 Points 86'' All In One Whiteboard
Specifications
Brand Name :
CJTOUCH
Model Number :
CCT860-IYK
Certification :
CE, FCC, RoHS
Place of Origin :
Dongguan,China
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, , T/T, Western Union
Supply Ability :
500pcs per Week
Delivery Time :
12 days
Packaging Details :
1 set in 1 carton
Type :
Infrared Touch Tesching AIO Kiosk
Resolution :
2K , Optional 4K
Android :
ARM1.7GH
Windows :
Optional
Touch :
4096*4096 20 points
Visual area :
1895 x 1066(mm)
Contrast ratio :
1000 : 1
Power(w) :
≤450W
Description

86 Inch Infrared Touch Tesching AIO Kiosk 20 Points Intelligent Interconnection Education Board OPS Whiteboard

Detail Features of Touch Screen Teaching Board

Five-in-one smart Android motherboard with built-in wireless projection function;
Standard Android and Windows dual systems, seamless switching between the two systems, 2 external interfaces such as HDMI, so that the product can be used in a variety of different environments;
CPU, memory, hard disk and other computer configurations can be freely matched and customized;
Using large-size high-definition LCD screen, the imaging effect is delicate and the picture quality is clear. Standard LCD screen resolution 1920*1080, optional 4K ultra-high-definition LCD screen;
4096*4096 infrared touch function, 20-point touch, whether it is games, classrooms, or meetings, it can meet the needs of multiple people at the same time;
Using 3mm tempered glass, it has better durability, anti-explosion ability and anti-damage ability, and can also customize anti-glare and anti-blue light functions;
The smart whiteboard function can be used across systems and can be flexibly used for conference presentations and teaching presentations
The standard configuration is a wall-mounted all-in-one machine, which can be combined into a movable floor-standing all-in-one machine by customizing an exclusive floor stand, which can be flexibly moved to any place.
Has good heat dissipation performance, long standby time, suitable for indoor and outdoor;

Widely Application of Touch Screen Teaching Board

  • Exhibition
  • Information bulletin board;
  • Classroom education, online education;
  • Conference presentation, video conference;
  • Restaurant dishes and price list display.
  • Shopping mall product display board；
  • Kiosk;
  • etc

Detail Specifications of Touch Screen Teaching Board

android CPU Quad-core ARM1.7,1.8GHz
RAM 2G/4G
Storage 8GB/16GB/32GB/64G
HDMI Interface HDMI*1
TF Card Interface TF Card*1,(Supports a maximum expansion of 64GB)
USB Interface USB*2 (USB Host*1,SUB OTG*1)
RJ-45 Interface Network Cable Input*1
Headphone Jack 3.5mm stereo headset output*1
windows CPU Intel core I3/I5/I7
Memory 4G/8G DDR3
Hard Disk 128G/256G/512G SSD
OS Windows 7/Windows 10
Cable Interface 1* RTL8111E (Gigabit network card chip, supporting network wake up)
VGA Interface 1*VGA DB15
HDMI Interface 1*HDMI 1.4
USB Interface 2*USB3.0 2*USB2.0
Audio Interface 1*LIN-OUT 1*MIC-IN
Touch Identification principle Infrared recognition
Multi touch 20 points touch
Anti-light interference The light shines on the screen at various angles and can be used normally
Writing style Finger, pen (any diameter>6mm opaque object)
Touch accuracy More than 95% of the touch area is ± 2mm
Communication mode Full speed USB2.0 / 3.0
Surface hardness of writing screen Physical toughened Leung's class 7 explosion proof
Touch life The service life is more than 80000 hours
Display LCD panel 86"LCD HD screen
Resolution 1920*1080/2160*3840(2K/4K option)
Visual area 1895 x 1066(mm)
Viewing angle 165/165/150/150(L/R/U/D)
Display mode IPS
Contrast ratio 1000:1
Brightness 350cdm
Screen scale 16:09
Network WiFi Support WIFI-2.4G (Extensible BT-4.0)
Ethernet 10M/100M Network port
Bluetooth Bluetooth 4.0
Media play Video format Support RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4 etc.
Audio format MP3/WMA/AAC etc.
Picture format Support BMP,JPEG,PNG,GIF ect.
Other Loudspeaker 8 ohms 10 watts
OSD language Multilingual OSD operations in English and Chinese
Input voltage Alternating current:100～240v 50/60HZ
Power ≤450W
Use environment Operating stability 0-50 degrees/relative humidity ≤80% /storage humidity -10~ + 60 degrees C
Authentication CE/FCC/RoHS
Accessories Instruction manual Standard
Power cord Gb power cord 1.8 meters

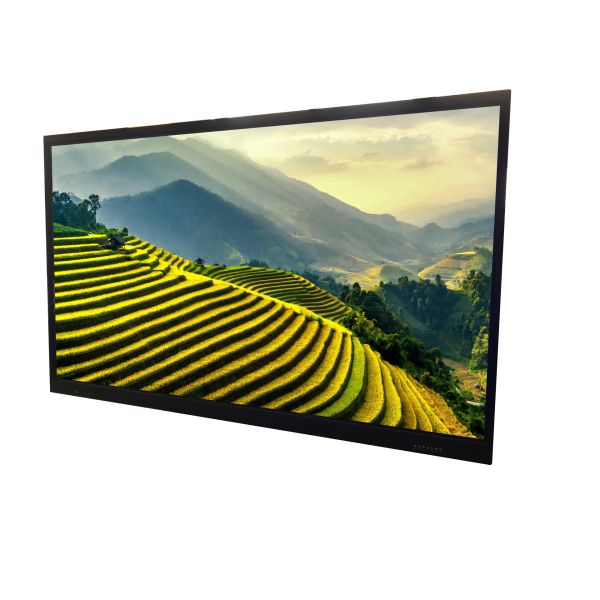

Pictures of Touch Screen Teaching Board

Infrared Touch Screen Teaching Board , 20 Points 86'' All In One Whiteboard

Infrared Touch Screen Teaching Board , 20 Points 86'' All In One Whiteboard

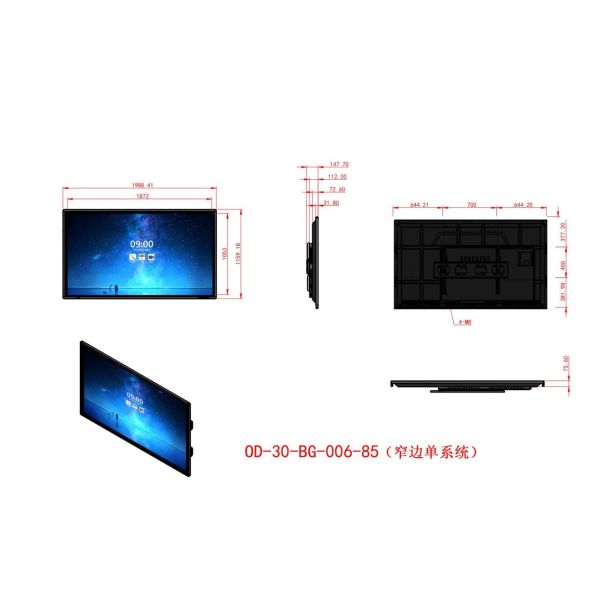

Drawings of Touch Screen Teaching Board

Infrared Touch Screen Teaching Board , 20 Points 86'' All In One Whiteboard
