Projected Capacitive Pcap Touch Screen Monitor 10 Point Multi Touch Screen
Projected Capacitive Pcap Touch Screen Monitor 10 Point Multi Touch Screen
Specifications
Brand Name :
CJTOUCH
Model Number :
COT121-CFF03
Certification :
RoHS, CE, FCC
Place of Origin :
Guangdong, China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5000pcs per quarter
Delivery Time :
5-8 working days
Packaging Details :
Carton package, 2 pcs in a carton
Series :
Capacitive touch monitors
Touch System Interface :
USB interface
Resolution :
800×600@60Hz
Response Time(Rising) :
10/25 (Typ.)(Tr/Td) ms
Luminance(cd/m2) :
400
Power Supply :
DC 12V 4A
Description

Multi-touch 12.1 inch PCAP Touch Monitor industrial tft lcd display touch screen monitor capacitive technology

Technology:

CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most cutting-edge solutions in the industry.
Surface Acoustic Wave (SAW) touch technology
Infrared touch technology
Projected Infrared Touch technology

​12.1 inch PCAP touch monitor Features:

  • Using new industrial TFT LCD screen
  • Projected capacitive touch screen with 10-point tempered cover lens option.
  • The screen is full flat with IP65 waterproof resistance.
  • The material is Aluminum alloy.
  • Using Industrial grade motherboard with reliable performance.
  • Our products have got FCC,ROHS,CE,CCC,ISO certification approval.
  • Satisfactory after-sales service

12.1 inch Capacitive touch monitor specification :

General
Model COT121-CFF03
Series Flat screen and waterproof
Monitor Dimensions Width: 293.5mm Height: 224mm Depth: 40mm
LCD Type 12.1” Active matrix TFT-LCD
Video Input VGA and DVI H-DMI
OSD controls Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply

Type: External brick

Input (line) voltage: 100-240 VAC, 50-60 Hz

Output voltage/current: 12 volts at 4 amps max
Mount Interface

1)VESA 75mm and 100mm

2)Mount bracket, horizontal or vertical
LCD Specification
Active Area(mm) 246.0(H)×184.5(V)
Resolution 800×600@60Hz
Dot Pitch(mm) 0.3075×0.3075
Nominal Input Voltage VDD +3.3V(Typ)
Viewing angle (v/h) 80/80/50/60 (Typ.)(CR≥10)
Contrast 600:1
Luminance(cd/m2) 400 (Typ.)
Response Time(Rising/Falling) 10/25 (Typ.)(Tr/Td) ms
Support Color 16.2M colors
Backlight MTBF(hr) 30000
Touchscreen Specification
Type Cjtouch Projected Capacitive touch screen
Resolution 10points touch
Light Transmission 92%
Touch Life Cycle 50 millions
Touch Response time 8ms
Touch System Interface USB interface
Power consumption +5V@80mA
External AC Power Adapter
Output DC 12V /4A
Input 100-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C
Environment
Operating Temp. 0～50°C
Storage Temp. -20～60°C
Operating RH: 20%～80%
Storage RH: 10%～90%

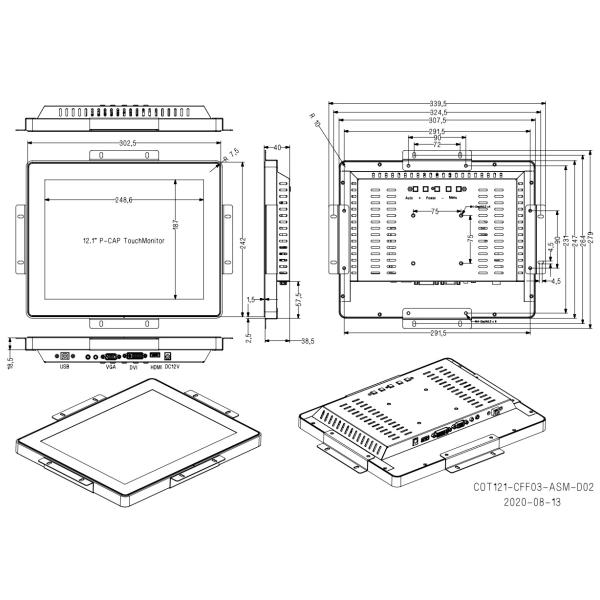

12.1 inch PCAP touch monitor drawing:

Projected Capacitive Pcap Touch Screen Monitor 10 Point Multi Touch Screen

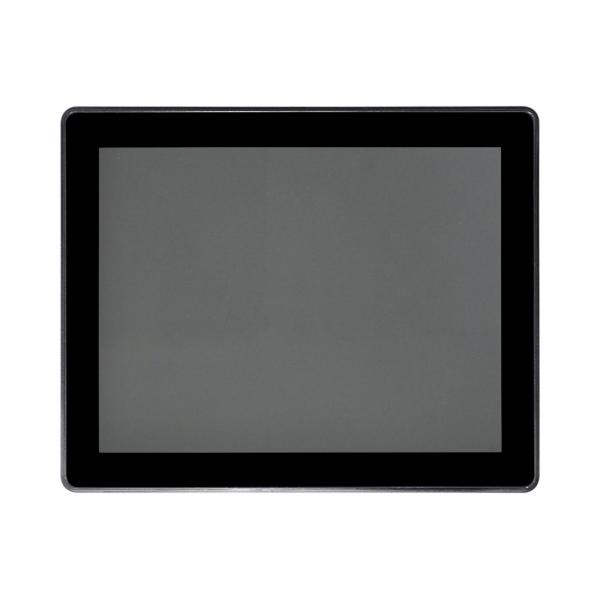

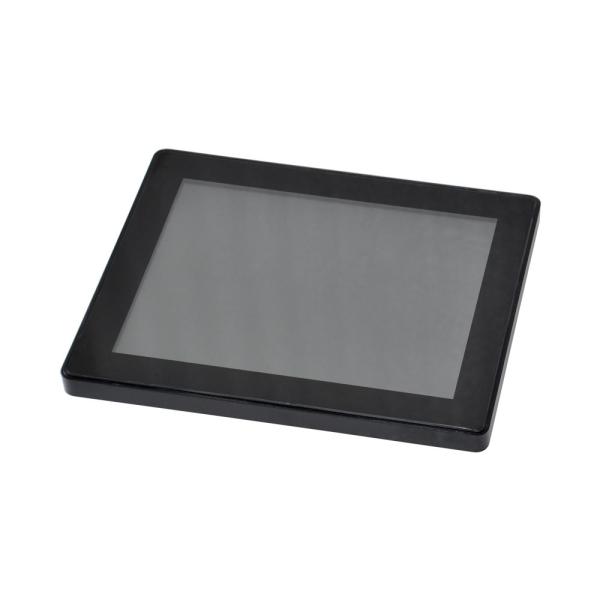

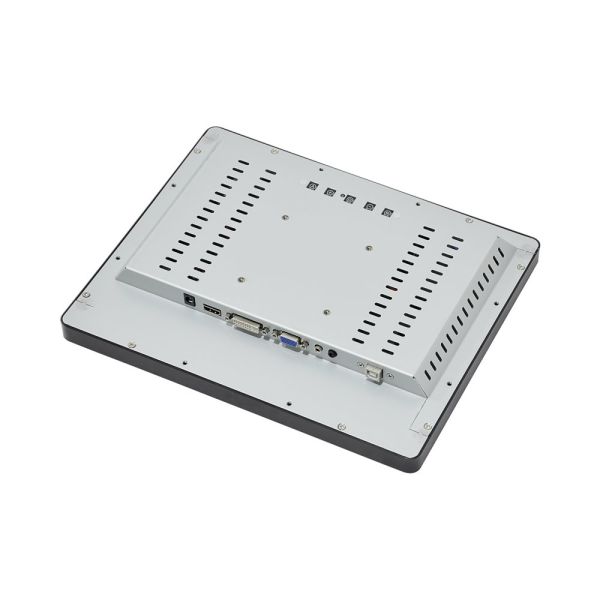

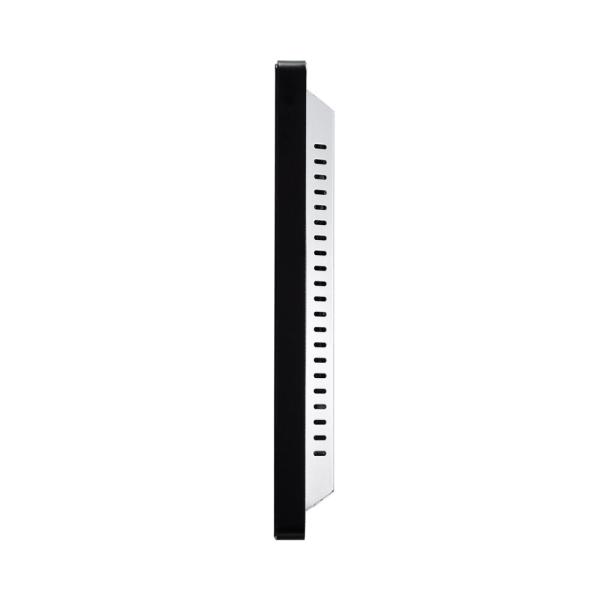

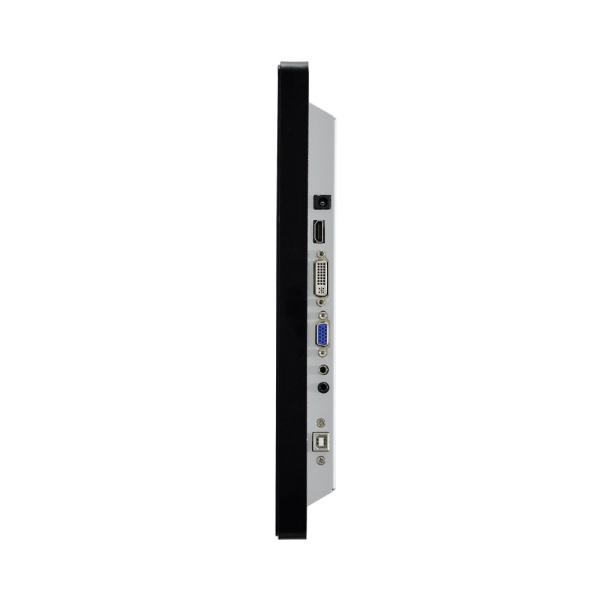

12.1 inch Capacitive display monitor pictures:

Projected Capacitive Pcap Touch Screen Monitor 10 Point Multi Touch ScreenProjected Capacitive Pcap Touch Screen Monitor 10 Point Multi Touch ScreenProjected Capacitive Pcap Touch Screen Monitor 10 Point Multi Touch ScreenProjected Capacitive Pcap Touch Screen Monitor 10 Point Multi Touch Screen
