Cjtouch 21.5inch PCAP Touch Monitor Industrial Touchscreen Monitor
Cjtouch 21.5inch PCAP Touch Monitor Industrial Touchscreen Monitor
Cjtouch 21.5inch PCAP Touch Monitor Industrial Touchscreen Monitor
Cjtouch 21.5inch PCAP Touch Monitor Industrial Touchscreen Monitor
Cjtouch 21.5inch PCAP Touch Monitor Industrial Touchscreen Monitor
Cjtouch 21.5inch PCAP Touch Monitor Industrial Touchscreen Monitor
Specifications
Brand Name :
CJTOUCH
Model Number :
COT215-CFK03
Certification :
RoHS, CE, FCC
Place of Origin :
Guangdong, China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5000pcs per quarter
Delivery Time :
5-8 working days
Packaging Details :
Carton package, 2 pcs in a carton
Series :
Projected Capacitive
Resolution :
1920(RGB)×1080 (FHD)(60Hz)
Viewing angle (v/h) :
178/178
Contrast :
1000:1
Luminance(cd/m2) :
250
Response Time(Rising) :
14ms
Multi touch :
10points touch
Touch System Interface :
USB interface
Warranty :
1 year
Description

Cjtouch 21.5inch PCAP Touch Monitor Industrial Touchscreen Monitor

Experience:
Established in 2006 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help seamlessly integrate our products into your total solution.
Over 10 years of combined experience in researching and developing touch-enabled screens and monitors.
Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.

What We Offer:
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other international certifications.
Single or Multi-touch screens (custom sizes available)
Single or Multi-touch monitors (custom sizes and functions available)
All-in-one computers

Custom services

21.5 inch PCAP touch monitor Features:

Advantage of our projected capacitive touch monitor:

· Industrial Desgin With Excellent Durablity

· Projected capacitive touch Technology Multi Touch 10 Touch Points

· IP65 Touch Screen Surface Water-Proof Sealled

· 3MM Enhanced Glass With Vandal Proof Resistance

· High Light Transmission Clear Glass

· Easy to Use:Plug and Works on Windows/Linux/(Android)

· Perfect Solutions For Use In Public

· VESA Mounting and Rear Mounting

· OEM/ODM& Customized Option: Brightness/Computer Integrated Inside/Etc

· Factory Competitive Price and Fast Delivery

21.5 inch Capacitive touch monitor specification :

Display Specifications
Characteristic Value Comment
LCD Size/Type 21.5" a-Si TFT-LCD
Aspect Ratio 16:9
Active Area Horizontal 476.64 mm
Vertical 268.11 mm
Pixel Horizontal 0.24825
Vertical 0.24825
Panel Resolution 1920(RGB)×1080 (FHD)(60Hz) Native
Display Color 16.7 Million 6-bits + Hi-FRC
Contrast Ratio 1000:1 Typical
Brightness 250 nits Typical
Response Time 14 ms Typical
Viewing Angle Horizontal 178 Typical
Vertical 178
Video Signal Input VGA and DVI and HDMI
Physical Specifications
Dimensions Width 515 mm
Height 310 mm
Depth 44.9mm
Weight Net Weight 7 kgs Shipping Weight 9.5 kgs
Box Dimensions Length 660 mm
Width 440 mm
Height 180 mm
Electrical Specifications
Power Supply DC 12V 4A Power Adapter Included
100-240 VAC, 50-60 Hz Plug Input
Power Consumption Operating 38 W Typical
Sleep 3 W
Off 1 W
Touch Screen Specifications
Touch Technology Project Capacitive Touch Screen 10 Touch Point
Touch Interface USB (Type B)
OS Supported Plug and Play Windows All (HID) ,Linux (HID) (Android Option)
Driver Driver Offered
Environmental Specifications
Condition Specification
Temperature Operating -10°C ~+ 50°C
Storage -20°C ~ +70°C
Humidity Operating 20% ~ 80%
Storage 10% ~ 90%
MTBF 30000 Hrs at 25°C

Components:

USB Cable 180cm*1 Pcs,

VGA Cable 180cm*1 Pcs,

Power Cord with Switching Adapter *1 Pcs,

Bracket*2 Pcs

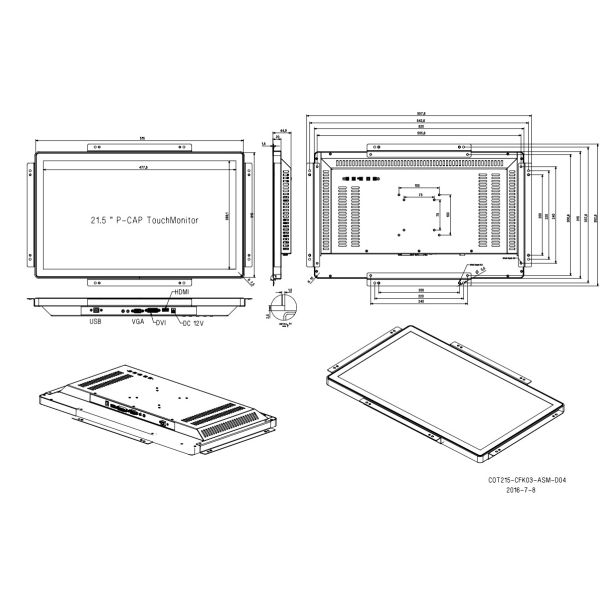

21.5 inch PCAP touch monitor drawing:

Cjtouch 21.5inch PCAP Touch Monitor Industrial Touchscreen Monitor

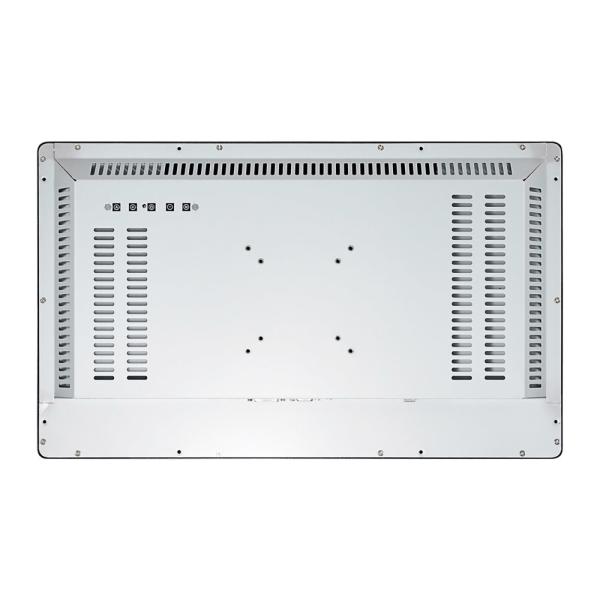

21.5 inch Capacitive display monitor pictures:

Cjtouch 21.5inch PCAP Touch Monitor Industrial Touchscreen MonitorCjtouch 21.5inch PCAP Touch Monitor Industrial Touchscreen MonitorCjtouch 21.5inch PCAP Touch Monitor Industrial Touchscreen Monitor
