19.5Inch TFT LCD PCAP Touch Monitor Screen With Mount Bracket
19.5Inch TFT LCD PCAP Touch Monitor Screen With Mount Bracket
19.5Inch TFT LCD PCAP Touch Monitor Screen With Mount Bracket
19.5Inch TFT LCD PCAP Touch Monitor Screen With Mount Bracket
19.5Inch TFT LCD PCAP Touch Monitor Screen With Mount Bracket
19.5Inch TFT LCD PCAP Touch Monitor Screen With Mount Bracket
Specifications
Brand Name :
CJTOUCH
Model Number :
COT195-CFK03
Certification :
RoHS, CE, FCC
Place of Origin :
Guangdong, China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5000pcs per quarter
Delivery Time :
5-8 working days
Packaging Details :
Carton package, 2 pcs in a carton
Series :
Water-proof and Flat screen
Active Area(mm) :
437.2 × 239.6 mm (H×V)
Resolution :
1600(RGB)×900, HD+
Viewing angle (v/h) :
85/85/80/80 (Typ.)(CR≥10)
Contrast :
1000:1
Luminance(cd/m2) :
250
Response Time(Rising) :
3.8/1.2 (Typ.)(Tr/Td) ms
Touch System Interface :
USB interface
Support Color :
16.7M
Warranty :
1 year
Description

19.5 inch Flat Screen multi-touch PCAP Touch Monitor with industrial tft lcd mount bracket provided

Dongguan CJTouch Electronic Co., Ltd. is a leading provider of Touchscreen, Touch monitor and All-in-one computers. With advanced, cost-effective touch solutions, CJTouch believes in engaging with customers while providing customized services. (More information : www.cjtouch.com )

Technology:

CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most cutting-edge solutions in the industry.
Surface Acoustic Wave (SAW) touch technology
Infrared touch technology
Projected Infrared Touch technology

19.5 inch PCAP touch monitor Features:

  • Using new industrial TFT LCD screen
  • Projected capacitive touch screen with 10-point tempered cover lens option.
  • The screen is full flat with IP65 waterproof resistance.
  • The material is Aluminum alloy.
  • Using Industrial grade motherboard with reliable performance.
  • Our products have got FCC,ROHS,CE,CCC,ISO certification approval.
  • Satisfactory after-sales service

19.5 inch Capacitive touch monitor specification :

General
Model COT195-CFK03
Series Flat screen
LCD Type 19.5 inch a-Si TFT-LCD

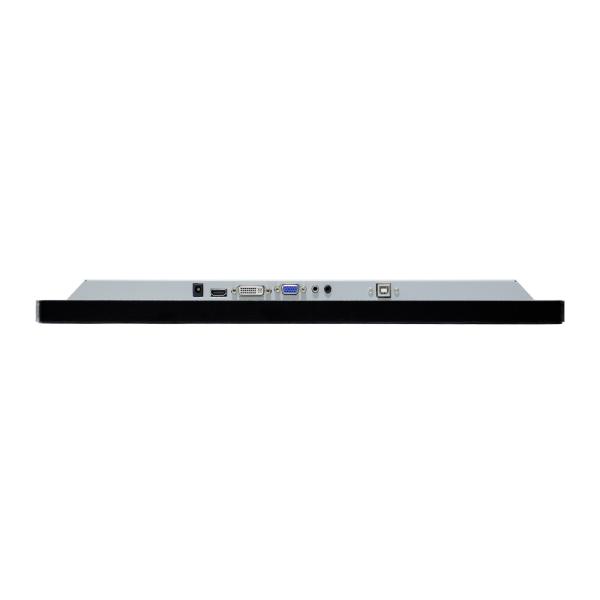

Video Input VGA and DVI H-DMI
OSD controls Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply

Type: External brick

Input (line) voltage: 100-240 VAC, 50-60 Hz

Output voltage/current: 12 volts at 4 amps max
Mount Interface

1)VESA 75mm and 100mm

2)Mount bracket, horizontal or vertical
LCD Specification
Active Area(mm) 437.2 × 239.6 mm (H×V)
Resolution 1600(RGB)×900, HD+
Dot Pitch(mm) 0.0904×0.2626 mm (H×V)
Nominal Input Voltage +3.3V(Typ)
Viewing angle (v/h) 85/85/80/80 (Typ.)(CR≥10)
Contrast 1000 : 1 (Typ.)
Luminance(cd/m2) 250 (Typ.)
Response Time(Rising) 3.8/1.2 (Typ.)(Tr/Td) ms
Support Color 16.7M Colors
Backlight MTBF(hr) Min30000 hrs
Touchscreen Specification
Type Cjtouch Projected Capacitive touch screen
Multi touch 5/10points touch
Touch Life Cycle 10 millions
Touch Response time 8ms
Touch System Interface USB interface
Power consumption +5V@80mA
External AC Power Adapter
Output DC 12V /4A
Input 100-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C
Environment
Operating Temp. 0～50°C
Storage Temp. -20～60°C
Operating RH: 20%～80%
Storage RH: 10%～90%

Components:

USB Cable 180cm*1 Pcs,

VGA Cable 180cm*1 Pcs,

Power Cord with Switching Adapter *1 Pcs,

Bracket*2 Pcs

19.5 inch PCAP touch monitor drawing:

19.5Inch TFT LCD PCAP Touch Monitor Screen With Mount Bracket

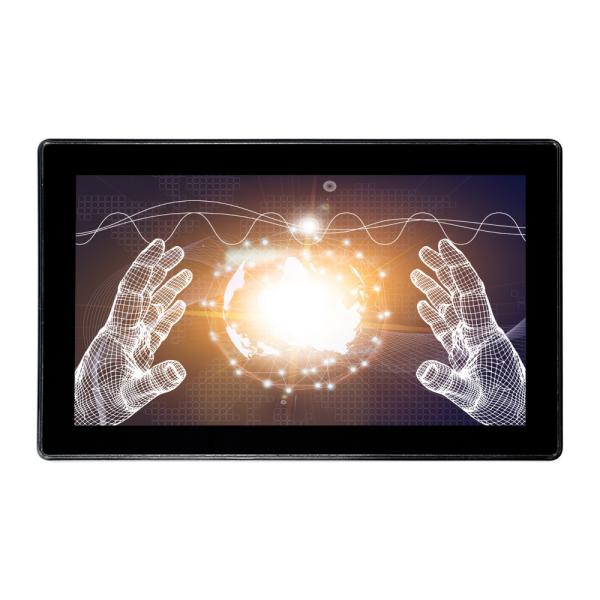

19.5 inch Capacitive display monitor pictures:

19.5Inch TFT LCD PCAP Touch Monitor Screen With Mount Bracket19.5Inch TFT LCD PCAP Touch Monitor Screen With Mount Bracket19.5Inch TFT LCD PCAP Touch Monitor Screen With Mount Bracket
