Waterproof 10 Point Multi Touch Screen , Anti Light Capacitive Multi Touch Panel
Waterproof 10 Point Multi Touch Screen , Anti Light Capacitive Multi Touch Panel
Waterproof 10 Point Multi Touch Screen , Anti Light Capacitive Multi Touch Panel
Waterproof 10 Point Multi Touch Screen , Anti Light Capacitive Multi Touch Panel
Specifications
Brand Name :
CJTOUCH
Model Number :
CPI137T00-4K-C00
Certification :
CE/FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500pcs/week
Delivery Time :
2-5 working day
Packaging Details :
1pcs or 15 pcs in a carton
Touch type :
4mm Glass PCAP touch panel
Glass :
4mm toughened glass
Size :
17.3 inch
characteristic :
Water Proof and Dust Proof
Touch Points :
10 Touch points
input voltage :
5V
Hardness :
≥6H
Screen :
Widescreen
Description

Water Proof and anti-light PCAP Touch Screen 17.3 inch Capacitive Touch Panels for Bank

Used on smart monitor , projected capacitive is the most widespread touch screen, How is the structure like?

There are various structures in projected capacitive technology. "One sheet piled-up structure" has X and Y electrodes piled on one sheet. "One sheet two-sided structure" has X and Y electrodes on its surface and backside of one sheet respectively. "Two-sheets-laminated structure" consists of two sheets facing each other with electrodes in between.

How ClearTek II Capacitive Works ?

Small amount of voltage is applied to the four corners of the touch screen .

The x.y location of the point of contact is calculated by the controller and transmitted to the PC .

The EX II Controller procider tailored firmware and fast accurate touch .

A finger touches the screen and draws a minute amount of current to the point of contact .

Capacitive touch screen technology is often recommended to customers who would like the confidence of a brand name LCD such as NEC, which the capacitive touch screen would then be retrofitted to.

Main Feature

  • High image clarity
  • Free of drift
  • Z-axis pressure recognition
  • Strong mechanical strength
  • Short response time
  • Compact size for easy integration
  • Customization available on glass sensorsize, driver, accessories

Specification of Product

Technical specification
Type Projected touch panel
Interface USB
Number of touch point 10
input voltage 5V ----
Pressure endurance value <10g
Input Hand writing or capacitive pen
Transmittance >90%
Surface Hardness ≥6H
Usage The specification is applied to transparent and handwriting input
capacitive touch panels
Application It's applied in ordinary electric equipments and automatic office facilities
Cover Lens Specification
Pressure Value 400 ~500 mPA above 6u
Ball Drop Test 130g±2g, 35cm, No damage after the impact at the central area for once.
Hardness ≥6H Pencil: 6H Pressure: 1N/45.
Environment
Working temperature and humidity -10~+60ºC, 20~85% RH
Storage temperature and humidity -10~+65ºC, 20~85% RH
Humidity resistance 85% RH, 120H
Heat resistance 65ºC, 120H
Cold resistance -10ºC, 120H
Thermal shock -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles
Anti - glare Test Incandescent lamp (220V,100W) ,
operating distance over 350mm
Altitude 3,000m
Working Environment Directly Under sunlight ,indoor and outdoor
Software(Firmware)
Scanning Auto full screen scanning
Operate system Win 7,Win 8,Win10, Andriod,Linux
Calibration tool Precalibrated & Software can be download in CJTouch Website

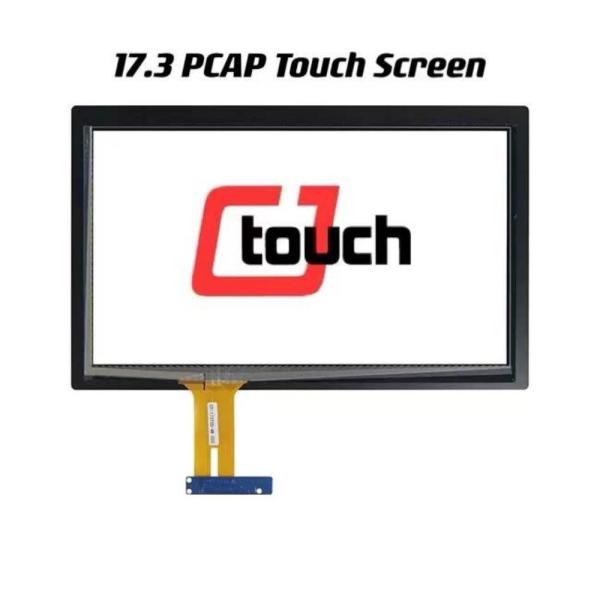

Picture of Product

Waterproof 10 Point Multi Touch Screen , Anti Light Capacitive Multi Touch Panel

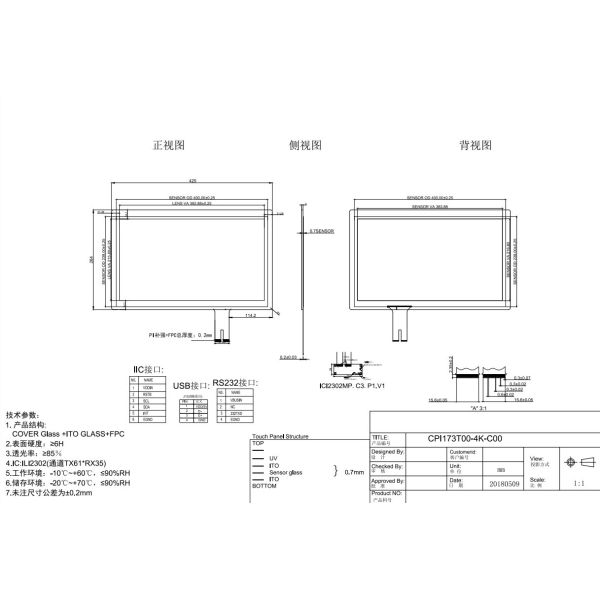

Technical Drawing

Waterproof 10 Point Multi Touch Screen , Anti Light Capacitive Multi Touch Panel
