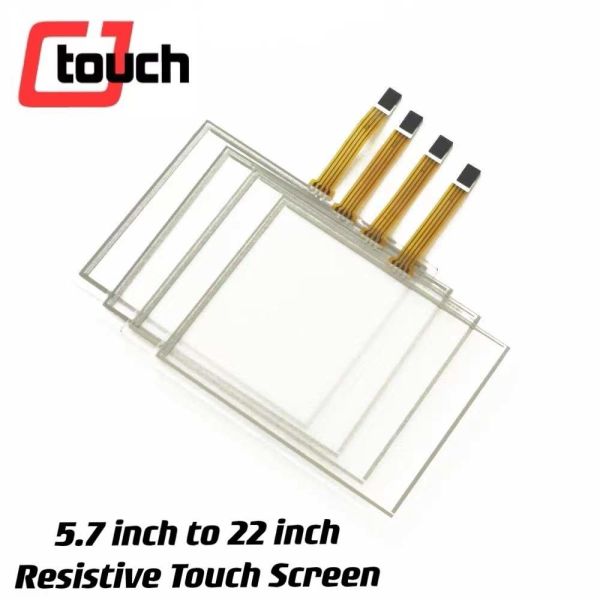

Resistive 5 Wire 4 Wire Touch Panel 5.7-22 Inch 35 Million Touches Durability
Resistive 5 Wire 4 Wire Touch Panel 5.7-22 Inch 35 Million Touches Durability
Resistive 5 Wire 4 Wire Touch Panel 5.7-22 Inch 35 Million Touches Durability
Resistive 5 Wire 4 Wire Touch Panel 5.7-22 Inch 35 Million Touches Durability
Specifications
Brand Name :
CJTOUCH
Model Number :
CJVTW4/5 104A0
Certification :
CE \ FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500pcs/week
Delivery Time :
3-5 work day
Packaging Details :
1pcs or 14 pcs in a carton
Touch :
Resistive Touch Screen
Wire :
4/5 wires
Insulation :
>20MΩ/25V(DC)
Durability :
>35 million touches
Light Transmission :
82%
Supply voltage :
DC5V
Response :
<15ms
Customized :
Support
Description

4 and 5 Wire Resistive touch screen 5.7-22 inch Resistive Touch Panel

Resistive touch screen technology

Resistive touch screen technology consists of a glass or acrylic panel that is coated with electrically conductive and resistive layers. The thin layers are separated by invisible separator dots. When operating, an electrical current moves through the screen. When pressure is applied to the screen the layers are pressed together, causing a change in the electrical current and a touch is registered.

Although clarity is less than with other touch screen types, resistive screens can be highly accurate and have the advantage of being pressure sensitive so it responds to any input device, including finger, gloved hand, or pen stylus

Resistive touch screen technology is the most cost effective technology on the market today. It is recommended when budgets do not allow more robust solutions.

Limitations of resistive touch screen technology:​

  • Can be relatively easily damaged by scratching
  • Can be relatively easily damaged by poking
  • Can be relatively easily damaged by impact

  • Not recommended for public access applications

  • Requires periodic recalibration
  • Can wear through regular use over time

Is there structural difference between 4-wire and 5-wire technologies?

Just same as analog 4-wire resistive technology, an analog 5-wire resistive sensor consists of top and bottom sheets which are facing each other with a gap in between. Unlike analog 4-wire resistive technology, electrodes are placed on four corners of the bottom sheet in analog 5-wire technology. The sensing process is as below

4 Wires Resistive Touch Panel Specification
General Size 5.7 inch To 22 inch
Fit in with Panel display device
Mechanical
Input Method Finger or gloved hand (rubber ,cloth or leather)
Active Force Stylus or Finger or Similar <45g~110g
Ball Impact ø13.0. Steel Ball/9g, Height=30cm, 1 time, no damage [Impact at center area]
Durability >35 million touches
Positional Accuracy <1.5%
Optical
Light Transmission 82%
Clear surface <3%
Anti-glare Surface <4%
Anti-Newton <10%
Gloss 90±20 gloss units tested on a hard-coated front surface Accordance with ASTM D 2457
Electrical
Supply voltage DC5V
Circuit Resistance X:20~25Ω0, Y:20~250Ω
Linearity X<1.5%, Y<1.5%
Response <15ms
Insulation >20MΩ/25V(DC)
Endurance No acting damage at DC50V/60sec.
Resolution Based on controller resolution of 4096 x 4096
Environmental
Operation Temperature -10°C ~ +60°C
Operation Humidity 20%RH ~ 85%RH, no condensing
Storage Temperature -40°C ~ +80°C
Storage Humidity 10%RH ~ 90%RH, no condensing
Waterproof Not damaged by running water applied to the active area
Reliability
Heat Cycle 70°C /240 hrs
Cold Cycle -40°C /240 hrs
Thermal Cycle -40°C ~7°0C [60 min./cycle] *10 cycles
Operationg System
Operation System Linux/ Dos / Windows ME/95/98 / NT4.0/XP/2000/ 7 /Mac OS
Warranty
Touch screen 1 years
Touch Controller 1 years

5 Wires Resistive Touch Panel Specification
General Size 10.4 inch To 22 inch
Fit in with Panel display device
Mechanical
Input Method Finger or gloved hand (rubber ,cloth or leather)
Active Force Stylus or Finger or Similar <45g~110g
Ball Impact ø13.0. Steel Ball/9g, Height=30cm, 1 time, no damage [Impact at center area]
Durability >35 million touches
Positional Accuracy <1.5%
Optical
Light Transmission 82%
Clear surface <3%
Anti-glare Surface <4%
Anti-Newton <10%
Gloss 90±20 gloss units tested on a hard-coated front surface Accordance with ASTM D 2457
Electrical
Supply voltage DC5V
Circuit Resistance X:20~25Ω0, Y:20~250Ω
Linearity X<1.5%, Y<1.5%
Response <15ms
Insulation >20MΩ/25V(DC)
Endurance No acting damage at DC50V/60sec.
Resolution Based on controller resolution of 4096 x 4096
Environmental
Operation Temperature -10°C ~ +60°C
Operation Humidity 20%RH ~ 85%RH, no condensing
Storage Temperature -40°C ~ +80°C
Storage Humidity 10%RH ~ 90%RH, no condensing
Waterproof Not damaged by running water applied to the active area
Reliability
Heat Cycle 70°C /240 hrs
Cold Cycle -40°C /240 hrs
Thermal Cycle -40°C ~7°0C [60 min./cycle] *10 cycles
Operationg System
Operation System Linux/ Dos / Windows ME/95/98 / NT4.0/XP/2000/ 7 /Mac OS
Warranty
Touch screen 1 years
Touch Controller 1 years

Picture of Product

Resistive 5 Wire 4 Wire Touch Panel 5.7-22 Inch 35 Million Touches Durability

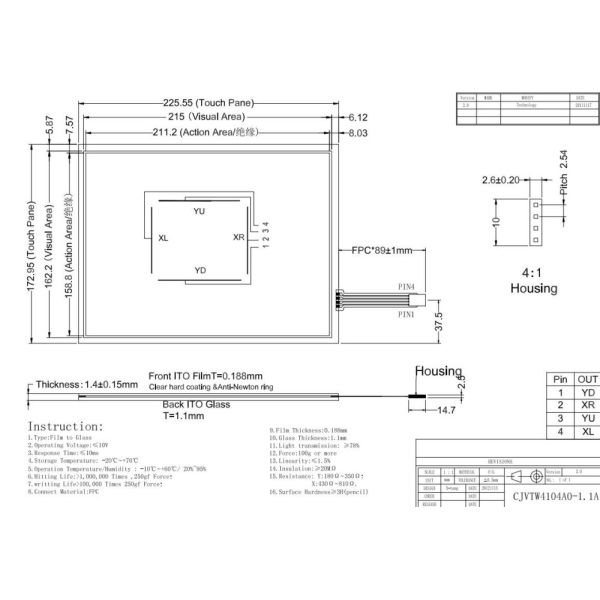

4 Wire Drawing

Resistive 5 Wire 4 Wire Touch Panel 5.7-22 Inch 35 Million Touches Durability

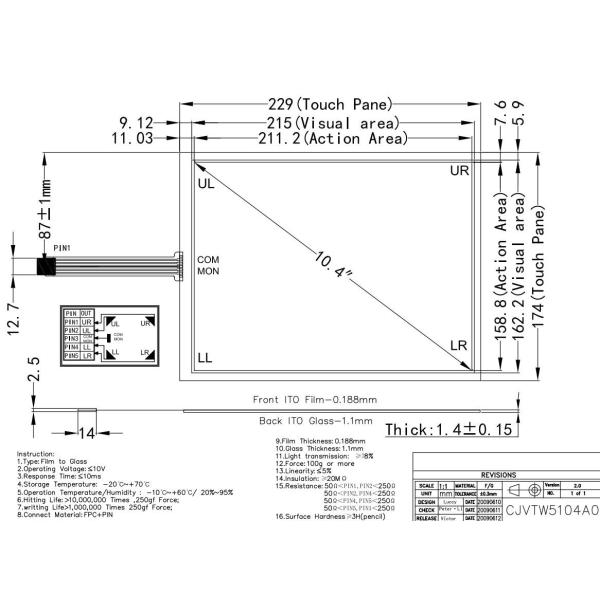

5 Wire Drawing

Resistive 5 Wire 4 Wire Touch Panel 5.7-22 Inch 35 Million Touches Durability
