21.5 Inch Resistive Touch Screen 5 Wire For Medical Equipment
21.5 Inch Resistive Touch Screen 5 Wire For Medical Equipment
21.5 Inch Resistive Touch Screen 5 Wire For Medical Equipment
21.5 Inch Resistive Touch Screen 5 Wire For Medical Equipment
Specifications
Brand Name :
CJTOUCH
Model Number :
CJVTW215A1
Certification :
CE \ FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500pcs/week
Delivery Time :
3-5 work day
Packaging Details :
1pcs or 14 pcs in a carton
Touch Type :
Resistive Touchscreen
Touch Points :
1 touch points
Interface type :
USB
Heat Cycle :
70°C /240 hrs
wire :
5 wire
Anti-Newton :
<10%
Response :
<15ms
Customized :
Support
Description

5 wire 21.5 inch resistive touch screen panel for medical equipment

Products Advantage

  • Flexible,very light weight,easy installation
  • USB port, touch a correction, high stability, and never drift
  • Touch intensity, high sensitivity, touch-free drift
  • You can use a pen, finger, gloved hand, and many other media touch touch
  • can be adapted to harsh environments, such as splashing drops of water flow down, etc.
  • supports single touch point, one-time calibration

Product Application:

  • Telecommunication Devices
  • Consumer Products
  • Technical Equipment
  • Office Automation
  • Home Appliances
  • Automobile Display
  • IT Products
  • Medical Equipment

Customized Resistive Touch Screen:

  • Our resistive touch panel design can be suitable for housing design from the customers to cover their lens or replace the physical buttons on its original module.
  • We are also capable of doing the customized shape needed to suit for customer's mechanical design.
  • With the assistance of the simulation software, equipment with high accuracy and simplifying assembly process, we are capable of making the sample in shorter period and with lower development charge.

Main Feature

  • High accurate
  • Pressure sensitive
  • Can responds to any input device
  • Short response time
  • Compact size for easy integration
  • Customization available

Specification of Product

5 Wires Resistive Touch Panel Specification
General Size 10.4 inch To 22 inch
Fit in with Panel display device
Mechanical
Input Method Finger or gloved hand (rubber ,cloth or leather)
Active Force Stylus or Finger or Similar <45g~110g
Ball Impact ø13.0. Steel Ball/9g, Height=30cm, 1 time, no damage [Impact at center area]
Durability >35 million touches
Positional Accuracy <1.5%
Optical
Light Transmission 82%
Clear surface <3%
Anti-glare Surface <4%
Anti-Newton <10%
Gloss 90±20 gloss units tested on a hard-coated front surface Accordance with ASTM D 2457
Electrical
Supply voltage DC5V
Circuit Resistance X:20~25Ω0, Y:20~250Ω
Linearity X<1.5%, Y<1.5%
Response <15ms
Insulation >20MΩ/25V(DC)
Endurance No acting damage at DC50V/60sec.
Resolution Based on controller resolution of 4096 x 4096
Environmental
Operation Temperature -10°C ~ +60°C
Operation Humidity 20%RH ~ 85%RH, no condensing
Storage Temperature -40°C ~ +80°C
Storage Humidity 10%RH ~ 90%RH, no condensing
Waterproof Not damaged by running water applied to the active area
Reliability
Heat Cycle 70°C /240 hrs
Cold Cycle -40°C /240 hrs
Thermal Cycle -40°C ~7°0C [60 min./cycle] *10 cycles
Operationg System
Operation System Linux/ Dos / Windows ME/95/98 / NT4.0/XP/2000/ 7 /Mac OS
Warranty
Touch screen 1 years
Touch Controller 1 years

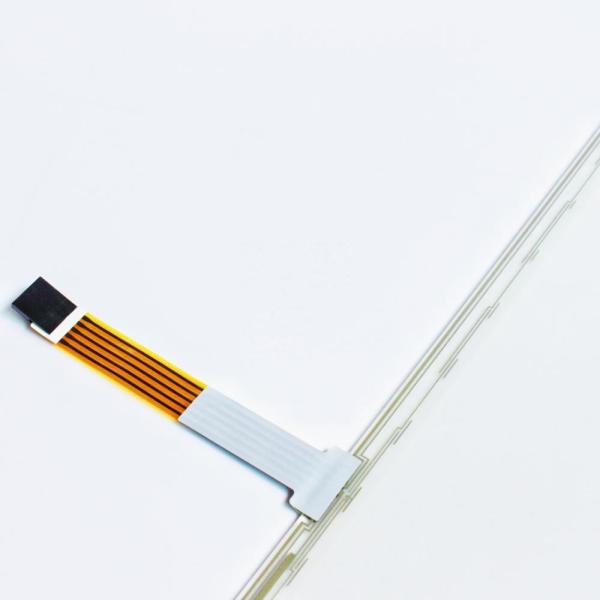

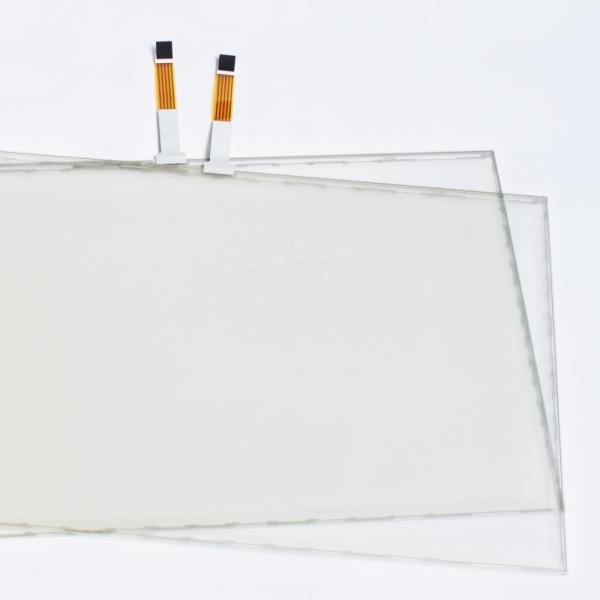

Picture of Product

21.5 Inch Resistive Touch Screen 5 Wire For Medical Equipment

Technical Drawing

21.5 Inch Resistive Touch Screen 5 Wire For Medical Equipment
