Specifications
Brand Name :
CJTOUCH
Model Number :
COT215-IPK03
Certification :
CE FCC
Place of Origin :
Dongguan China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T,
Supply Ability :
5000 PCS per quarter
Delivery Time :
2-3days
Packaging Details :
2 Infrared touch monitors in 1carton
Type :
IR Industrial touch screen monitor
Touch point :
1-10 points option
Resolution :
1920×1080
Brightness :
250cd/m2
interface :
VGA/DVI/USB/HDMI/DC12V
Materials :
Metal
Warranty :
1 year
Application :
Gaming ,retail ,kiosk,care,education
Description

21.5inch Infrared touch monitor Industrial touch screen monitor kiosks ATM game machine

Infrared Touch screen monitor Feature:

• Monitor size: 15", 17", 19", 18.5",21.5", 23.8",27",32"
• Touch signal input : RS232 / USB
• Sensitive touch: Infrared touch
• Signal input: VGA/DVI/HDMI
• With bezel optional
• Application area: digital signage, Advertising machine,Kiosks,Gaming, Interactive digital,Industrial,Education,Transportation etc.

• It is easily connected and integrated by user.

OEM / ODM It Is Welcome

1. Different Metal Case Optional.

2. No Frame Optional (SKD).

3. Touch Screen Optional (Resistive,Infrared,Capacitive Touch).

4. DVI USB AV BNC SD Card Optional.

5. Industrial Panel,IPS Panel,High Brightness Panel Optional.

6. Different Size 5inch-42inch Optional.

7. Desktop,Wall Mount Optional.

8. Customized Service.

Specification:

General
Model COT215-IPK03
Series Dust-proof and Compact
Monitor Dimensions Width: 528mm Height: 318mm Depth:56mm
LCD Type 21.5”SXGA Color TFT-LCD
Video Input VGA DVI And HDMI
OSD controls Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Mount Interface

1)VESA 75mm and 100mm

2)Mount bracket, horizontal or vertical
LCD Specification
Active Area(mm) 476.64(H)×268.11(V)
Resolution 1920x1080@60Hz
Dot Pitch(mm) 0.24825×0.24825
Nominal Input Voltage VDD +5.0V(Typ)
Viewing angle (v/h) 89°/89°
Contrast 1000:1
Luminance(cd/m2) 250
Response Time(Rising/Falling) 5ms/14ms
Support Color 16.7M colors
Backlight MTBF(hr) 30000
Touchscreen Specification
Type Cjtouch Infrared(IR)) touch screen
Resolution 4096*4096
Light Transmission 92%
Touch Life Cycle 50 millions
Touch Response time 8ms
Touch System Interface USB interface
Power consumption +5V@80mA
External AC Power Adapter
Output DC 12V /4A
Input 100-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C
Environment
Operating Temp. 0～50°C
Storage Temp. -20～60°C
Operating RH: 20%～80%
Storage RH: 10%～90%
Package
Package way 1sets in 1 carton EPE packaging inside
Gross weight/Carton size 9.5KGS/60×18×39CM

Warranty and Components
1 Year Free Warranty for Monitor and all components.
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
HDMI Cable & DVI Cable Sold Separately

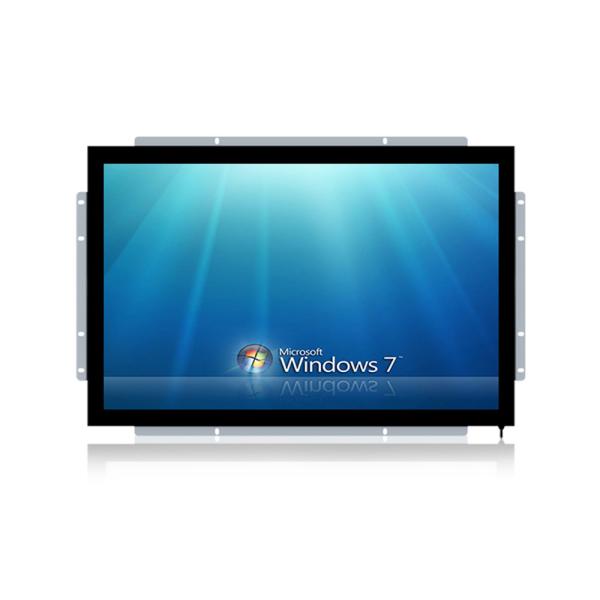

Product Picture

Waterproof 21.5inch Infrared Touch Monitor Screen For Kiosks 10 Points Multi Touch

Waterproof 21.5inch Infrared Touch Monitor Screen For Kiosks 10 Points Multi Touch

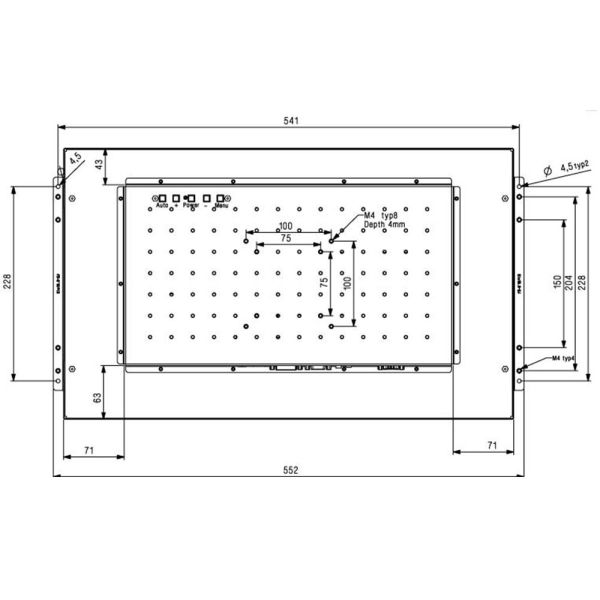

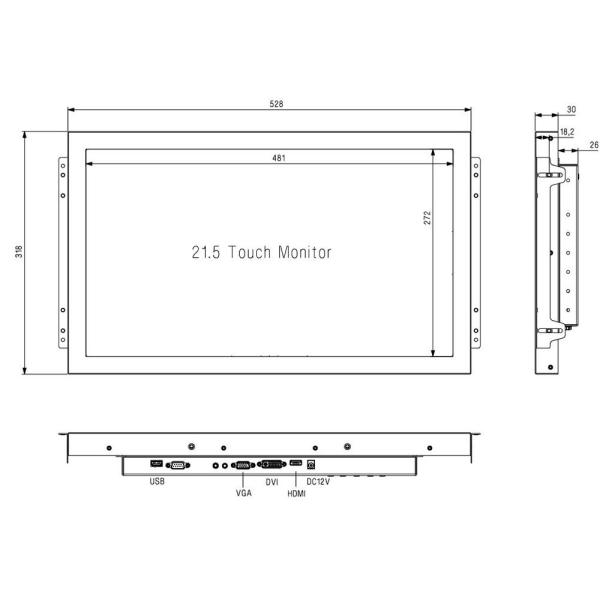

Drawing :

Waterproof 21.5inch Infrared Touch Monitor Screen For Kiosks 10 Points Multi TouchWaterproof 21.5inch Infrared Touch Monitor Screen For Kiosks 10 Points Multi Touch
