Vandalproof Desktop Touch Monitor
Vandalproof Desktop Touch Monitor
Vandalproof Desktop Touch Monitor
Vandalproof Desktop Touch Monitor
Vandalproof Desktop Touch Monitor
Vandalproof Desktop Touch Monitor
Specifications
Brand Name :
CJTOUCH
Model Number :
CDT215-CDK02
Certification :
RoHS, CE, FCC
Place of Origin :
Guangdong, China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5000pcs per quarter
Delivery Time :
5-8 working days
Packaging Details :
Carton package, 2 pcs in a carton
Condition :
NEW
Active area :
479.84 × 271.31 (H×V) mm
Contrast :
3000:1
Resolution :
1920(RGB)×1080 (FHD) 102PPI
Video Input :
VGA and H-DMI
Viewing angle (v/h) :
89/89/89/89 (Typ.)(CR≥10)
Response Time(Rising) :
13/5 (Typ.)(Tr/Td) ms
Luminance(cd/m2) :
250 cd/m² (Typ.)
Power Supply :
DC 12V 4A
Packaging type :
Carton package
Warranty :
1 year
Description

New office use 21.5 inch PCAP touch monitor Desktop computer touch monitor with 1 year warranty

​Dongguan CJTouch Electronic Co., Ltd. is a leading provider of Touchscreen, Touch monitor and All-in-one computers. With advanced, cost-effective touch solutions, CJTouch believes in engaging with customers while providing customized services. (More information : www.cjtouch.com )

Our service strength:

Your any inquiry or question will be replied within 24hrs.

Custom are well welcomed,regarding the interfaces, functions, images, structures, etc. We have professional engineer team to realize your idea.

You can find the right product you want, whatever the most competitive price or Highest quality!

21.5 inch Flat Screen Desktop PCAP Touch Monitor features:

1. Size: 15.6/19.5/21.5/23.8 inch

2. True flat screen design, waterproof and vandal proof available

3. Support 10 points touch

4. VGA+H-DMI video input and USB interface

5. Mounting Interface : VESA 75mm and 75mm / Mount with base

21.5 inch Flat Screen Desktop Capacitive Touch Monitor specification :

General
Model CDT215-CDK02
Series Water-proof and Open frame
LCD Type 21.5” Active matrix TFT-LCD
Video Input VGA, H-DMI
OSD controls Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply

Type: External brick

Input (line) voltage: 100-240 VAC, 50-60 Hz

Output voltage/current: 12 volts at 4 amps max
Mount Interface

1) VESA 75mm and 75mm

2) Mount with base
LCD Specification (Please refer to this model--T215HVN01.1)
Active Area(mm) 479.84 × 271.31 (H×V) mm
Resolution 1920(RGB)×1080 (FHD) 102PPI
Dot Pitch(mm) 0.08275×0.24825 mm (H×V)
Nominal Input Voltage 5.0V (Typ.)
Viewing angle (v/h) 89/89/89/89 (Typ.)(CR≥10)
Contrast 3000 : 1 (Typ.)
Luminance(cd/m2) 250 cd/m² (Typ.)
Response Time(Rising) 13/5 (Typ.)(Tr/Td) ms
Support color 16.7M (8-bit)
Backlight MTBF(hr) 50000
Touchscreen Specification
Type Projected Capacitive touch screen
Multi touch 10 points touch
Touch Life Cycle 10 millions
Touch Response time 8ms
Touch System Interface USB interface
Power consumption +5V@80mA
External AC Power Adapter
Output DC 12V /4A
Input 100-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C
Environment
Operating Temp. 0～50°C
Storage Temp. -20～60°C
Operating RH: 20%～80%

Components:

VGA Cable 180cm*1 Pcs,

Power Cord with Switching Adapter *1 Pcs,

USB Cable 180cm*1 Pcs

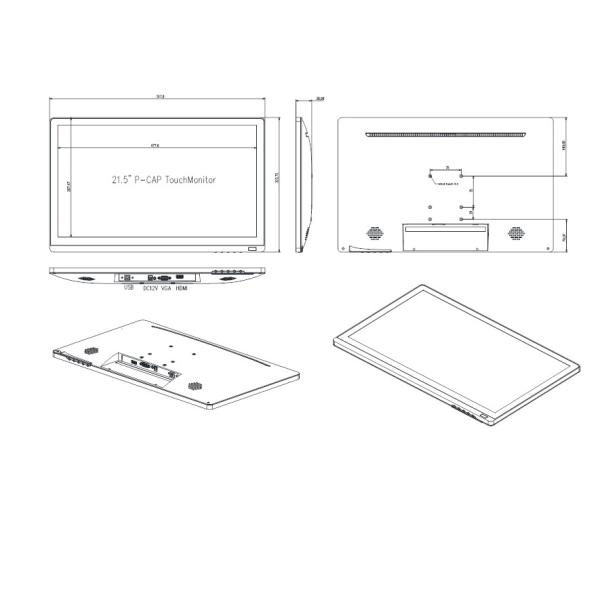

21.5 inch Flat Screen Desktop Capacitive Touch Monitor drawing:

Vandalproof Desktop Touch Monitor

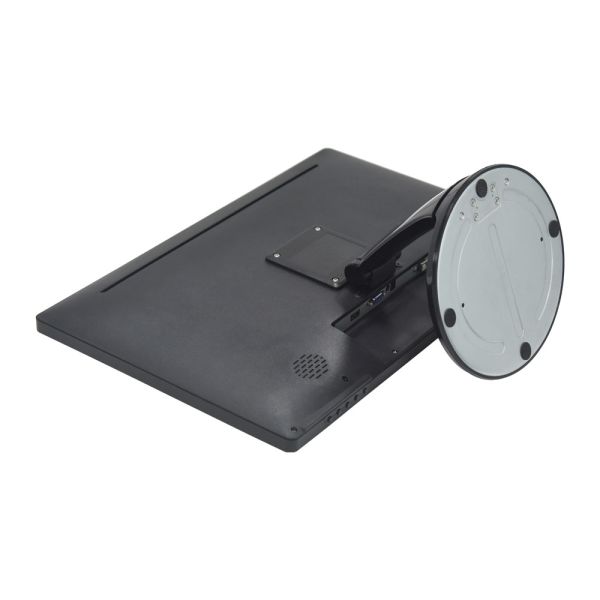

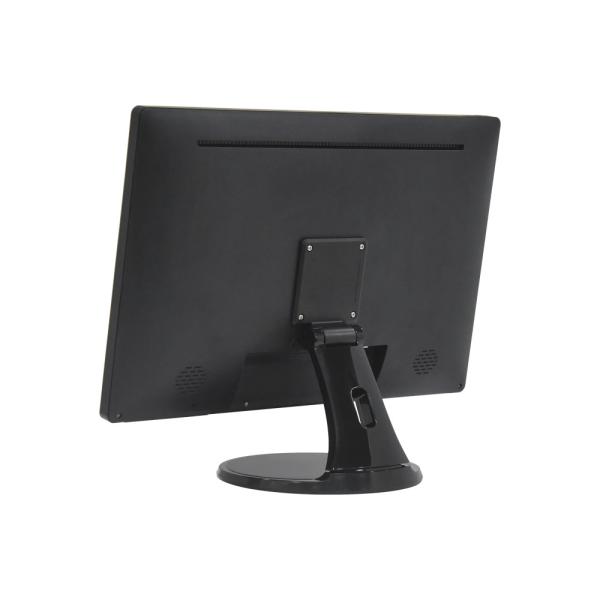

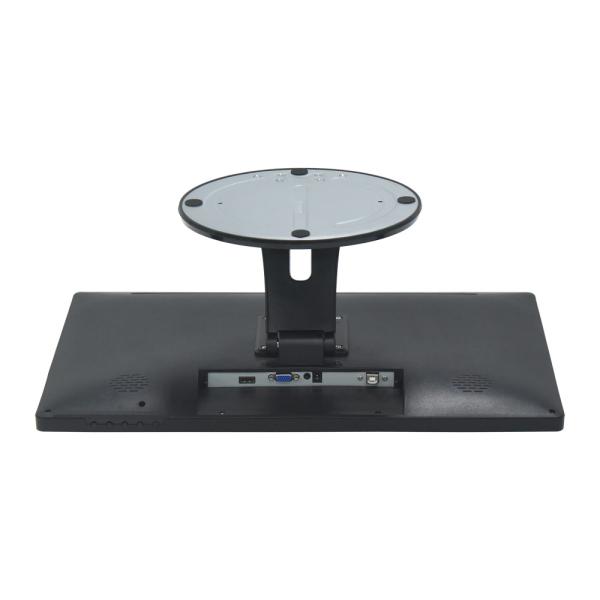

21.5 inch Flat Screen Desktop Capacitive Touch Monitor pictures:

Vandalproof Desktop Touch MonitorVandalproof Desktop Touch MonitorVandalproof Desktop Touch MonitorVandalproof Desktop Touch Monitor
