OEM All In One AIO Touch PC Screen Fit J1900 I3 I5 I7 CPU 10.1inch 50-60 Hz
OEM All In One AIO Touch PC Screen Fit J1900 I3 I5 I7 CPU 10.1inch 50-60 Hz
OEM All In One AIO Touch PC Screen Fit J1900 I3 I5 I7 CPU 10.1inch 50-60 Hz
OEM All In One AIO Touch PC Screen Fit J1900 I3 I5 I7 CPU 10.1inch 50-60 Hz
OEM All In One AIO Touch PC Screen Fit J1900 I3 I5 I7 CPU 10.1inch 50-60 Hz
OEM All In One AIO Touch PC Screen Fit J1900 I3 I5 I7 CPU 10.1inch 50-60 Hz
OEM All In One AIO Touch PC Screen Fit J1900 I3 I5 I7 CPU 10.1inch 50-60 Hz
OEM All In One AIO Touch PC Screen Fit J1900 I3 I5 I7 CPU 10.1inch 50-60 Hz
Specifications
Brand Name :
CJTOUCH
Model Number :
CCT101-CFK02-YSJ1900-JP
Certification :
CE FCC
Place of Origin :
Guangdong,China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, PayPal
Supply Ability :
3000 pcs per week
Delivery Time :
5-8 working days
Packaging Details :
1 or 2 pcs touch all in one compuer in one carton
Product Series :
AIO Touch PC
Touch Type :
PCAP touch screen
LCD Resolution :
1280*800
CPU :
Android / I3 / I5 / I7
RAM :
2GB /4GB /8GB /16GB/ 32GB
Memory :
32GB /64GB/128GB /256GB/ 512GB
Interface :
USB / COM / HDMI /VGA /RJ45, etc.
Custom Made :
Touch All in One Computer with Camera/ 4G/ Printer, etc.
Description

AIO Touch PC OEM 10.1'' Touch All In One Computer With J1900 I3 I5 I7 CPU

10.1'' Touch All In One Computer Features:

  • AIO touch PC size 10.1'' / 10.4'' / 12.1'' / 15'' / 15.6'' / 17'' / 18.5'' / 19'' / 21.5'' / 23.8'' / 27'' / 32'' / 43'' / 49'' / 55'' / 65''
  • High image clarity and fast respone
  • 3mm tempered anti-vandal touch screen glass
  • L G, Sam sung, AU O, BO E, ect LCD LED Panels
  • projected capacitive touchscreen support 5 or 10 points
  • IP65 touch screen sur face waterproof sealled
  • J1900 / I3 / I5 / I7/ A-ndroid CPU Optional
  • 2 / 4 /8 / 16 /32 GB ect RAM Optional
  • 32/64/128/256/512 ect SSD Optional
  • Perfact solutions for use in public
  • VESA mounting and rear mounting
  • Factory good and competitive price and fast delivery time
  • Our touch all in one computer are widely used in so many fileds, including transportation, entetainment, education, finance, industrial control, self service kiosk, etc.
  • Warranty: 12 months
  • 14 years' experienced manufacturer of SAW / Infrared / PCAP touch screens/touch monitors/ Touch all in one computer

10.1inch Touch all in one Computer Specifications:

General Information
Model CCT101-CFK02-YSJ1900-JP
CPU Intel(R)Celeron(R)CPU J1900 - I3/I5/I7/ Android optional
RAM 2/4/8/16/32GB RAM
Memory 32/64/128/256/512 GB SSD
Interface H-DMI, VGA, USB, COM, RJ45
Power supply Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts 5A
Mount Interface

1)VESA 75mm and 100mm

2) Mount bracket, horizontal or vertical
OS Wins7/8/10 or Android
LCD Specification
Active area(mm) 220.8(H)×139.2(V) mm
Resolution 1280(RGB)×800, WXGA, 149PPI
Pixel Pitch(mm) 0.0565×0.1695
Nominal input voltage VDD 3.3v
Viewing angle(v/h) 80/80/80/80 (Typ.)(CR≥10)
Contrast 500:1 (Typ.) (TM)
Luminance (cd/m2) 400 cd/m² (Typ.)
Response time 30 (Typ.)(Tr+Td) ms
Support color 16.7M , 45% NTSC
Backlight MTBF(hr) 30000
Environment
Operating temp. 0~50°C
Storage temp. -20~60°C
Operating temp. 20%~80%
Stroage RH 10%~90%

Components Of Touch All In One Computer :

Power Cord with Switching Adapter *1 Pcs

Bracket*2 Pcs

FAQ:

Q: what is the delivery time of the sample?
A: 3-7 days depends on the number of samples.

Q: do you have touch all in one computer in stock?
A: some products are available in stock and can be delivered within 7 days.

Q: how long does it take for mass production of touch all in one computer?
A: according to the quantity, about 7-15days.

Q: how to ensure the quality?
A: we have about 14 years of experience in this field. We have a strong team, special design, exquisite production technology and exquisite materials and exquisite workmanship.

Q: Can I customize the logo?
A: Yes, of course. You can send us your logo.

Q: what's your MOQ?
A: the minimum order quantity is 1PCs. Of course, we can accept small trial orders for some products

10.1'' Touch All In One Computer Pictures:

OEM All In One AIO Touch PC Screen Fit J1900 I3 I5 I7 CPU 10.1inch 50-60 Hz

OEM All In One AIO Touch PC Screen Fit J1900 I3 I5 I7 CPU 10.1inch 50-60 Hz

OEM All In One AIO Touch PC Screen Fit J1900 I3 I5 I7 CPU 10.1inch 50-60 Hz

OEM All In One AIO Touch PC Screen Fit J1900 I3 I5 I7 CPU 10.1inch 50-60 Hz

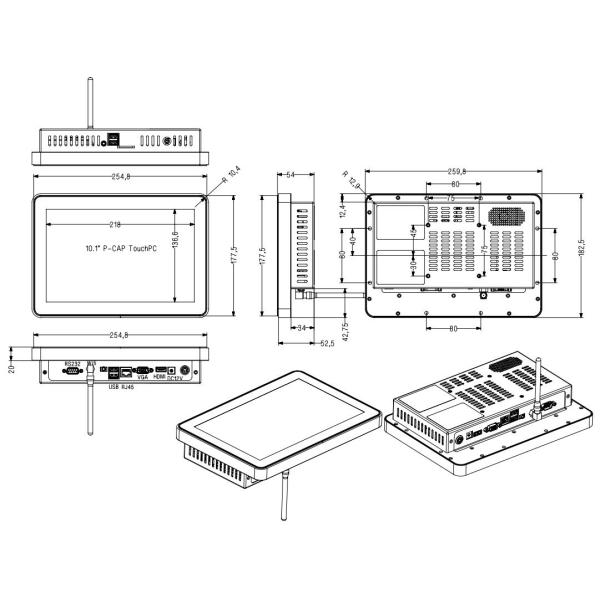

10.1'' Touch All In One Computer Drawing:

OEM All In One AIO Touch PC Screen Fit J1900 I3 I5 I7 CPU 10.1inch 50-60 Hz
