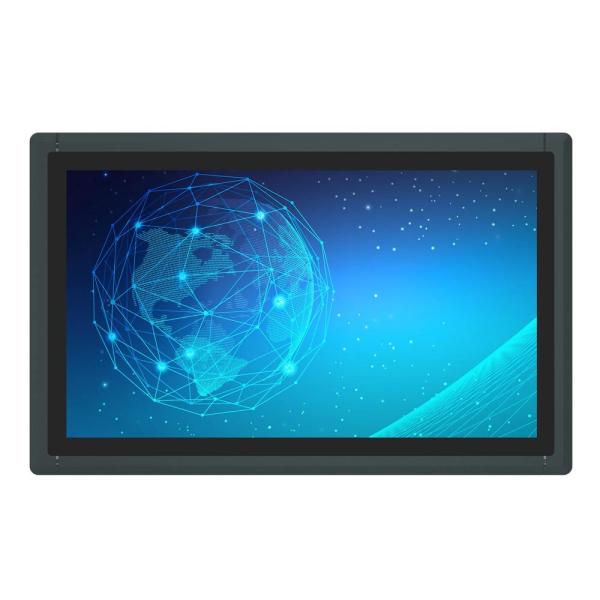

18.5 Inch Industrial Touch Screen Panel Fanless Aluminum die casting chassis
18.5 Inch Industrial Touch Screen Panel Fanless Aluminum die casting chassis
18.5 Inch Industrial Touch Screen Panel Fanless Aluminum die casting chassis
18.5 Inch Industrial Touch Screen Panel Fanless Aluminum die casting chassis
18.5 Inch Industrial Touch Screen Panel Fanless Aluminum die casting chassis
18.5 Inch Industrial Touch Screen Panel Fanless Aluminum die casting chassis
18.5 Inch Industrial Touch Screen Panel Fanless Aluminum die casting chassis
18.5 Inch Industrial Touch Screen Panel Fanless Aluminum die casting chassis
Specifications
Brand Name :
CJTOUCH
Model Number :
ALAD-K1820T(P)
Certification :
CE FCC
Place of Origin :
Guangdong,China
MOQ :
20 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, PayPal
Supply Ability :
3000 pcs per week
Delivery Time :
5-8 working days
Packaging Details :
1 or 2 pcs Industrial Fanless Panel Pc in one carton
Product :
Industrial Fanless Panel Pc
Sreen size :
18.5''
Resolution :
1366*768
Brightness :
300 cd/m2
RAM optiaonal :
2- 16GB
Storage :
32- 512GB
Description

18.5 Inch Industrial Fanless Panel Pc Touch Screen Industrial All In One Pc Computer

Features:

  • Aluminum die-casting chassis, fanless design
  • 18.5'' LED TFT LCD, capacitive touch
  • Sky lake-U I3/I5/I7 CPU
  • 1*DDR4 2133 SODIMM, Max 16GB
  • 1*Mini PCIe (PCIe+USB)
  • 2*COM, 2*LAN, 4*USB3.0
  • 2.5'' HDD Bay, 1*M.2
  • ATX button and remote button
  • DC 9~36V power input

Specifications:

System
CPU I3-6100U , 3855U, I5-6200U,I7-6500U
Chipset In tel SOC
System Memory 1*DDR4 2133 MHz SODIMM, Max 16GB
BIOS Insyde SPI 64Mbit Flash
Storage 1*2.5' SATA HDD bay, support SATA3.0 6Gbps HDD/SSD, 1*M.2 (2242 B-Key)
Display 18.5"
Touch capacitive touch sreen
Expansion

1*Mini PCIe(PCIe&USB signal)

2*COM: 2*RS232/422/485, DB9

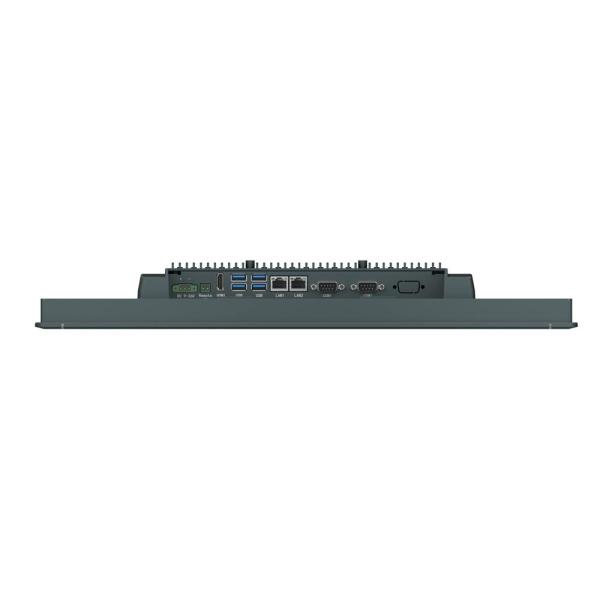

Real I/O 4*USB3.0 Type A
1*HD MI
2*RJ45
Front I/O 1*USB2.0 Type A
LAN In tel I210AT chip, 10/100/1000 Mbps
Control SW Power button, 2-pin connecter with power switch signal
Power Supply DC to DC: 9~36V input, consumption: TDP 12V/3.72A(In tel I5-6200U CPU, 4GB DDR3L memory)
OS Supply Wins 7, Wins 8.1,Wins 10,Linux

Mechanical and Environmental
Construction Aluminum die-casting front bezel and chassis, fin-shaped radiator shell
Operating Temperature 0~50℃ –HDD( –10~55℃ –SSD), with airflow
Storage Temperature -20~60 ℃
Operating Humidity 10~95%@40, non-condensing
Shock 10g peak acceleration(duration 11ms), in operating with HDD
Vibration 1g 5~500Hz in operating with HDD
Mounting Panel mounting, VESA 100*100
Dimension (W*H*D): 482.3*304.3*59.1; mounting cut out(W*H): 473.5*295.5mm
Net Weight 6.63kg
EMC CE, FCC Class A
LCD
Type 18.5'' TFT LCD
Resolution 1366*768
Color 16.2M
Pixel Pitch(mm) 0.300*0.300(mm)
Brightness(cd/m2) 300
Viewing Angle

85°(left), 85°(right), 80°(up),80°(down)
Operating Temperature -10~50℃
Backlight Lifetime 50000 Hours
Touch
Type PCAP touch
Resolution gapless
Light Transmittance 90%
Interface USB
Consumption +5V @ 300mA
OS Wins or Linux
Click Lifetime 3 million times

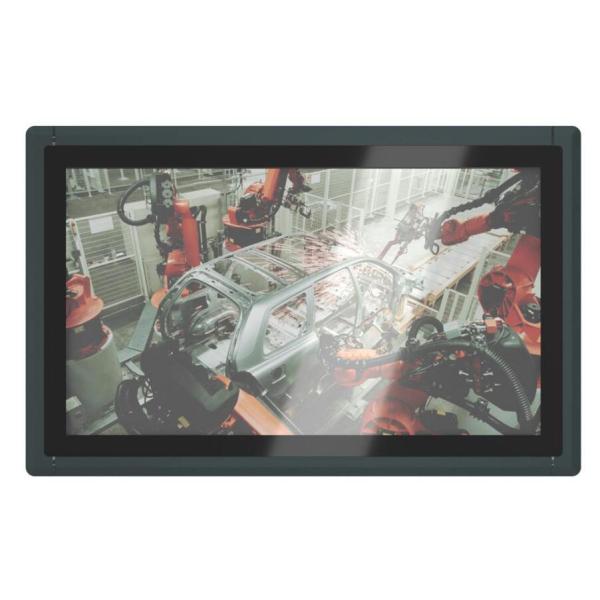

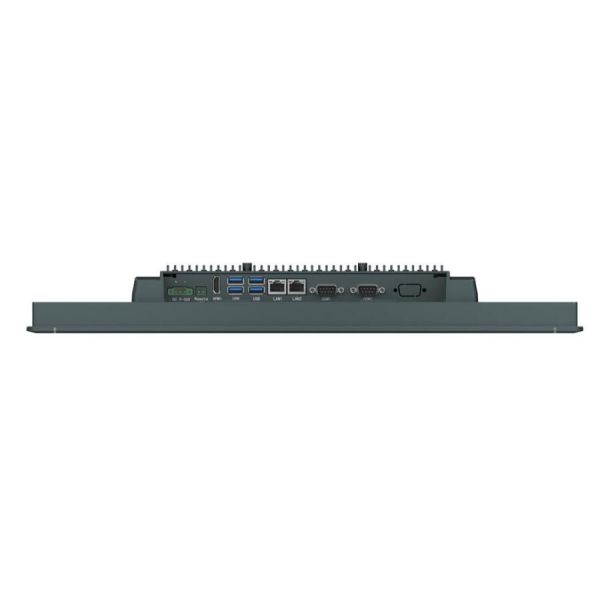

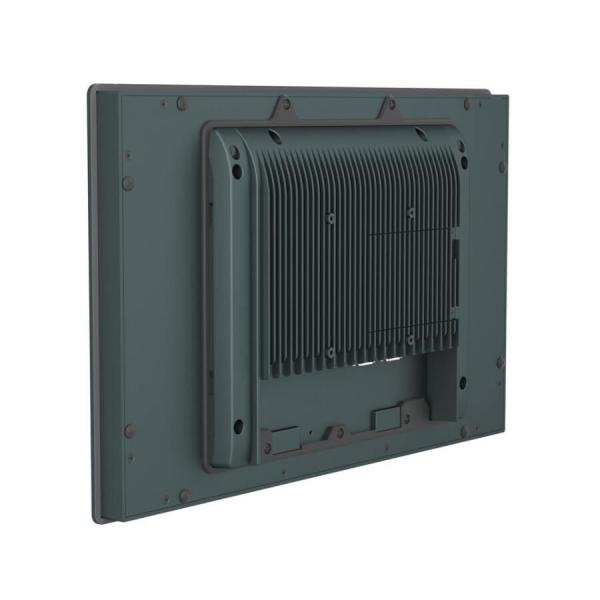

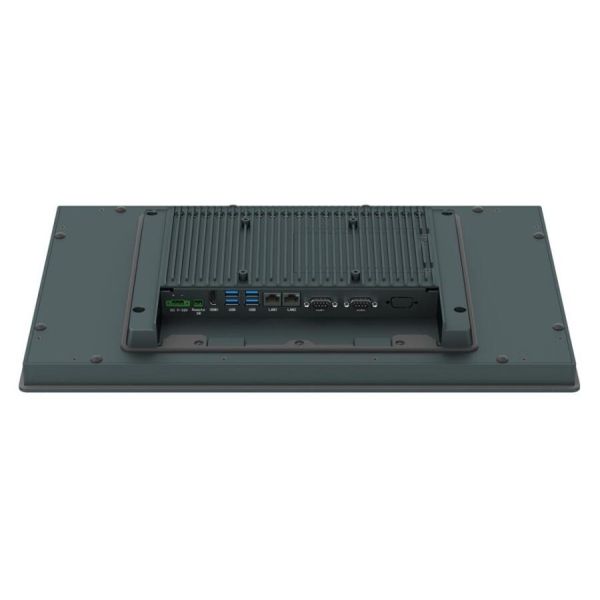

Pictures:
