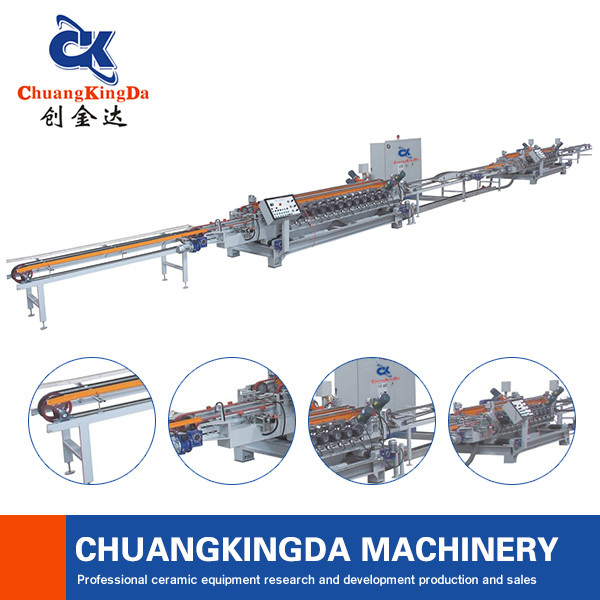

Automatic Wall Tile Dry Squaring Chamfering Machine Production Line
Automatic Wall Tile Dry Squaring Chamfering Machine Production Line
Specifications
Place of Origin :
china guangdong foshan
Brand Name :
CKD
Certification :
CE
Model Number :
CKD40+4
equipment function :
ceramic tile / porcelain tiles square chamfer
equipment name :
square chamfer production machine
working area :
dry type / wet type
MOQ :
1set
Price :
USD1~80000
Packaging Details :
FILM
Delivery Time :
40DAYS
Payment Terms :
TT
Supply Ability :
10000SETS/YEAR
near port :
foshan new port
country of orign :
made in china
Description

Automatic Wall Tile Dry Squaring Chamfering Machine Production Line CKD Company Machine

Squaring Chamfering Machine Equipment characteristics:

Features: digital control, high stability, easy to operate, easy to maintain; saving energy, eliminating investments for water recycling.

Purpose: Edge chamfering, beautifying tiles, improving the texture.

Squaring Chamfering Machine Reference Data:

Model

Squaring Capability

Output

Diagonal Error

Qty of Squaring

Chamfering Head

300-600 (9+1)

4-8mm

6000±10%

≤0.5

36+4

300-600 (10+1)

4-8mm

7000±10%

≤0.5

40+4

300-800 (11+1)

4-8mm

7000±10%

≤0.5

44+4

400+1000 (12+1)

4-8mm

7000±10%

≤0.5

48+4

Work Width

Squaring Power

Prime Conveying Power

Gross Install Power

Dimension

300-600

3.5kw

3kw

142kw

4460*2400*1500

300-600

3.5kw

4kw

164kw

5000*2400*1500

300-800

3.5kw

4kw

176kw

5500*2600*1500

400-1000

3.5kw

4kw

186kw

5500*2800*1500

CKD600/40+4 Dry Type Squaring Chamfering Machine

MAIN DATA:

NO.

DESCRIPTION

QTY

1

TRANSMISSION CONVEYOR L=3000MM

1SET

2

NO.1 DRY TYPE SQUARING AND CHAMFERING

MACHINE WITH DOUBLE SIDES(20+2-200~600)

1SET FORWARD

3

TURNING CONVEYOR L=6000MM

1SET

4

NO.2 DRY TYPE SQUARING AND CHAMFERING

MACHINE WITH DOUBLE SIDES(20+2-200~600)

1SET BACKWORD

5

EXIST CONVEYOR

L=6000MM

1SET

6

DUST COLLECTOR

1SET

MAIN TECHNICAL STANDARDS:

1.

WORKING WIDTH:

200-600MM

2.

WORKING THICKNESS:

8-12MM

3.

AIR CONSUMPTION:

100L/MIN

4.

CONSUMPTION PRESS:

≥0.6MPA

5.

VOLTAGE:

380V 50HZ 3PH

6.

AROUND TOTAL POWER:

161.3KW+18.5kw

7.

TOTAL LENGTH ABOUT:

24600MM

1. 40+4 WALL TILES SQUARING CHAMFERING PRODUCTION LINE DRAG PLATE TYPE SITE:


2. 40+4 WALL TILES SQUARING CHAMFERING PRODUCTION LINE

10 HEADS STAIGHT-SIDED SQUARING FUNCTION

1 HEAD BEVEL CHAMFERING FUNCTION
