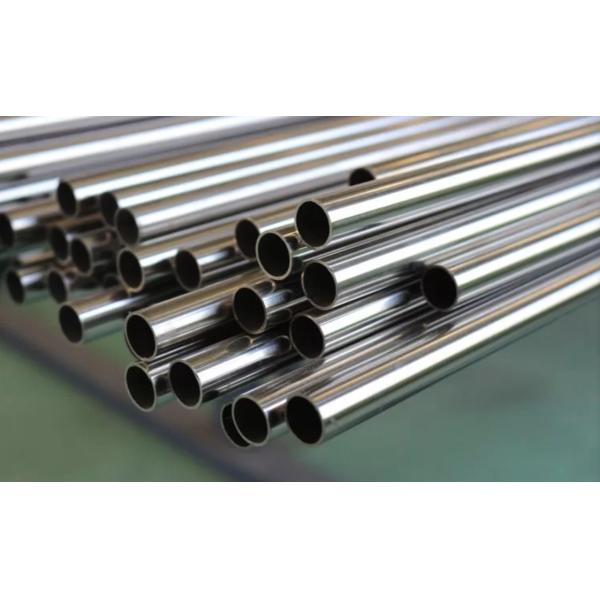

Incloloy 840 800 825 Nickel Alloy Pipe Astm B619 Uns N10276 Welded Electric Heating
Incloloy 840 800 825 Nickel Alloy Pipe Astm B619 Uns N10276 Welded Electric Heating
Incloloy 840 800 825 Nickel Alloy Pipe Astm B619 Uns N10276 Welded Electric Heating
Incloloy 840 800 825 Nickel Alloy Pipe Astm B619 Uns N10276 Welded Electric Heating
Specifications
Brand Name :
HMD
Model Number :
HMD-NI
Certification :
SGS, BV, TUV, ISO
Place of Origin :
CHN
MOQ :
one piece
Price :
Usd negotiable per Kg
Payment Terms :
L/C, T/T
Supply Ability :
200 Tons per Year
Delivery Time :
30 Days
Packaging Details :
Export standard package with polywood case or ISPM 15 stamped wooden case
Name :
Nickel and the alloys pipes / tubes
Material :
INCOLOY840,INCOLOY800,INCOLOY825,INCONEL600/601,INCONEL625,HASTELLOY C276,BT840Mo,BT800Mo
Type :
Welded Pipe
Application :
Aviation, Electronics, Industrial, Medical, Chemical
Standard :
JIS, GB, DIN, BS, ASTM, AISI
Density :
8.902g/cm3
Description

Incloloy840 800 825 Inconel600 625 Nickel Alloy Welded Electric Heating Tubes and Pipe

Product Description:

Alloy 800, 800H, and 800HT are nickel-iron-chromium alloys with good strength and excellent resistance to oxidation and carburization in high-temperature exposure. These nickel steel alloys are identical except for the higher level of carbon in alloy 800H/HT and the addition of up to 1.20 percent aluminium and titanium in alloy 800HT. Alloy 800 was the first of these alloys and it was slightly modified into Alloy 800H. This modification was to control carbon (.05-.10%) and grain size to optimize stress rupture properties.

In heat treatment applications Alloy 800HT has further modifications to the combined titanium and aluminium levels (.85-1.20%) to ensure optimum high temperature properties. Alloy 800H/HT was intended for high temperature structural applications. The nickel content makes the alloys highly resistant to both carborisation and to embrittlement from precipitation of sigma phase.

Nickel is a chemical element with symbol Ni and atomic number 28. It is a silvery-white lustrous metal with a slight golden tinge. Nickel belongs to the transition metals and is hard and ductile. Pure nickel, powdered to maximize the reactive surface area, shows a significant chemical activity.

Name Nickel Alloy Weld tubing
Standard ASTM B514,ASTM B515,ASTM B516,ASTM B517,ASTM B704
Outer diameter 6.0-89.0mm
Wall thickness 0.3-3.0mm
Material INCOLOY840,INCOLOY800,INCOLOY825,INCONEL600/601,INCONEL625,HASTELLOY C276,BT840Mo,BT800Mo
Nickel pipe Mechanical Properties
Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.9 G/Cm3 1446 °C (2635 °F) Psi – 21500 , MPa – 148 Psi – 67000 , MPa – 462 45 %

Incloloy 840 800 825 Nickel Alloy Pipe Astm B619 Uns N10276 Welded Electric Heating

Incloloy 840 800 825 Nickel Alloy Pipe Astm B619 Uns N10276 Welded Electric Heating
