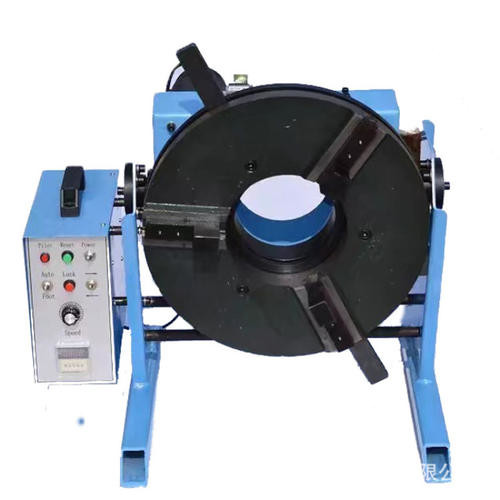

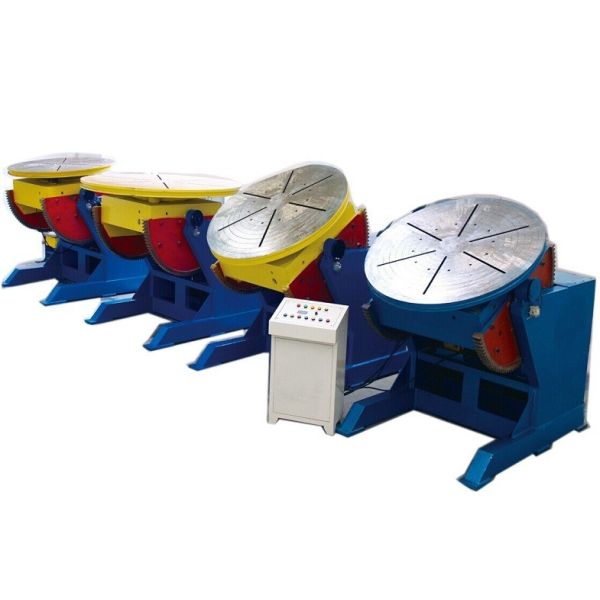

3000kgs 0.5rpm 1400mm 1.5kw Automatic Welding Machine
3000kgs 0.5rpm 1400mm 1.5kw Automatic Welding Machine
3000kgs 0.5rpm 1400mm 1.5kw Automatic Welding Machine
3000kgs 0.5rpm 1400mm 1.5kw Automatic Welding Machine
3000kgs 0.5rpm 1400mm 1.5kw Automatic Welding Machine
3000kgs 0.5rpm 1400mm 1.5kw Automatic Welding Machine
Specifications
Brand Name :
JINHUA
Model Number :
JHC200
Place of Origin :
WUXI
MOQ :
1 Unit
Price :
USD+2000-50000+Unit
Payment Terms :
T/T
Supply Ability :
30+Unit+Per Month
Delivery Time :
15-60 Days
Packaging Details :
Wooden Box Package
Machine Type :
Welding Positioner
Condition :
New
Material :
Carbon Steel, Alloy Steel
After-Sales Service :
Engineers available to service machinery overseas, Field installation, commissioning and training, Video technical support, Field maintenance and repair service
Warranty :
1 Year
Color :
Yellow, Blue, Customized
Voltage :
220V/380V/400V, 220V/380V/415V/440V/customized, 220V50HZ1P, Optional, 380V or 220V/60HZ /3P (Also According To Your local voltage)
Usage :
Rotating Welding Position
Industries :
Cement, Steel, Mining, Power, Security, Agriculture, Recycling
Advantage :
Automatic Welding
Description


Features
+ Mainly comprises the rotation system, tilt system and control box
+ Present the weld instantly in the down hand position
+ Inverter contolled rotation with high accuracy and stability
+ Matched with CO2/MAG/MIG or plasma welding machine or three-jaw chunks
Standard line

Model JHB01 JHB03 JHB06 JHB12 JHB30 JHB50 JHB100
Load Capacity - kgs 100 300 600 1200 3000 5000 10000
Max Centre of Gravity - mm 150 100 100 100 150 200 250
Eccentricity - mm 100 100 100 150 200 300 400
Table diameter -mm 400 600 1000 1200 1400 1500 2000
Rotation speed -rpm 0.1-1 0.2-2 0.09-0.9 0.05-0.5 0.05-0.5 0.05-0.5 0.05-0.2
Rotation motor -kw 0.18 0.18 0.75 1.1 1.5 2.2 3
Tilt speed - rpm Manual Manual 1.1 0.67 0.23 0.14 0.14
Tilt motor -kw / / 75 1.1 1.5 2.2 5.5
Degree of Tilt (Table) 0-90 0-90 0-90 0-90 0-120 0-120 0-120
