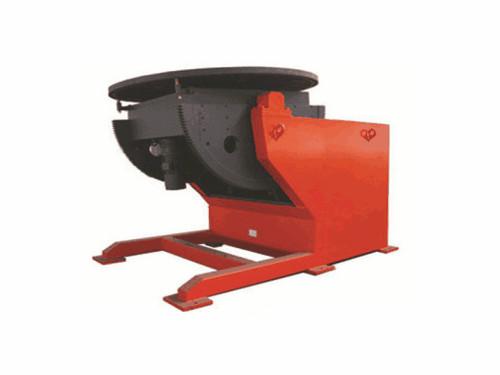

0.12-1.2 Rpm 0.18KW 10000kg Automatic Welding Machine
0.12-1.2 Rpm 0.18KW 10000kg Automatic Welding Machine
Specifications
Brand Name :
JINHUA
Model Number :
JHC500
Place of Origin :
WUXI, CHINA
MOQ :
1 Unit
Price :
USD+2000-50000+Unit
Payment Terms :
T/T
Supply Ability :
30+Unit+Per Month
Delivery Time :
15-60 days
Packaging Details :
Wooden Box Package
Type :
Welding Positioner
Condition :
New
Usage :
welding positioner
Item name :
Rotating Welding Table
Max load weight :
1000-10000kg
Table rotation speed :
0.12-1.2 rpm
Rotary motor power :
0.18KW
Weight :
100KG-20000KG
Description

Portable Rotating Table Steel With Jigs Rotary Clamping System Foldable

Introduction:
1. Capacityfrom100kg,300kg,600kg,1000kg,2000kg,3000kg,5000kg,8000kg,10000kg,20000kg are all available.
2. Welding Positioner can tilting from 0 to 90° ~120°, rotating 360° by VFD control.
3. Voltage standard is 380V , 50HZ , 3PH. Other voltage can be customized
4. Controlled system is wireless remote-hand control box and with foot switch.
5. Hydraulic lifting welding positioner, L shape welding positioner,Head & tail stock welding positioner

Packing & Delivery:

1. Wooden Box
2. As Customer's Requirements
Port
Shanghai/Ningbo
Lead Time :
15-20 working days

Main Technical Parameters

Type Rated Loading (Kg) Rotation Speed (rpm) Tilting Speed (rpm) Tilting Angle (Degree) Worktable Dia (mm) Rotation Power (kw) Tilting Power (kw) Speed Regulation Max. Eccentricity (mm) Max. Gravity (mm)
JHBW-12 1200 0.05-0.5 0.4 0-120 Φ 1200 1.1 1.1

AC Frequency Conversion Stepless Speed Regulation

 200 250
JHBW-30 3000 0.05-0.5 0.23 0-135 Φ 1400 1.1 2.2 200 300
JHBW-50 5000 0.05-0.5 0.2 0-135 Φ 1500 1.5 3 200 300
JHBW-100 10000 0.05-0.5 0.2 0-135 Φ 2000 3 4 200 400
JHBW-150 15000 0.04-0.4 0.15 0-135 Φ 2200 4 7.5 200 500
JHBW-200 20000 0.04-0.4 0.15 -45 - 90 Φ 2500 5.5 11 200 600
JHBW-300 30000 0.03-0.3 0.15 -45 - 90 Φ 3000 5.5 15 200 650
JHBW-500 50000 0.02-0.2 0.06 -45 - 90 Φ 4000 11 18.5 200 800
