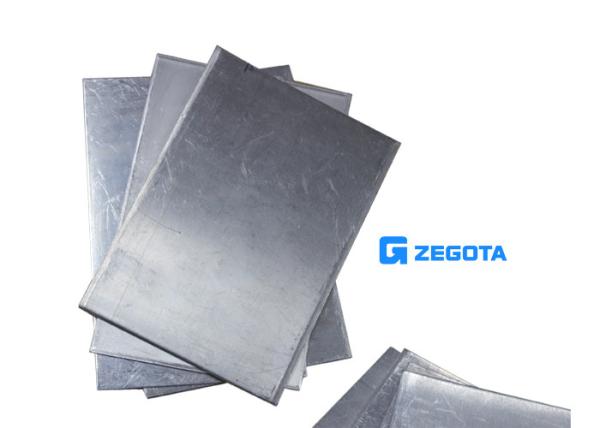

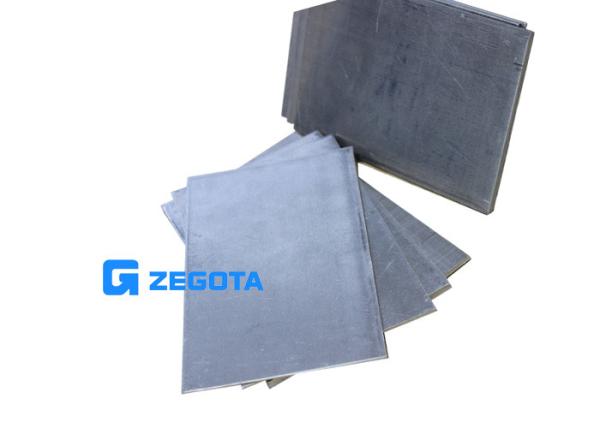

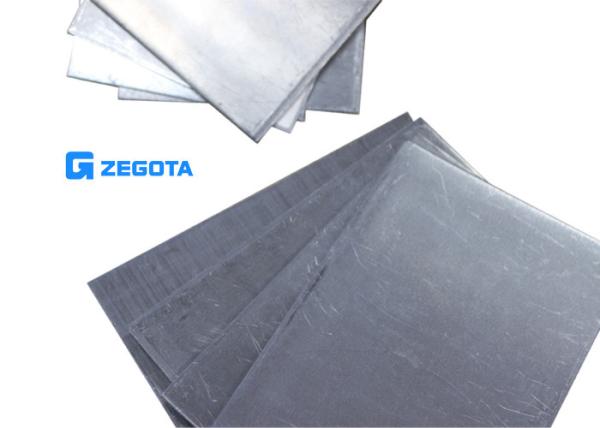

Non Magnetic Nickel Clad Stainless Steel Sheet , Nickel Clad Stainless Steel Strip
Non Magnetic Nickel Clad Stainless Steel Sheet , Nickel Clad Stainless Steel Strip
Non Magnetic Nickel Clad Stainless Steel Sheet , Nickel Clad Stainless Steel Strip
Non Magnetic Nickel Clad Stainless Steel Sheet , Nickel Clad Stainless Steel Strip
Non Magnetic Nickel Clad Stainless Steel Sheet , Nickel Clad Stainless Steel Strip
Non Magnetic Nickel Clad Stainless Steel Sheet , Nickel Clad Stainless Steel Strip
Non Magnetic Nickel Clad Stainless Steel Sheet , Nickel Clad Stainless Steel Strip
Non Magnetic Nickel Clad Stainless Steel Sheet , Nickel Clad Stainless Steel Strip
Non Magnetic Nickel Clad Stainless Steel Sheet , Nickel Clad Stainless Steel Strip
Non Magnetic Nickel Clad Stainless Steel Sheet , Nickel Clad Stainless Steel Strip
Specifications
Brand Name :
ZEGOTA
Model Number :
NSSC108
Certification :
ISO9001:2008 , IATF/TS16949:2016 , ISO14001:2004 , CNAS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Thin Film, Rustproof Paper
Delivery Time :
10-15 Days
Payment Terms :
100% T/T Before Shipment
Supply Ability :
100000 Tons Per Year
Product name :
Nickel clad stainless steel
Material :
Nickel + stainless steel
Function :
Non-magnetic, ultra-thin composite, high temperature resistance
Feature :
High bonding rate, corrosion resistance, easy to weld
Application :
Battery industry , PCB industry
Shape :
Strip , coil , sheet
Description

High surface quality nickel clad stainless steel with non magnetic and good weldability

Nickel clad stainless steel material is a combination of rare metals and steel products. Taking advantage of the high temperature resistance of nickel and the corrosion resistance of stainless steel, ZEGOTA adopts innovative technology, high-end equipment and high-quality raw materials to develop and produce high-quality nickel steel clad material with high bonding rate, ultra-thin and good surface quality.

Advantages:

1. Low resistivity: the addition of copper gives the composite a good low resistivity.

2. Corrosion resistance: nickel stainless steel is combined to further enhance the corrosion resistance.

3. High temperature resistance: nickel material is the most prominent characteristics of high temperature resistance, nickel attached to the surface of stainless steel, greatly improve the material's high temperature resistance performance.

Application:

1. Battery industry: An important application of nickel stainless steel clad copper is to be used as both anode cover and cathode cup in button battery industry. It has unique multi-layer characteristics.

2. Printed Circuit Board: Replace pure nickel with clad design with higher conductivity. Nickel/stainless steel/copper/stainless steel/nickel five-layer material system has low resistivity, excellent corrosion resistance, excellent welding properties, and lower cost than fine nickel.

Parameter:

Clad material Nickel Nickel
Stainless Steel Stainless Steel
Copper Copper
Nickel Stainless Steel
/ Nickel
Thickness(mm) 0.01-4.0 0.04-4.0
Width(mm) 5.0-1500 5.0-1500
Tensile strength(Mpa) 230-300 230-300
Yield strength(Mpa) 180-240 180-240
Elongation(%) ≥40 ≥30
