Specifications
Brand Name :
ZEGOTA
Model Number :
NSSC102
Certification :
ISO9001:2008 , IATF/TS16949:2016 , ISO14001:2004 , CNAS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Thin Film, Rustproof Paper
Delivery Time :
10-15 Days
Payment Terms :
100% T/T Before Shipment
Supply Ability :
100000 Tons Per Year
Product name :
Nickel clad stainless steel
Material :
Nickel + stainless steel
Application :
Battery industry , PCB industry
Feature :
Ultrathin , High combination rate , Perfect surface
Function :
Low Resistivity , Corrosion resistance , High temperature resistance
Shape :
Strip , coil , sheet
Description

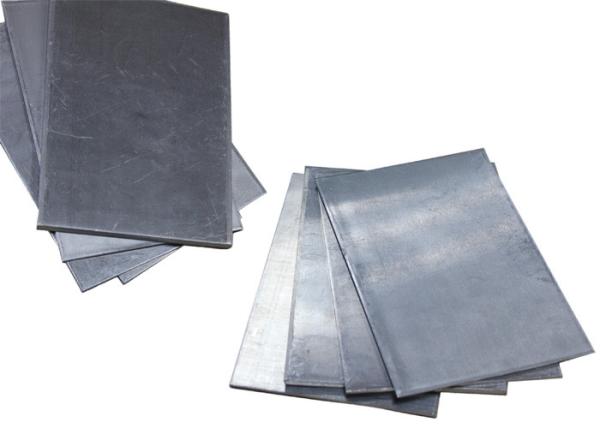

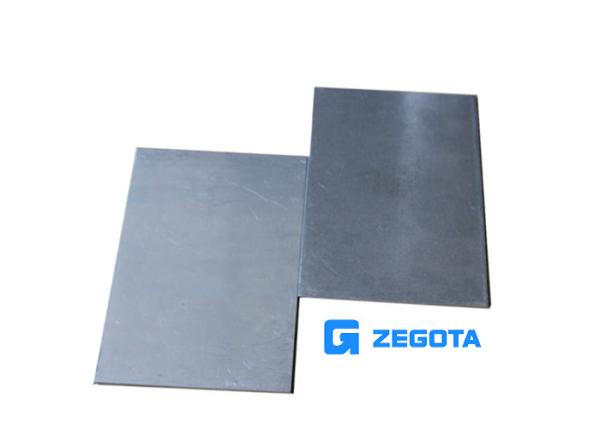

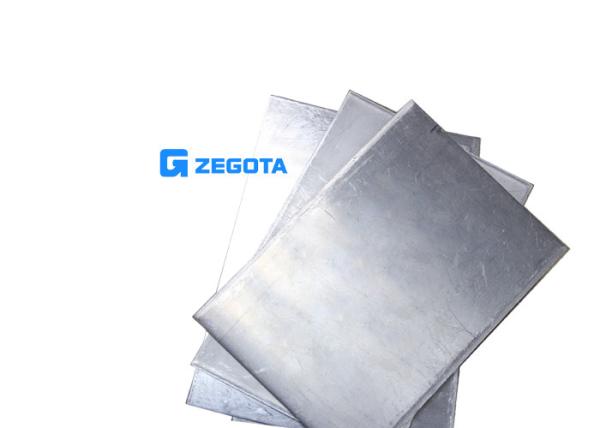

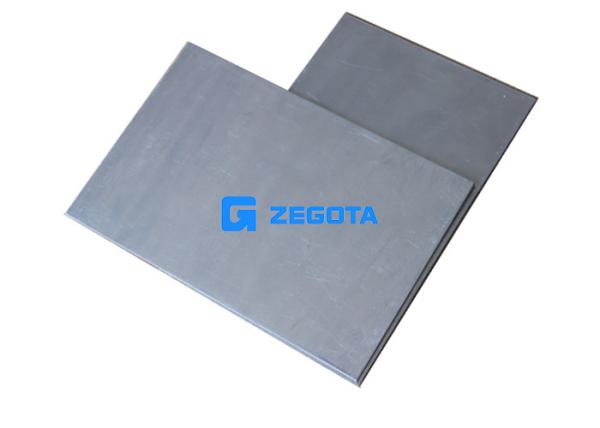

Ultra thin nickel clad stainless steel with non-magnetic and corrosion resistance

Nickel clad stainless steel belongs to the combination of rare metals and steel products. Combining the advantages of nickel clad stainless steel , a clad material with low resistivity, corrosion resistance and high temperature resistance is formed. ZEGOTA uses innovative technology, high-end equipment and high-quality raw materials to develop and produce high-quality nickel clad steel materials with high combination rate, ultra-thin and good surface quality.

Parameter:

Clad material Nickel Nickel
Stainless Steel Stainless Steel
Copper Copper
Nickel Stainless Steel
/ Nickel
Thickness(mm) 0.01-4.0 0.04-4.0
Width(mm) 5.0-1500 5.0-1500
Tensile strength(Mpa) 230-300 230-300
Yield strength(Mpa) 180-240 180-240
Elongation(%) ≥40 ≥30

Application:

1. Battery industry: An important application of nickel stainless steel clad copper is to be used as both anode cover and cathode cup in button battery industry. It has unique multi-layer characteristics.

2. Printed Circuit Board: Replace pure nickel with clad design with higher conductivity. Nickel/stainless steel/copper/stainless steel/nickel five-layer material system has low resistivity, excellent corrosion resistance, excellent welding properties, and lower cost than fine nickel.

Advantages:

1. Low resistivity: The use of copper makes this clad material has low resistivity.

2. Corrosion resistance: The combination of nickel, stainless steel and copper further strengthens the corrosion resistance.

3. High temperature resistance: The most prominent feature of nickel material is high temperature resistance, which greatly improves the high temperature resistance of the material by cladding nickel to stainless steel.
