40kw - 70Kw Thermal Equipment Heavy Fuel Oil Burner Electronic Proportional Valve
40kw - 70Kw Thermal Equipment Heavy Fuel Oil Burner Electronic Proportional Valve
40kw - 70Kw Thermal Equipment Heavy Fuel Oil Burner Electronic Proportional Valve
40kw - 70Kw Thermal Equipment Heavy Fuel Oil Burner Electronic Proportional Valve
40kw - 70Kw Thermal Equipment Heavy Fuel Oil Burner Electronic Proportional Valve
40kw - 70Kw Thermal Equipment Heavy Fuel Oil Burner Electronic Proportional Valve
Specifications
Brand Name :
BRICTEC
Model Number :
ASNG/2
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T
Delivery Time :
60 days
Fuel type :
Oil/gas
Each burning point power :
40-70Kw
Heater power :
1200W
Installation method :
On the Kiln roof
Condition :
New
Automatic :
Yes
Method :
Burner
Processing :
Brick Firing System
Raw Material :
Clay,Soil,Mud,Fly Ash
Type :
Clay Brick Making Machine
Highlight :
Brick Making Machine Heavy Fuel Oil Burner Electronic Proportional Valve
Description

BRICTEC Thermal Equioment Heavy Oil Burner with Electronic Proportional Valve for Brick Making

Product Description

ASNG/2 burner is flexible to accommodate fuel type of both oil and gas (natural gas or LPG). It is equipped with two interfaces to support different fuel supplies with no need to change burners.Thus, fuel switching becomes very easy in this process. The burner is composed of two 1000L transfer tanks and heavy oil burning system and adopts electronic proportional valve, which can realize precise control, and make kiln reach preset temperate and keep constant. The heavy oil circulation pump is of Siemens brand, and the temperature controller is of OMRON brand.

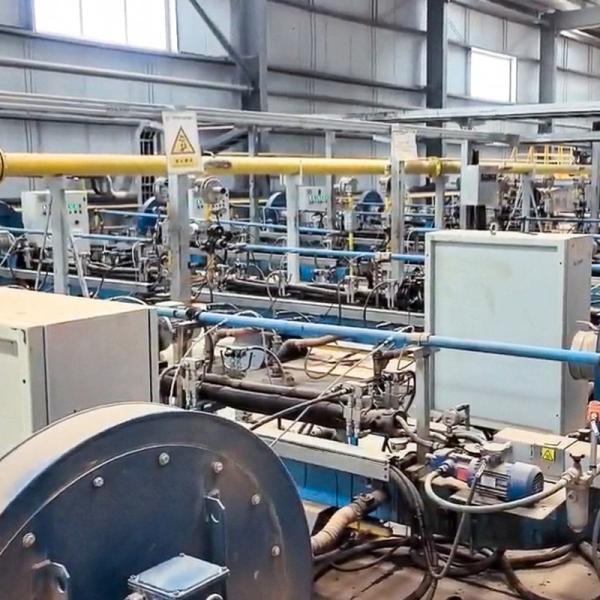

In the process of the burning system installation service, We will provide a service tank for daily use and position it next to the kiln.The function of this daily service tank is to accept the fuel coming from the main storage tank, heat it up and deliver it to the circulating pump while allowing excess fuel to flow back into the Daily service tank, maintaining continuous fuel flow and avoiding fuel flow not moving due to low temperature. All the daily service tanks are equipped with heating components, safety floaters and other accessories to ensure safety and high efficiency.

40kw - 70Kw Thermal Equipment Heavy Fuel Oil Burner Electronic Proportional Valve

40kw - 70Kw Thermal Equipment Heavy Fuel Oil Burner Electronic Proportional Valve

40kw - 70Kw Thermal Equipment Heavy Fuel Oil Burner Electronic Proportional Valve
