Wet pan mill machinery factory price with excellent quality brick making equipment

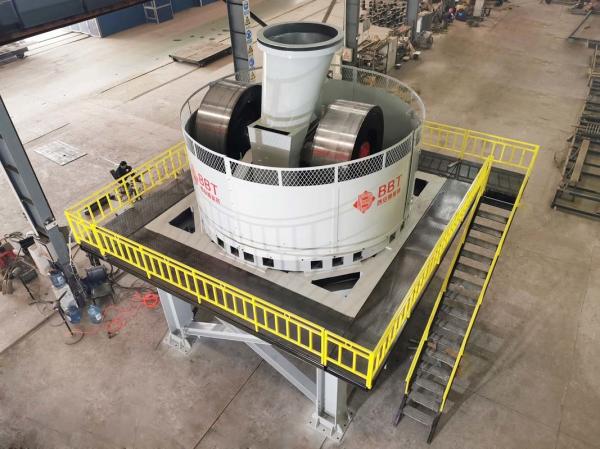

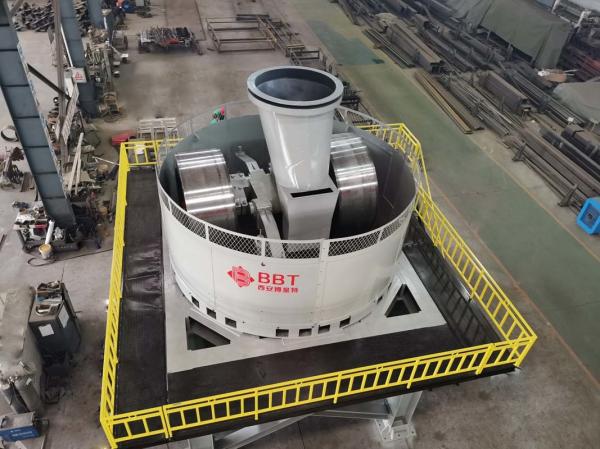

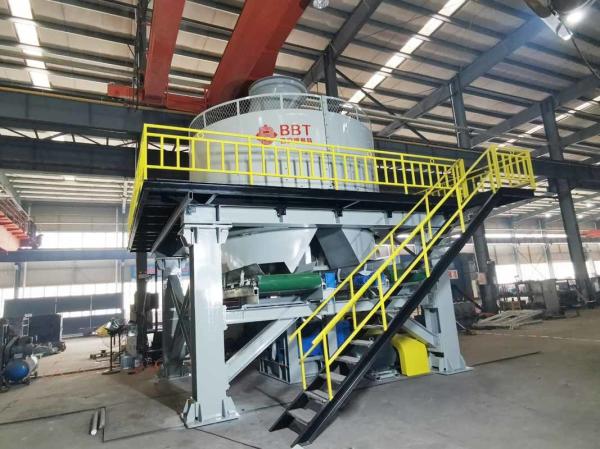

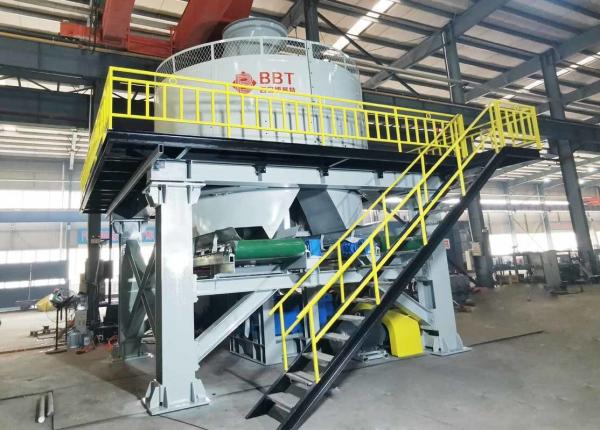

Clay brick making line equipment TWPM185 wet pan mill :

TWPM-185 wet pan mill is a new product developed by our company on the basis of absorbing the advanced experience of similar products abroad, and it occupies a leading position among similar products in China. The machine is reasonable in structure, stable in operation, low in failure rate, and easy to use and maintain. It is mainly used for raw material treatment in the production process of sintered bricks with coal gangue, fly ash, shale, clay and sludge as the main raw materials. It has the functions of crushing, grinding, kneading and mixing. After the raw materials are milled and processed by this machine, the comprehensive technological properties of the raw materials can be significantly improved, and higher quality sintered products can be produced.

Wet pan mill of technical parameters:

Wet pan mill of working principle and structural characteristics:

This series of wet pan mill is mainly composed of motor, reducer, transmission shaft part, frame part, suspension seat part, internal and external grinding wheel part, grinding disc part, scraping part and discharging belt conveyor and other parts.

The overall structure of this series of wet pan mills is compact, and the hydraulic coupling is used to realize the power transmission between the motor and the reducer. The advantage is that the starting impact is small, and the overload protection of the motor and the reducer can be realized to prolong its service life.

The roller is one of the key parts of the pan mill, so the inner and outer rolling rings of the roller are made of high-chromium cast steel. Since high chromium cast steel has good wear resistance and high material yield fatigue strength, the working life of the roll ring is improved. Similarly, the lining plate and discharge sieve plate of the pan mill are also made of high manganese alloy. The main shaft of the wheel mill is an important part for transmitting power, so in addition to selecting alloy quenched and tempered steel with better comprehensive mechanical properties, strict heat treatment process and quality inspection have been carried out. In addition, the bearings and oil seals required for all components are made of domestic high-quality products, and the whole machine is of high quality, good performance and long service life.

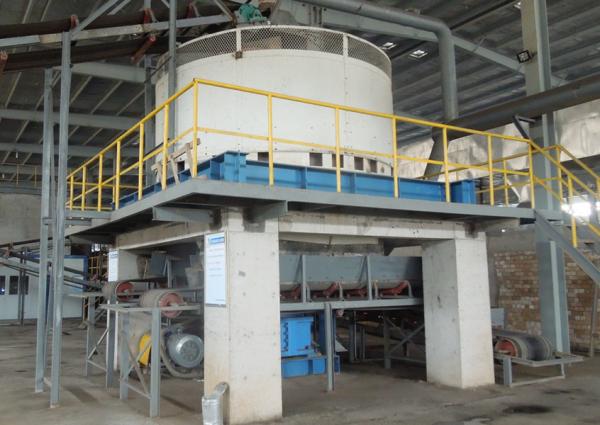

Wet pan mill in fully automatic clay brick production line
