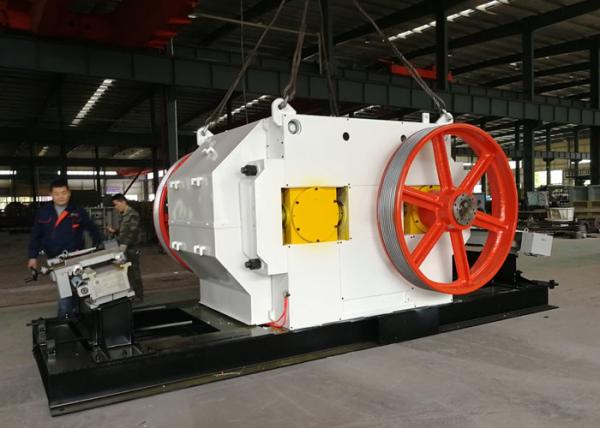

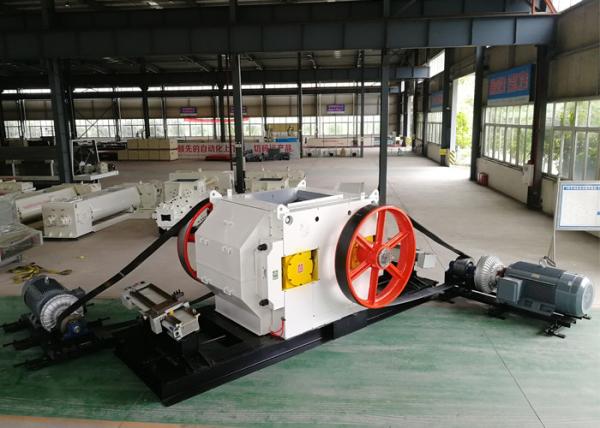

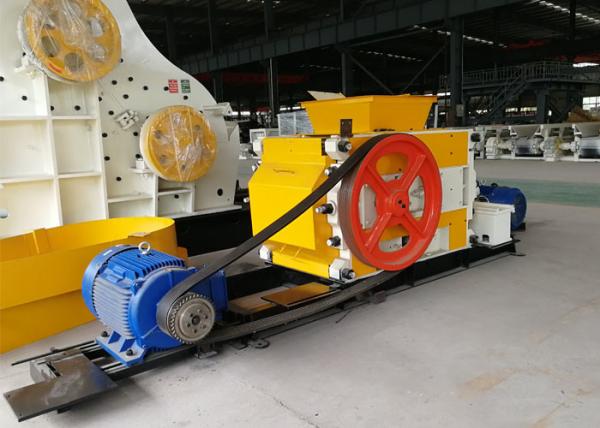

GS1210 Fine Roller Crusher/Roller Mill for Clay Brick Making to Crusher Materials to size below 3mm

The Fine Roller Crusher is one of the main equipment in the raw material processing section of brick production process.
It is suitable for fine treatment of wet and soft raw materials.

The grain size composition is obtained by crushing, thus to improve the plasticity of the brick material. Which is suitable for brick material with relative moisture content not higher than 25%.

The appropriate crushing ratio is 1:4-6, and the maximum feed size should be controlled below 20mm.

The roller clearance of the machine is less than or equal to 3mm, and the roller installation is supported by two hydraulic cylinder supports, which can bear the maximum load in the work.

The Roller Crusher is with heavy body itself, so the steel structure is firm. The side frame is a welded rigid structure, which is machined to
ensure the accuracy and shock resistance, and ensure the safe and stable operation of the equipment. When the roller is worn, the roller ring is automatically repaired by a special grinding lathe to ensure the working quality of the equipment. The grinding lathe is optional.


Technical characteristics of GS1210 Fine Roller Crusher/Roller Mill for Clay Brick Making to Crusher Materials to size below 3mm

Roller:In order to ensure a better neutral and support strength, they are supported by adjustable rolling bearing. The moving roller adopts pressure spring to add force, and the crushing pressure can be adjusted according to different raw materials. When the hard object is stuck, the spring compression will not cause damage to the roller ring.
Both sides of the fixed roller are equipped with screw adjusting devices to adjust the position after the size of the roller is reduced. The inside of the moving roller is equipped with a limit screw to ensure the adjustable roller clearance, and the operation is convenient and fast.
The roller ring and the hub adopt separate structure and are connected together by high-strength bolts to facilitate maintenance and replacement of the roller ring. Made of manganese steel, it has the characteristics of high wear resistance, high strength and easy repair.

Scraper:All adopt cylinder loading, close to the roller, hexagram mud effect is good, and easy to repair and replace the scraper. Each roll is equipped with an independent stepless speed reduction motor, which is used to drive the roll when the roll is repaired without starting the main motor drive. It is energy-saving and safe.


Technical Parameters of ​GS1210 Fine Roller Crusher/Roller Mill for Clay Brick Making to Crusher Materials to size below 3mm
