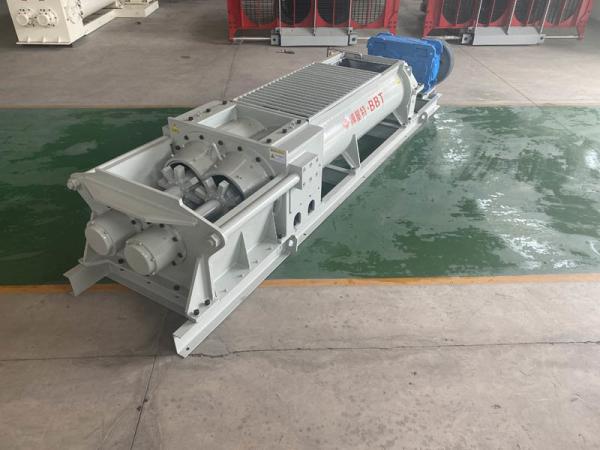

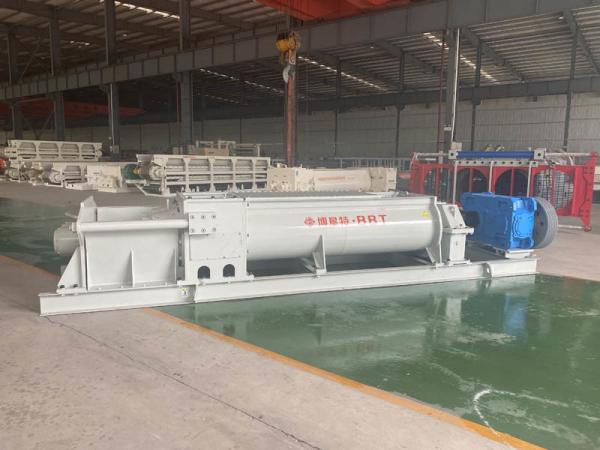

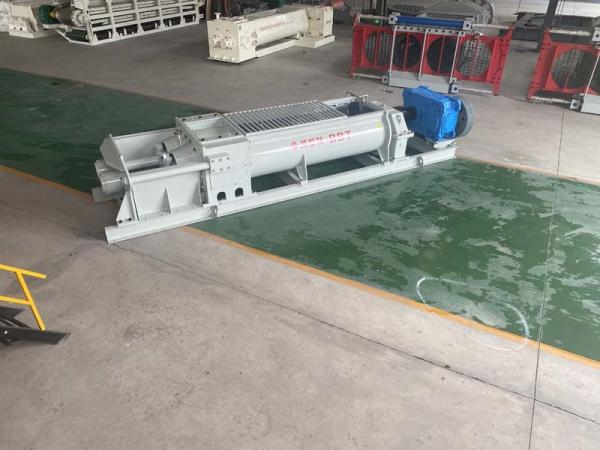

Horizontal Paddle Double Shaft Mixer 220V / 380V Customized For Raw Material
Horizontal Paddle Double Shaft Mixer 220V / 380V Customized For Raw Material
Horizontal Paddle Double Shaft Mixer 220V / 380V Customized For Raw Material
Horizontal Paddle Double Shaft Mixer 220V / 380V Customized For Raw Material
Horizontal Paddle Double Shaft Mixer 220V / 380V Customized For Raw Material
Horizontal Paddle Double Shaft Mixer 220V / 380V Customized For Raw Material
Specifications
Brand Name :
BBT
Model Number :
TWGD 3300
Place of Origin :
Chongqing, China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
15-20 days
Packaging Details :
Suitable for sea shipment by container
After-sales service provided :
Online support
Condition :
New
Product type :
horizontal paddle mixer
Warranty :
1 Year
Function :
Mixing Raw Material
Capacity :
30-40m³/h
Voltage :
220V/380V
Power(w) :
75KW
Description

2022 New Customized Double Shaft Mixer For Clay Brick Making Machine Weight 9300kg

Double shaft mixing extruder

The working principle of the double shaft mixer is that the transmission device drives the two impeller shafts with stirring blades to rotate synchronously. When the material enters the machine tank from the feeding port, the water spray device immediately sprays water to make the material change from dry state to wet state; At the same time of humidification, the wet materials are continuously stirred and mixed with each other under the action of the spiral stirring blades, and move towards the discharge port, and the qualified materials are discharged from the discharge port.



Technical Parameters

No. Model TWGD 3300
1

Production capacity

30-40 m3/h
2

Rotating speed

30 rpm
3

Host weight

 9300kg
4

Dimension

7,060×2,450×1,150 mm
5

Power

75 KW




Our service

Welcome to contact with BBT

BBT supply following machinery and project :

1. Full automatic clay brick making machinery ( belt conveyor , box feeder, roller crusher , fine grinder. double shaft mixer , wet pan mill ,brick cutter, brick extruder ,spare parts ...)

2. Brick drying system( small brick drying room, single layer brick dryer chamber , tunnel dryer, fast rapid dryer chamber )

3. Brick kiln project ( hoffman kiln, tunnel kiln )

4. Automatic brick making system ( brick setting/stacking machine, red bricks unloading machine, brick packaging machine ...)

5. Kiln firing system ( coal / gas /oil combustion system ,control system )

6. Whole brick making project design and construction .
