Auto Brick Project Clay Brick Dryer Machine Daily Output Of 100000pcs Two-Times Setting And Firing & Chamber Drying Tech

Clay brick dryer single layer drying chamber for automatic clay brick making line

clay brick dryer system - single layer drying chamber - brick loading and unloading machinery system

Single layer drying chamber:

Our single-layer drying chamber technology and advanced upper and lower frame automation systems are suitable for production lines with poor drying sensitivity indicators, such as high-content fly ash, as well as production lines where products have special shapes or shapes. The hollow heart rate is high. It can effectively avoid cracks and defects caused by the stacking of green bricks.

This drying chamber can accommodate the widest variety of raw materials and the widest variety of products, and it requires less workers and provides good drying quality. On the other hand, this kind of drying room has large investment and complicated technology.

Package size:

It can provide a complete set of technical design, construction, supervision and technical guidance for brick factories with an investment scale of 30 million, 40 million, 60 million, 80 million, 100 million, and 120 million. (All bricks are subject to Chinese standard bricks.)

Automatic Loading and Unloading System of Clay Red Brick Making Machine on-off Rack System in Single Layer Brick Dryer

The Loading and Unloading System is used for the single layer chamber drying mode. Which is used for loading green bricks on the pallet or unloading dried bricks from pallet.

The system is suitable for producing floor tiles, porous bricks and high hole rate hollow bricks with annual output of 40 million bricks below, and suitable for all kinds of raw materials.

According to the actual production requirements of customers, combined with the two time setting and firing process to provide customized, personalized automatic frame equipment, to achieve the brick factory with unmanned operation, full automation and intelligent. Which is also can meet the product diversification and ensure product quality.

Configrations of Automatic Loading and Unloading System of Clay Red Brick Making Machine on-off Rack System in Single Layer Brick Dryer:

• waste brick ejection belt bench;
• flat belt bench;
• programming belt bench;
• pallet loading machine for green bricks;
• pallete elevator and storaging station;
• finger car with mother transferring platform;
• pallet unloading machine;
• programming belt bench for dried brick;
• pallete running system;
• belt bench for storaging dried brick matrix;
• belt bench for transffering dried brick matrix to setting zone;
• robot with a special clamper;
• electrical control boards.

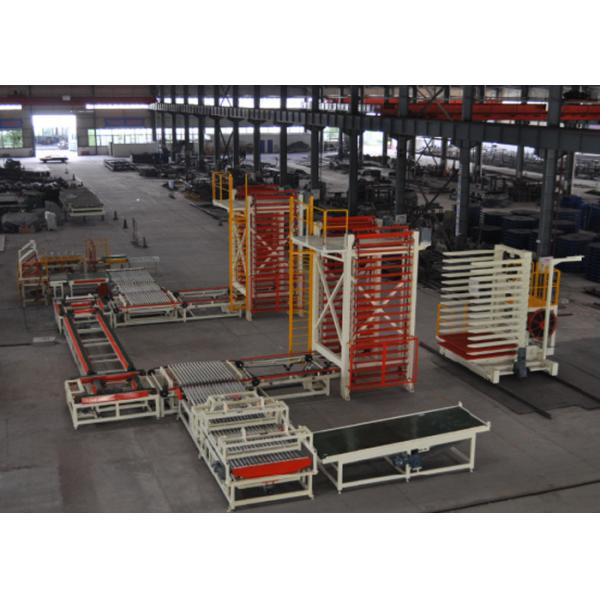

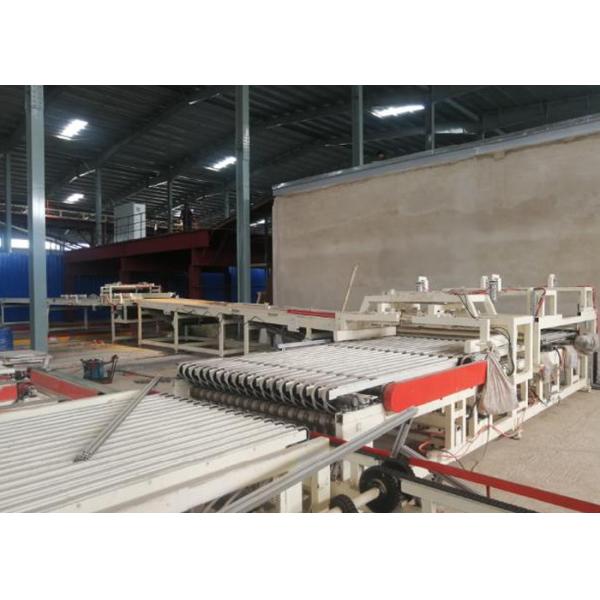

Project of Automatic Loading and Unloading System of Clay Red Brick Making Machine on-off Rack System in Single Layer Brick Dryer:
