24 Nozzles Cleanroom Air Shower SS304 For Pharmaceutical Factory With High Velocity Shower Jets
24 Nozzles Cleanroom Air Shower SS304 For Pharmaceutical Factory With High Velocity Shower Jets
24 Nozzles Cleanroom Air Shower SS304 For Pharmaceutical Factory With High Velocity Shower Jets
24 Nozzles Cleanroom Air Shower SS304 For Pharmaceutical Factory With High Velocity Shower Jets
Specifications
Brand Name :
LENGE
Model Number :
ASR - 080190
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
100 Sets per Month
Delivery Time :
15-20 Days
Packaging Details :
Wooden cases
Material :
SUS 304
Outer Size :
1400 * 2000 * 2150 MM
Inner Size :
800 * 1900 * 1950 MM
Power :
1.5 KW
Rated Air Velocity: :
25 m / s
Number of Nozzle :
24
Description

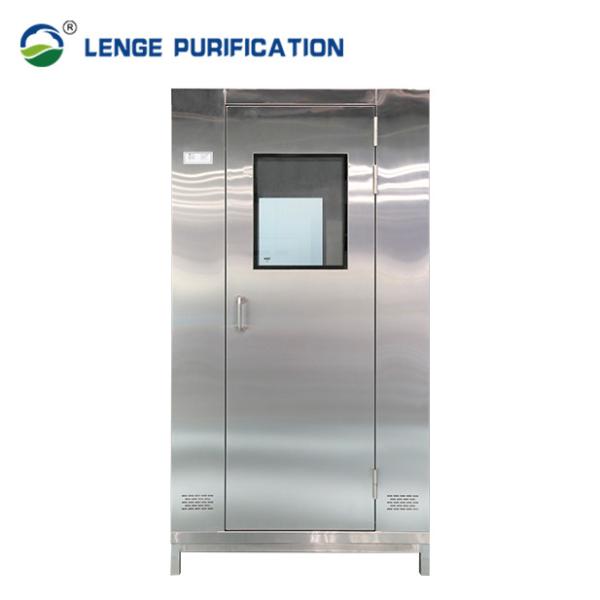

Air Shower

This air shower is used for the decontamination of personnel before entering clean rooms for avoiding contamination. Personal and materials entering or exiting the controlled environment are “scrubbed”by high velocity HEPA filtered air jets.Contaminated air is then drawn complete the base within the unit filtered and recirculated.

Air Shower Cleanroom Air Shower With Nozzle

  • High velocity shower jets in excess of 25m/s ensure efficient scrubbing action to remove particulate matter.

  • Operating modes can be programmed in the field.

  • Control panel supervises all functions.


Technical Specification

Power supply: 380V50Hz

Power: 1.5kW

Noise: 65-75dB(A)

Button: Power supply (luminous ring visible buttons) with emergency stop

Technical Specification

Cleanliness: Class D or higher

Temperature: 5°C~40°C

Product schematic diagram

24 Nozzles Cleanroom Air Shower SS304 For Pharmaceutical Factory With High Velocity Shower Jets

Standard size and parameters

Model

Overall size
W×D×H

Work area size
W×D×H

Air Volume (m/s)

Number of nozzles

HEPA size
L×W×D

ASR-080090

1200×1000×2150

800×900×1950

25

6

650×650×93×1

ASR-080090

1400×1000×2150

800×900×1950

12

650×650×93×2

ASR-080140

1400×1500×2150

800×1400×1950

18

955×650×93×2

ASR-080190

1400×2000×2150

800×1900×1950

24

650×650×93×4

ASR-080290

1400×3000×2150

800×2900×1950

36

955×650×93×4

Note: Air shower room and air shower channel not listed in the table can be made according to the customers' requirements
