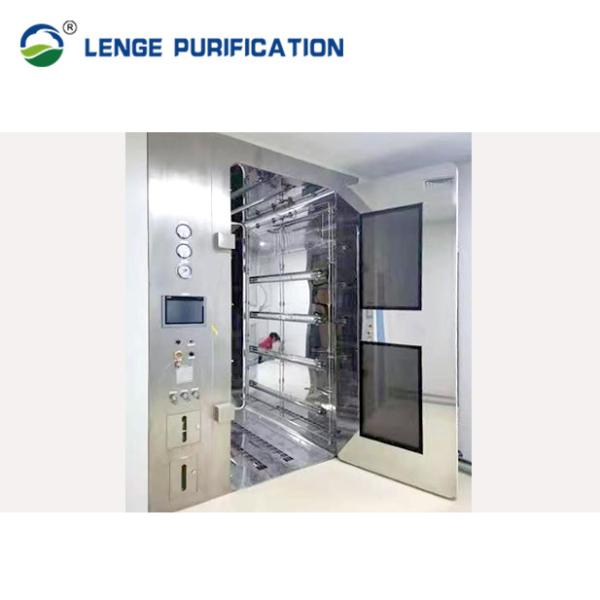

Stainless Steel VHP Sterilization Chamber Clean Room Equipment For Class

SUS 304 Stainless Steel VHP Pass Box Clean Room Equipment VHP Sterilization System

Vaporized Hydrogen Peroxide

VHP Concentration - no specific concentration value is set, the smaller the better under the condition of meeting the requirements of sterilization

Temperature and humidity -- temperature rise does not exceed 5℃, humidity does not exceed 80%

Chamber pressure -- about 10-20Pa slightly positive pressure to prevent infiltration of air in background area

The vaccine industry is generally used for delivery:

• sterile gloves and eye masks;
• Sterile flask and lid;
• Aseptic medium; Record;
• Embryo eggs;
• Fermentation tank etc.


Laboratory animal room:
cage rack or animal transfer

VHP (Vaporized Hydrogen Peroxide) Decontamination Chamber is normally used for sterilization of outer surface of any object, which is not suitable for AUTOCLAVE & compatible with HYDROGEN PEROXIDE in vapour phase.

• Reserved foundation pit, equipment internal ground and ground level
• Door body multi-point fixed, high strength, no sagging
• Split window, chamber situation can be clearly seen
• If there is a dry/wet heat sterilization chamberet around, color steel plate isolation is recommended.

Operation Principle

Chamber air tightness test:JG/T 382-2012“Pass box”( - 500 Pa pressure maintaining 20 min,≤ - 250 Pa)
HEPA leak detection: in situ scanning leak detection can be done for high efficiency of air supply and exhaust
Cleanliness: static class A

It is equipped with PAO dust outlet and upstream concentration detection outlet, which can realize efficient scanning leak detection of air inlet.

Product Description

VHP Decontamination Chamber is designed for two different zone of area, for transferring of product from lower classified zone to higher classified zone (Non– sterile area to Sterile area), without effecting the balancing of respective zone, containment free product transfer to higher classified zone.

Characteristic & Features

• Sterilization process <120min. to realize multiple sterilization operations one day.

• Emergency Stop.

• Decomposition filter can effectively reduce the concentration of VHP remain Reduce the impact on environment and personnel.

• Very low hydrogen peroxide consumption.

Technical Parameters & Specifications

Engineering Drawing

Sterilization Process & Vaporizer Schematic Diagram

Validation Documents

• FDS
• DQ
• FAT
• I&OQ
• SAT
• PQ
• ……
