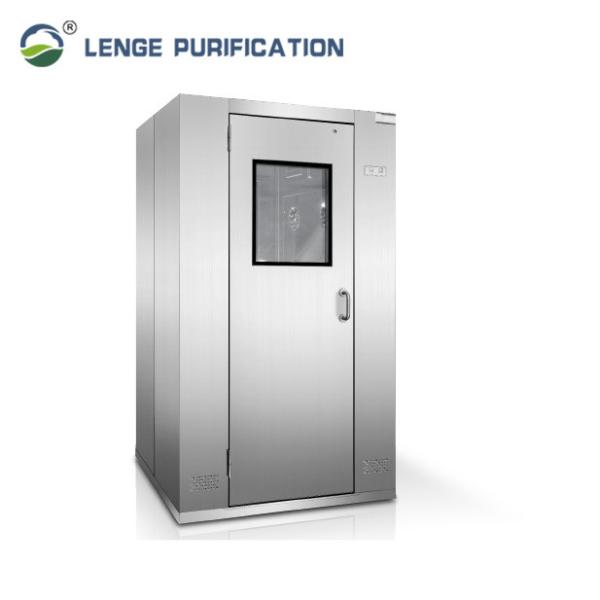

1400×1000×2150 Class C Mist Air Shower In Pharmaceutical Industry
1400×1000×2150 Class C Mist Air Shower In Pharmaceutical Industry
1400×1000×2150 Class C Mist Air Shower In Pharmaceutical Industry
1400×1000×2150 Class C Mist Air Shower In Pharmaceutical Industry
1400×1000×2150 Class C Mist Air Shower In Pharmaceutical Industry
1400×1000×2150 Class C Mist Air Shower In Pharmaceutical Industry
Specifications
Brand Name :
LENGE
Model Number :
ASR - 080140
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
150 Sets per Month
Delivery Time :
15-20 Days
Packaging Details :
Wooden cases
Prduct Name :
Mist Air Shower
Material :
SUS 304/316L
HEPA :
H14, > 99.99%
Size :
1400×1000×2150
Rated Air Velocity :
25 m / s
Noise :
65 - 75 DB
Cleanliness Class :
Class D or higher
Warranty :
1 Year
Description

1400×1000×2150 Class C Mist Air Shower In Pharmaceutical Industry

  • High velocity shower jets in excess of 25m/s ensure efficient scrubbing action to remove particulate matter.

  • Operating modes can be programmed in the field.

Technical Specification

Power supply: 380V50Hz

Power: 1.5kW

Noise: 65-75dB(A)

Button: Power supply (luminous ring visible buttons) with emergency stop

Mist Air Shower

  • Mist air shower will form a low flow of wet spray, can contaminate the work clothes of the raw material powder particles coating, continue to condense into large material particles.

  • The high speed airflow around the large particle material will prevent the dust particles from contacting the droplets, while the small droplets of the micro particles are easy to condense the dust particles.

  • Moisten all surfaces and form beads on clothing. As time goes on, the water drops gradually increase until they roll off the clothes.

Technical Specification

Cleanliness: Class D or higher

Temperature: 5°C~40°C

Product schematic diagram

1400×1000×2150 Class C Mist Air Shower In Pharmaceutical Industry

Standard size and parameters

Model

Overall size
W×D×H

Work area size
W×D×H

Air Volume (m/s)

Number of nozzles

HEPA size
L×W×D

ASR-080090

1200×1000×2150

800×900×1950

25

6

650×650×93×1

ASR-080090

1400×1000×2150

800×900×1950

12

650×650×93×2

ASR-080140

1400×1500×2150

800×1400×1950

18

955×650×93×2

ASR-080190

1400×2000×2150

800×1900×1950

24

650×650×93×4

ASR-080290

1400×3000×2150

800×2900×1950

36

955×650×93×4

Note: Air shower room and air shower channel not listed in the table can be made according to the customers' requirements

1400×1000×2150 Class C Mist Air Shower In Pharmaceutical Industry

  1. There are 10 automatic welding machines, and 2 laser welding machines.
  2. Full welding instead of spot welding.
  3. Motor brand: Rosenberg, EBM, etc.
  4. PLC brand: Siemens, Schneider etc.
  5. Equipment verification support.
  • 1400×1000×2150 Class C Mist Air Shower In Pharmaceutical Industry​With many of you, we have a long history: a reliable foundation on which to build our common future. That experience gives us the necessary confidence to do the right thing at the right time and equips each of us to meet the challenges of tomorrow.
    We will continue to focus on partnership and proximity to our customers, far into the future. For innovative solutions that help to make industrial processes more efficient and sustainable to improve the quality of products.
