System Control Fan Filter Unit FFU Excellent Performance Corrosion Resistance
System Control Fan Filter Unit FFU Excellent Performance Corrosion Resistance
System Control Fan Filter Unit FFU Excellent Performance Corrosion Resistance
System Control Fan Filter Unit FFU Excellent Performance Corrosion Resistance
Specifications
Brand Name :
indair
Model Number :
ID-FFU-03
Certification :
CE,UL,ISO
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Supply Ability :
1000 UNIT PER DAY
Packaging Details :
CARTON WITH PLASTIC BAG
Frame :
SUS
motor :
EBM AC OR DC
noise :
42dB
HEPA Size :
1170×570×70
Size :
1175×575×280
HEPA efficiency :
99.995%（@0.3μm）/99.9995%（@0.12μm）
Description

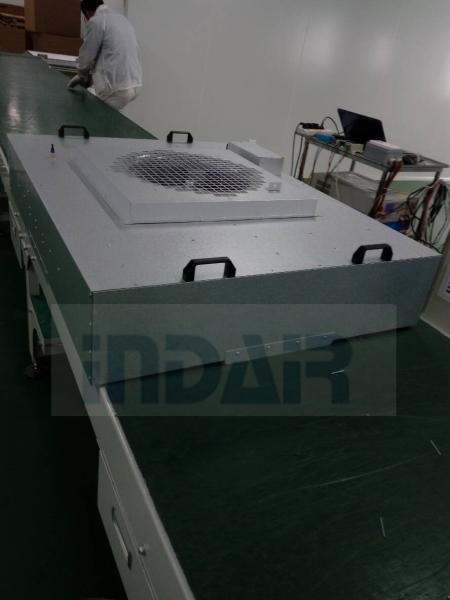

Aluminium zinc plate 4*4 feet Fan Filter Unit FFU with 99.995% HEPA Filter with EBM AC motor

Features:
1. Wind speed: 0.35m/s, 0.45m/s;
2. Noise:49-63dBA;
3. Power: 220V, 50Hz;
4. Highly efficient filter (filtration efficiency is 99.99%);
5. Material: armor plate, stainless steel;
6. Adjustable speeds;
7. Excellent performance ;
8. Using a highly-efficient centrifugal air blower;
9. Durable, low noise, low vibration;
10. Free maintenance for one year

Description:
Fan filter unit (FFU) is air cleaning equipment to supply purified air to the clean room for manufacturing semiconductor, liquid crystal, etc. The installation space is the system ceiling grid. For a large clean room, the number of required FFU is from several hundreds to several thousands.

Concept of FFU development:
1. To reduce running cost by saving energy;
2. To reduce construction cost and term by thin, light and compact structure;
3. To reduce initial cost by total design of clean room including noise spec. etc;
4. We development FFU units basing upon the above concept to meet all the requirements for constructing, operating and maintaining clean rooms.

Advantage of clean room with FFU:
1. The construction period can be shortened;
2. The degree of cleanness from class 10 to class 1000 can be set and the degree of cleanness can be set at each area;
3. Because the back in the ceiling is a low-pressure, the potential of the leakage is low;
4. Bay method or through the wall method is possible by the arrangement of layout of FFU;
5. The velocity of the air flow can be set at each area;
6. Flexible increase or change of the clean room is possible by the arrangement of FFU.

Part No. EFU0612-ACM-H14 EFU1212-ACM-H14
size:W×L×H(mm) 1220×610×180 1220×1220×180
filter size:W×L×H(mm) 1220×610×50 1220×1220×50
speed(m/s) 0.45 0.45
Power(W) 160 290
weight(Kg) 27 45
Noise:dB(A) 56 58
